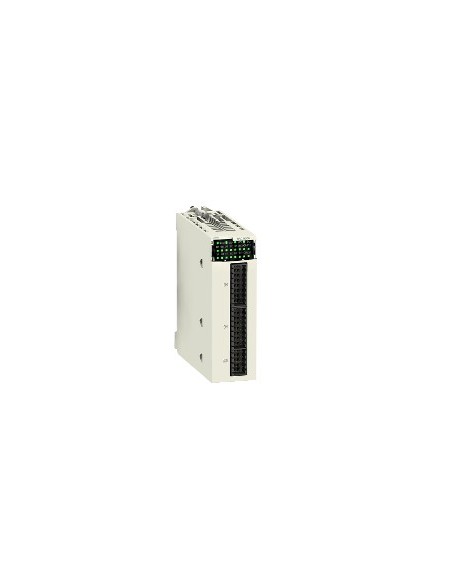

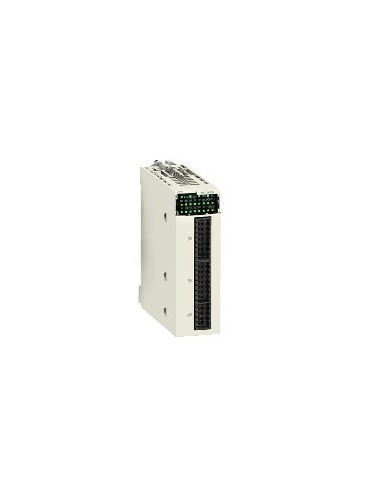

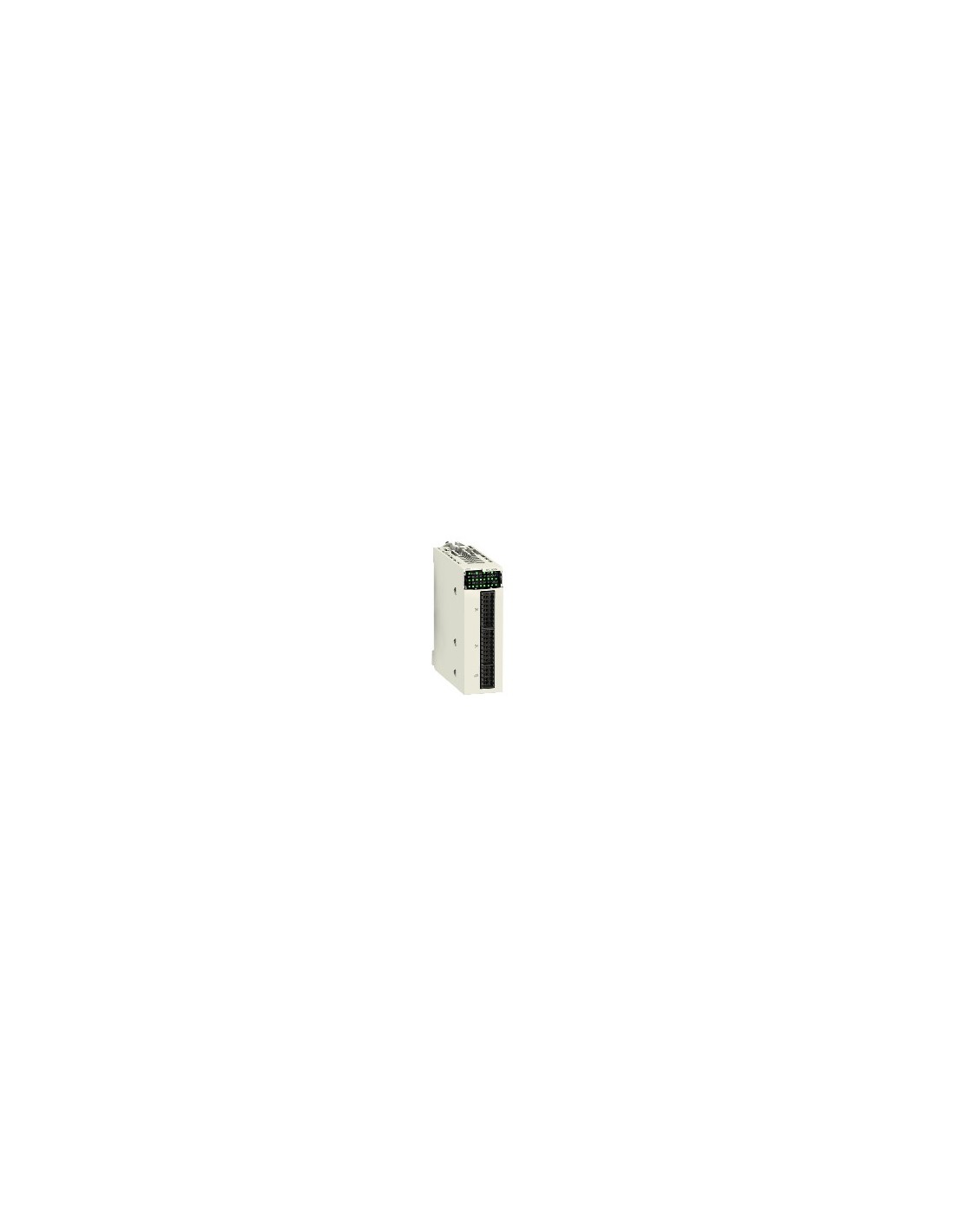

2-channel counting module 60 kHz

Counting module for the Modicon M340 automatic platform, designed to manage two input channels with a maximum counting frequency of up to 60 kHz. Compatible with 2 or 3 cable proximity sensors and incremental encoders. The outputs are push-pull type with 24 V DC voltage and positive or negative configurable logic.

Technical characteristics

• Number of channels: 2
• Maximum counting frequency: 60000 Hz
• Number of Entries: 6
• Input voltage: 24 V DC type 3
• Number of exits: 2
• Output voltage: 24 V DC
• Counter functions: Counting (module), loop, width modulation, countdown, period measurement, relationship, events, 32-bit counter, frequency meter
• Cycle time: 1 ms
• Overload protection: Integrated
• Short circuit protection: 1.5 A integrated
• Inrush current: 2 mA to 11 V
• Voltage status 1 guaranteed: 11...30 V
• Current status 1 guaranteed: >= 6 mA
• Voltage status 0 guaranteed: < 5 V
• Current status 0 guaranteed: <= 1.5 mA
• Logic of discrete output: Configurable (positive or negative)
• Maximum output intensity: 2 A per module (0.5 A per output)
• Maximum load current: 1 A per module (0.5 A per output)
• Maximum voltage drop: <3 V in state 1
• Overlay time: 0.2 ms
• Connections: 1 connector of 10 pines (auxiliary input and sensor power), 2 connectors of 16 pines (meter sensors 0 and 1)
• Current consumption: 200 mA in 3.3 V DC bar, 40 mA in 24 V DC frame, 80 mA in 24 V DC sensor
• Operating ambient temperature: 0...60 °C
• Relative humidity: 10...95 % without condensation
• Degree of IP protection: IP20
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Protection treatment: TC
• Sustainable supply status: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive (out-of-scope) compliance
• No mercury: Yes
• RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: To be discarded by specific system in the EU
