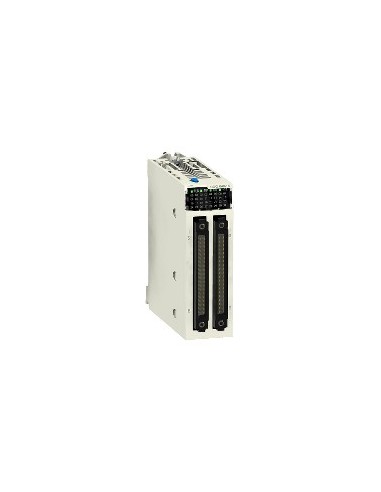

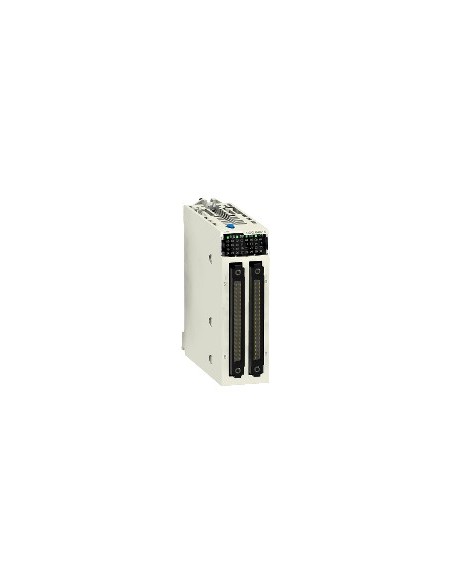

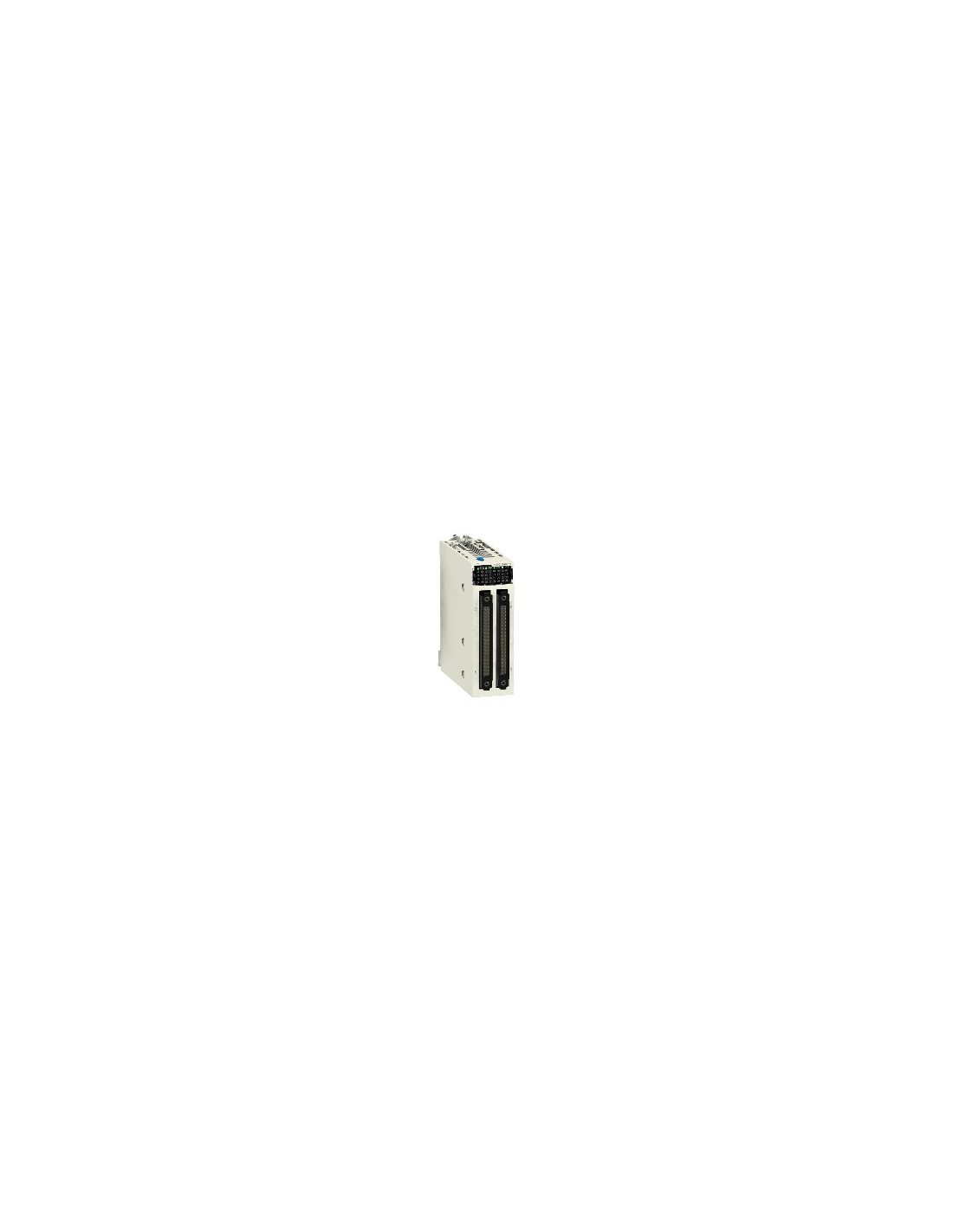

64-Channel Discrete Output Module 24 V DC

64-channel discrete output module, solid-state type, positive logic, designed for industrial automation systems compliant with EN/IEC 61131-2. Operates at output voltage of 24 V DC (19–30 V DC), output current per channel 0.1 A, response time 1.2 ms. Features integrated protection against short circuits, overloads, overvoltages, and reverse polarity. Suitable for industrial environments with operating temperatures from 0 to 60 °C and storage temperatures from -40 to 85 °C. IP20 protection rating.

Technical Specifications

• Number of discrete outputs: 64 (in accordance with EN/IEC 61131-2)
• Digital output type: Solid-state
• Discrete output logic: Positive logic
• Output voltage: 24 V DC (19...30 V DC)
• Digital output current: 0.1 A
• Mounting: 0.125 A
• Current per module: 6.4 A
• Insulation resistance: > 10 MΩ at 500 V DC
• Power dissipation: 6.85 W
• Output response time: 1.2 ms
• Output parallelization: Yes, up to 3 max.
• Typical current consumption: 160 mA at 3.3 V DC
• MTBF: 159924 h
• Protection: Reverse polarity, short circuits, overloads, overvoltage
• Overload protection: Current limiter and electronic circuit breaker (0.125 A < Id < 0.185 A)
• Output overvoltage protection: Transil diode
• Short-circuit protection: External 2 A fuse
• Reverse polarity protection: Built-in reverse diode
• Threshold detection voltage: > 18 V DC in state 0
• Maximum tungsten load: 1.2 W
• Switching frequency: 0.5/LI² Hz
• Maximum overload duration: 15 ms
• Load ohmic impedance: >= 220 Ω
• Status LED: 1 green LED per channel (RUN, diagnostics), 1 red LED per channel (ERR, I/O)
• Weight: 0.15 kg
• Protection rating: IP20
• Dielectric strength: 1500 V AC (1 min), output to ground; 1500 V AC (1 min), output to internal logic; 500 V DC (1 min), between channel groups
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Storage ambient temperature: -40…85 °C
• Operating ambient temperature: 0…60 °C
• Relative humidity: 5…95 % at 55 °C without condensation
• Maximum operating altitude: 0...2000 m, 2000...5000 m with
• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
• Green Premium product
• Compliant with REACh without SVHC
• EU RoHS Directive: Proactive compliance (outside scope)
• Mercury-free
• RoHS exemptions: Yes
• China RoHS standard: X
• WEEE: Disposal according to specific system in the EU
