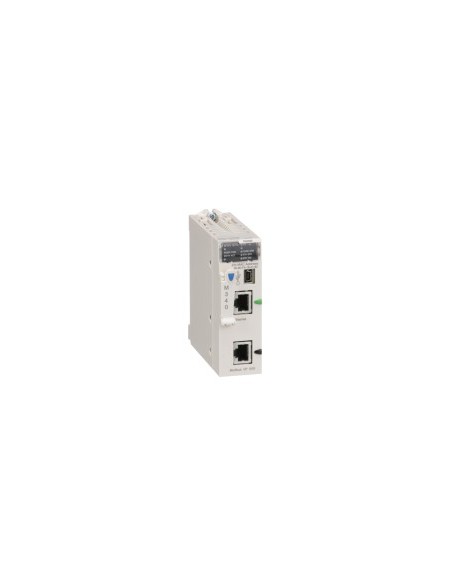

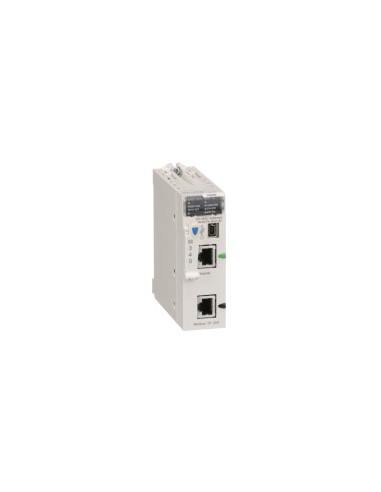

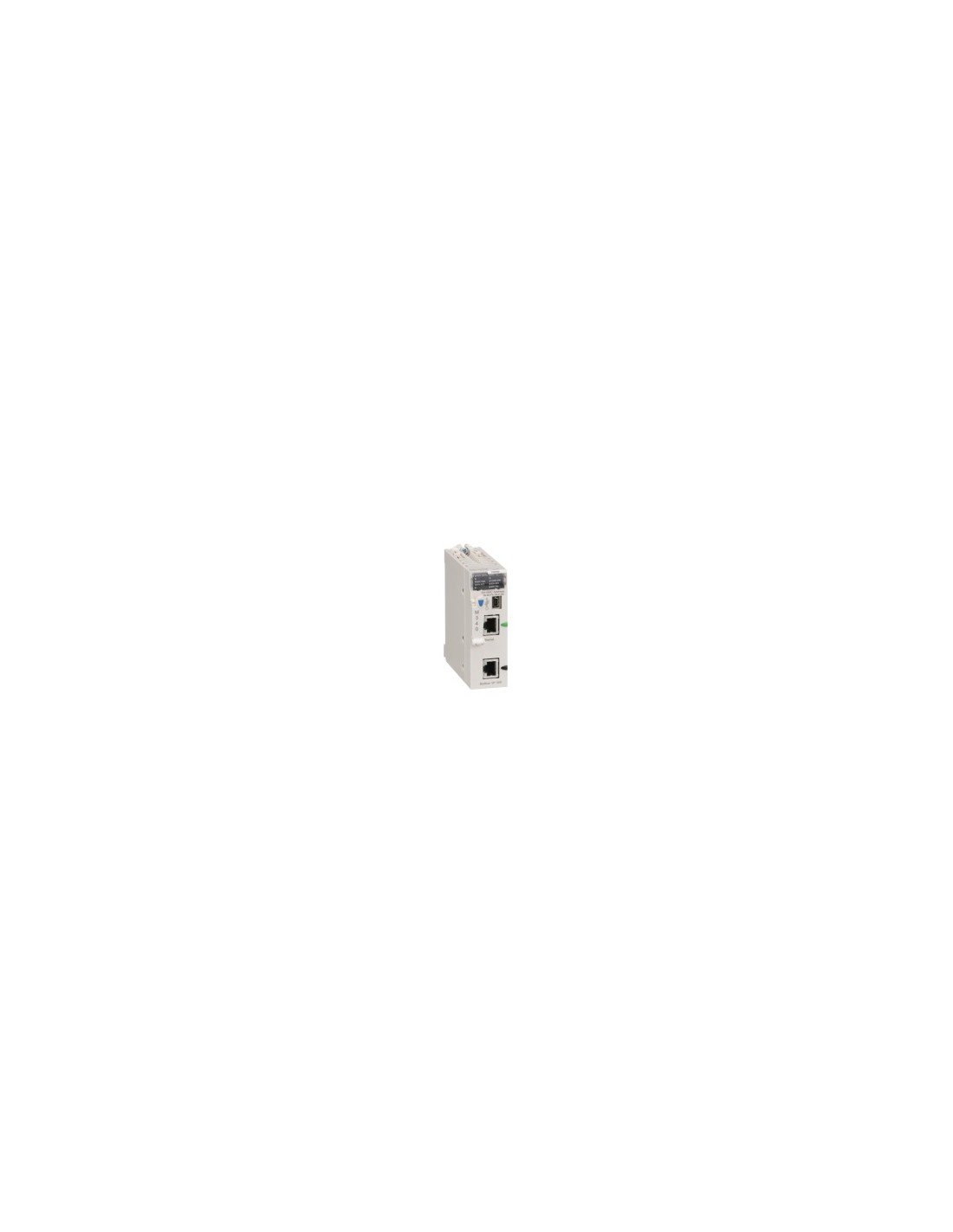

Module processor of the Modicon M340 platform, designed for industrial applications with support for transparent communication CANopen. Compatible with up to 4 racks and 11 slots, it offers capacity for 1024 digital inputs/outputs in multitrack configuration and 256 analog inputs/outputs. Includes 36 specific application channels and support for monitoring using Modbus diagnostic counters and Modbus event counters.
Technical characteristics
- Number of racks: 4
- Number of slots: 11
- Digital I/O capacity: 1024 (multitrack), 704 (simple rack)
- Analog I/O capacity: 256 (multitrack), 66 (simple rack)
- Number of specific application channels: 36
- Monitoring: Modbus diagnostic counters, Modbus event counters
- Control channel: Programmable returns
- Integrated connections: Serial Link without RJ45 insulation (character mode, RS232C, RS485), USB port at 12 Mbit/s, Ethernet TCP/IP RJ45 (10BASE-T/100BASE-TX)
- Number of devices per segment: up to 32 (character mode and Modbus)
- Bus length: up to 10 m (not isolated), up to 1000 m (isolated), up to 15 m (point to point)
- Number of addresses: 0–248 (character mode and Modbus)
- Control parameter: CRC (RTU Modbus), LRC (ASCII and character mode)
- Memory: Memory board BMXRMS008MP, internal RAM 4096 kB, internal RAM data 3584 kB, symbols and program constants
- Application structure: 1 cyclic master task, 1 periodic fast task, no auxiliary task, 64 event tasks
- Performance time per instruction: 0.12 μs (boolean), 0.17 μs (double words), 0.25 μs (simple words), 1.16 μs (floating comma)
- System overload: 0.13 ms (quick task), 0.7 ms (main task)
- Current consumption: 95 mA to 24 V DC
- Power supply: Internal through the rack
- Status LED: ETH ACT, RUN, ETH STS, ETH 100, E/S, CARD ERR, ERR, BE COM
- Weight: 0.205 kg
- Operating temperature: 0–60 °C
- Relative humidity: 10–95 % not condensed
- Degree of protection: IP20
- Protection treatment: TC
- Certifications: CE, UL, CSA, RCM, Merchant Navy Generator
- Standards: EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3
- Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
- Environmental characteristics: Dangerous Places, Class I Division 2
- Sustainable supply status: Product Green Premium
- REACH: No SVHC
- RoHS EU: Proactive (out-of-scope) compliance
- No mercury: Yes
- RoHS exemptions: Yes
- RoHS China Regulations: X
- WEEE: Waste according to specific system in EU, not in garbage container
