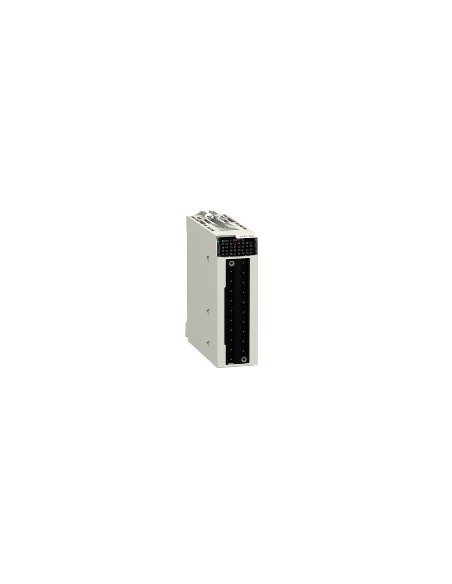

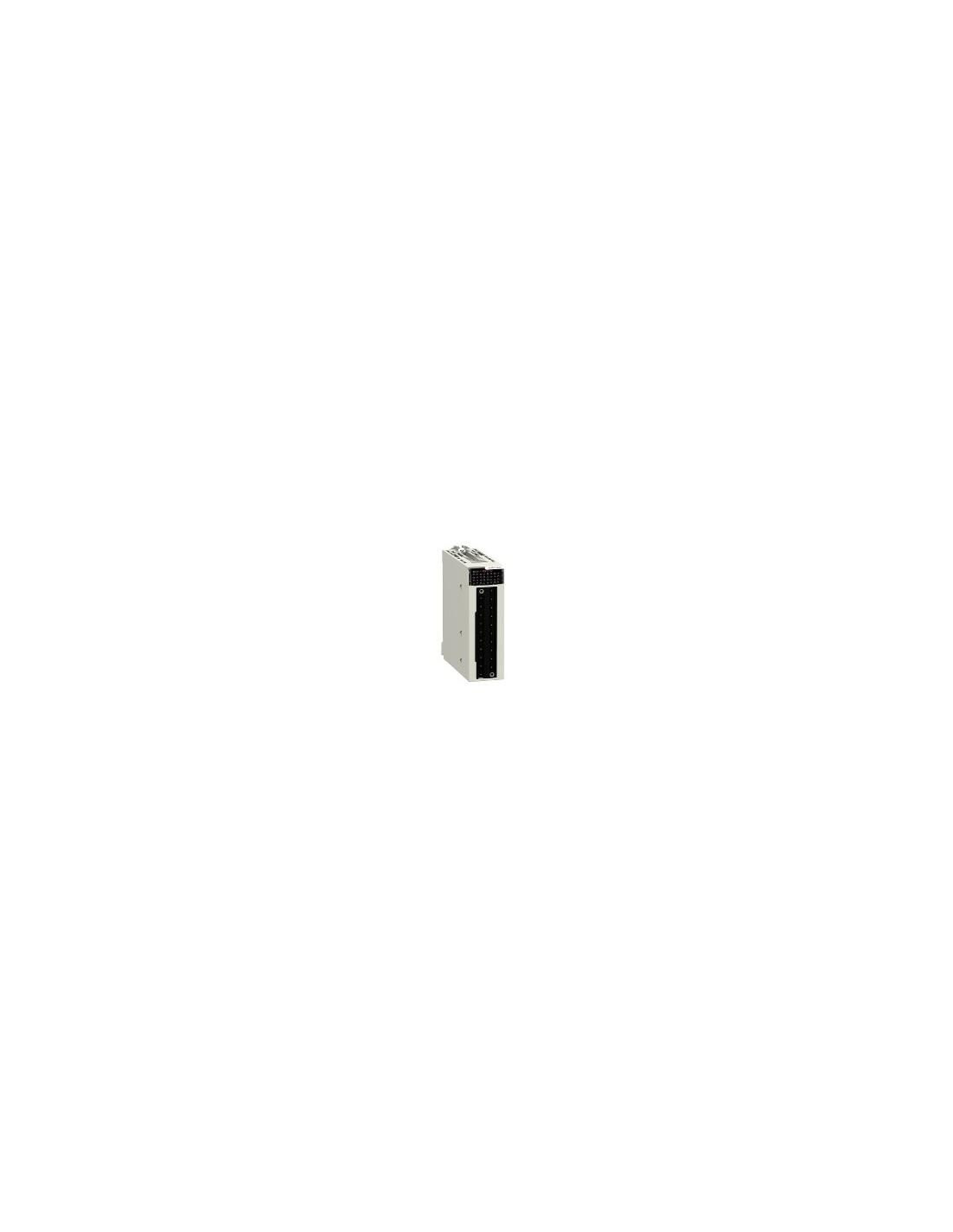

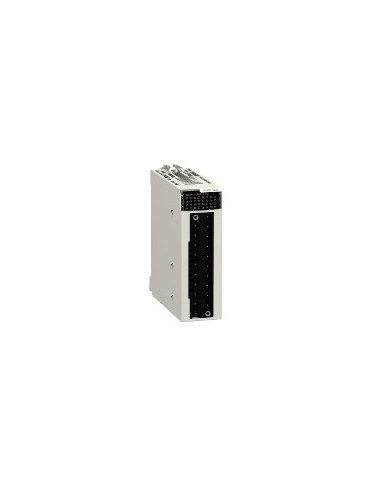

Mixed analog I/O module 4 inputs 2 outputs

Mixed analog I/O module for automation systems, compatible with the Modicon X80 range. Designed to integrate up to 4 analog inputs and 2 analog outputs, it allows the connection of current signals (0...20 mA, 4...20 mA) and voltage (0...5 V, 0...10 V, 1..5 V, ±10 V). It does not include insulation between inputs and outputs.

Technical characteristics

• Number of analog inputs: 4
• Analogue input type: Current 0...20 mA, Current 4...20 mA, Voltage ±10 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1..5 V
• Analog input resolution: 12 bits (0...20 mA, 0...5 V, 1..5 V, 4...20 mA), 13 bits (0...10 V), 14 bits (±10 V)
• Overload allowed in inputs: ±30 mA (0...20 mA), ±30 mA (4...20 mA), ±30 V (±10 V, 0...10 V, 0...5 V, 1..5 V)
• Analogue output resolution: 11 bits (0...20 mA, 4...20 mA), 12 bits (±10 V)
• Conversion time: ≤ 2 ms
• Measurement errors: 0.25% of the complete scale (±10 V, 0...10 V, 0...5 V, 1..5 V, 0...20 mA, 4...20 mA), 0.35% for 0...20 mA and 4...20 mA
• Operating temperature: 0...60 °C
• Storage temperature: -40...85 °C
• Degree of protection: IP20
• Energy consumption: 2.6 W (24 V DC typical), 0.35 W (3.3 V DC typical)
• Weight: 0.155 kg
• Connection: 20 tracks, 1 connector
• LEDs: RUN (green), Channel Diagnosis (green), ERR (red), I/O (red)
• Electromagnetic compatibility: Directive 2014/30/EU
• Low Voltage Directive: 2014/35/EU
• Certifications: CE, RCM, CSA, UL, Merchant Navy generator
• According to REACh without SVCC: Yes
• No mercury: Yes
• EU RoHS Directive: Proactive (out-of-scope) compliance
