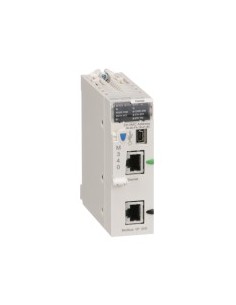

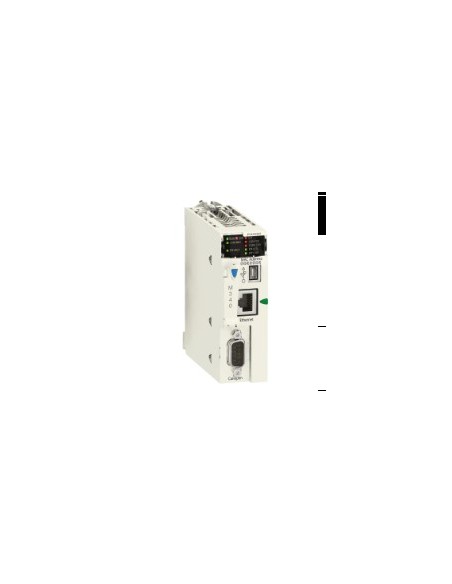

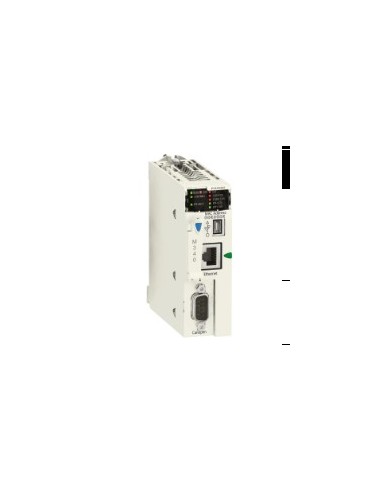

Modicon M340 platform processor module with capacity for 1024 digital I/O and 256 analog I/O in multi-track configuration, compatible with CANopen Transparent Ready communication. Designed for industrial applications requiring direct integration into automation networks using CANopen master bus and TCP/IP Ethernet. It supports up to 4 racks and 11 slots, with standalone CANopen axis motion control and 36 specific application channels.
Technical characteristics
- Number of racks: 4
- Number of slots: 11
- Digital I/O capacity: 1024 I/O (multitrack configuration), 704 I/O (simple rack configuration)
- Analogue I/O capacity: 256 I/O (multi-track configuration), 66 I/O (simple rack configuration)
- Number of specific application channels: 36
- Control channel: Programmable returns
- Movement control: Independent axis CANopen
- Integrated connection: USB port 12 Mbit/s, CANopen master bus SUB-D 9, Ethernet TCP/IP RJ45
- Transmission mode: 2 armoured plaited pairs (20 kbit/s to 1 Mbit/s), 1 plaited pair (10/100 Mbit/s)
- Communication Module Processor: 2 Ethernet Communication Module, 4 AS-Interface Module
- Communication services: Network management (NMT), PDO, SDO, special functions (SYNC, EMCY, TIME), bandwidth management, data editor, TCP messaging, Modbus, Rack Viewer, SNMP
- Ethernet port: 10BASE-T/100BASE-TX
- Transmission speed: 1 Mbit/s (0–20 m), 125 kbit/s (0–500 m), 20 kbit/s (0–2500 m), 250 kbit/s (0–250 m), 50 kbit/s (0–1000 m), 500 kbit/s (0–100 m), 800 kbit/s (0–40 m)
- Bus type: CANopen M20 DS 301 V4.02, DS 303-2, DS 405, devices linked by chaining or CSMA/CA connections
- Number of slaves: 63 CANopen
- Number of devices per segment: 0–16, 0–32, 0–64 (up to <160 m)
- Memory: Memory cartridge BMXRMS008MP, internal RAM 4096 kB, internal RAM data 3584 kB, symbols and program constants
- Maximum size of object areas: 256 kB non-localized internal data
- Standard object area size: 1024%MWi, 256%KWi, 512 %My internal localized bits
- Application structure: 1 cyclical/periodic master task, 1 periodic fast task, no auxiliary task, 64 event tasks
- Performance time per instruction: 0.12 μs (boolean), 0.17 μs (double words), 0.25 μs (simple words), 1.16 μs (floating comma)
- Number of instructions per ms: 6.4 Kinst/ms (65% Boolean + 35% Fixed arithmetic), 8.1 Kinst/ms (100% Boolean)
- System overload: 0.13 ms (quick task), 0.7 ms (main task)
- Current consumption: 135 mA to 24 V DC
- Power supply: Internal power supply via rack
- Status LED: ETH ACT, CAN RUN, RUN, ETH STS, ETH 100 (green), E/S, CAN ERR, CARD ERR, ERR (red), BE COM (yellow)
- Weight: 0.215 kg
- Operating ambient temperature: 0–60 °C
- Relative humidity: 10–95 % not condensed
- Degree of IP protection: IP20
- Protection treatment: TC
- Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
- Certifications: CE, UL, CSA, RCM, Merchant Navy Generator
- Standards: EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3
- Environmental characteristics: Dangerous places class I division 2
- Sustainable supply status: Product Green Premium
- REACH: It does not contain SVCH, as it does not contain SVCH
- RoHS EU: Proactive (out-of-scope) mercury-free compliance, exemptions applied
- RoHS China: X
- WEEE: To be discarded according to specific EU collection system
