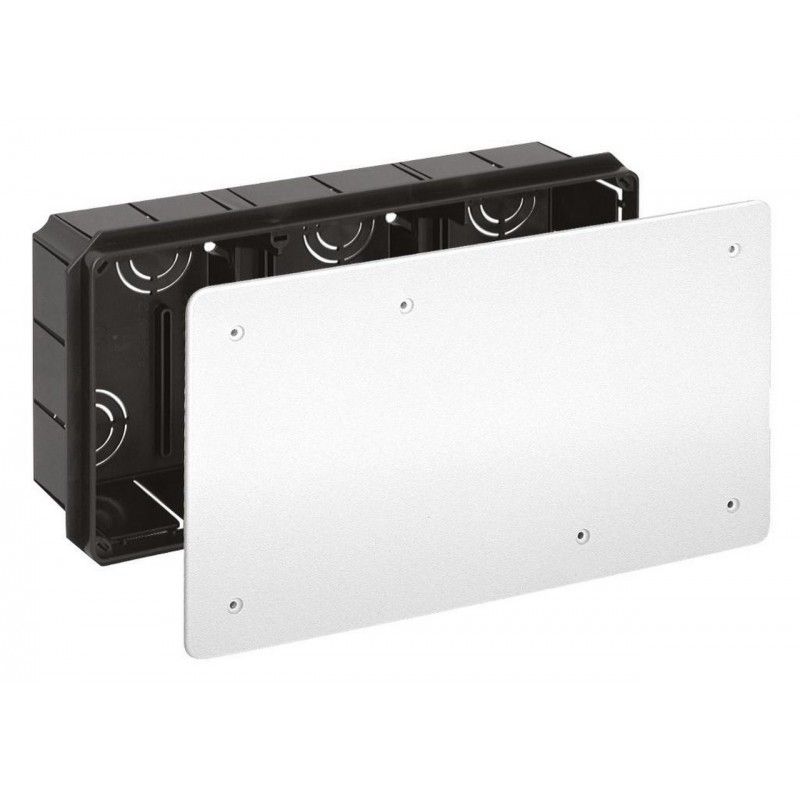

Caja 300x160x70 tapa con 6 tornillos SOLERA 5530
Caja 300x160x70 tapa con 6 tornillos SOLERA 5530

Box 300x160x70 lid with 6 screws SOLERA 5530

SOLERA 5530
Available
€7.99
VAT included
Junction and register box. For recessed installation. With spacers (European type). 300x160x70. 14 entries for Ø32 tube and 10 entries for Ø40 tube. Cover with screws. 2 partitions (3 compartments). Built according to the UNE EN 60670 Standard. Halogen-free thermoplastic material. Enclosures for recessed installation in solid walls and solid non-combustible ceilings. Temperature range during installation: -5 ºC to +60 ºC. Maximum temperature during construction of the work: +60 ºC. Fire resistance (incandescent wire test: 650 ºC), according to UNE EN 60695 Standard. Ball pressure test: 70ºC.
56 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Product Details

High
160
Width
70
EAN
8423220011984
Manufacturer
Solera
Weight (kg)
0
Reference
SOLERA 5530
Type of installation
Flush-mounted
GPSR Safety warning
No
GPSR Manufacturer information
SOLERA / Spain / Carrer de Pere IV, 454, 08020 Barcelona, España / [email protected] / +34 933069490
GPSR EU responsible person
SOLERA / Spain / Carrer de Pere IV, 454, 08020 Barcelona, España / [email protected] / +34 933069490
GPSR e-mail manufacturer
[email protected]
