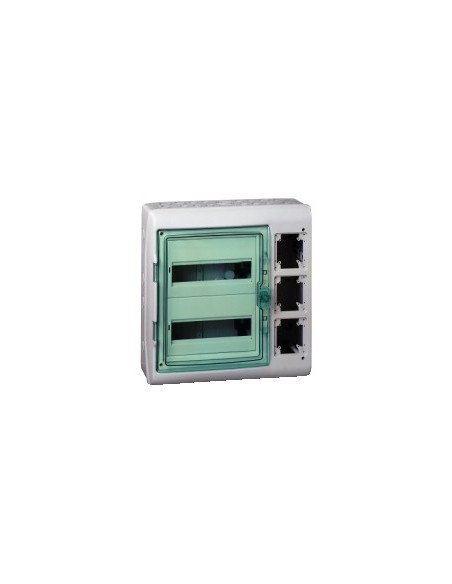

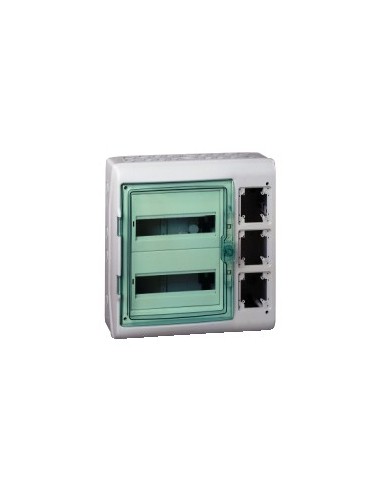

Kaedra Waterproof Enclosure 448 x 460 mm 24 Modules
Kaedra Waterproof Enclosure 448 x 460 mm 24 Modules

Kaedra Waterproof Enclosure 448 x 460 mm 24 Modules

Available In stock 10 Items Reference IMPO 13971M
€138.12
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP65

Kaedra watertight chest, modular design with 24 18 mm modules distributed in 2 rows, supports 90 A nominal current, with 3 interface openings, IP65 and IK09 protection grade, made of self-extinguishing polymer, suitable for residential environments and small businesses, with UV resistance class 3 and operation between -25 and 60 °C.

Description

Kaedra multipurpose 448 x 460 mm chest with 24 18 mm modules distributed in 2 horizontal rows, designed for modular installations with 3 aperture interface. Its self-extinguishing polymer structure offers double insulation (Class II) and IP65 protection with IK09 degree of protection, ensuring mechanical resistance and sealing.

Technical characteristics

  • Width: 448 mm
  • Height: 460 mm
  • Depth: 160 mm
  • Base size: 91 x 100 mm
  • Total number of 18 mm modules: 24
  • Number of modules per row: 12
  • Number of horizontal rows: 2
  • 9 mm steps: 24
  • Number of interface openings: 3
  • Number of terminal blocks: 1
  • Block clamping capacity: 22 ledges
  • Nominal current [In]: 90 A
  • Rail type: DIN
  • Number of dies PG ISO: 17
  • Electrical insulation class: Double isolation Class II
  • Degree of IP protection: IP65 according to Enable / Deactivate Ig
  • Level of protection IK: IK09 according to H
  • Fire resistance: 750 °C according to IEC 60695-2-1
  • UV resistance: status 1 class 3 according to ISO 4582:2010
  • Ultraviolet degradation test: according to ISO 4892-2:2013
  • Overvoltage category: II
  • Operating ambient temperature: -25...60 °C
  • Envelope material: Self-extinguishing polymer
  • Colour: Clear green door, light grey envelope (RAL 7035)
  • Type of cover: Transparent Reversible
  • Description of locking options: Optional lock
  • Standards: H EN 50262, IEC 670, IEC 60439-3
  • REACh Regulation: Do not contain SVHC
  • EU RoHS Directive: Proactive (out-of-scope) compliance
  • RoHS China: Outside the scope
  • No mercury: Yes
  • Information on RoHS exemptions: Yes

Product Details

Dimensiones

Measures 448 x 460 x 160 mm
High 460 mm
Width 448 mm
Long 448 mm
Depth 160 mm

Protección

Protection IP65

Otras

Insulation voltage Clase II
EAN 3606486529133
Manufacturer SCHNEIDER
Reference IMPO 13971M
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 13971M
EAN 3606486529133
10 Items
