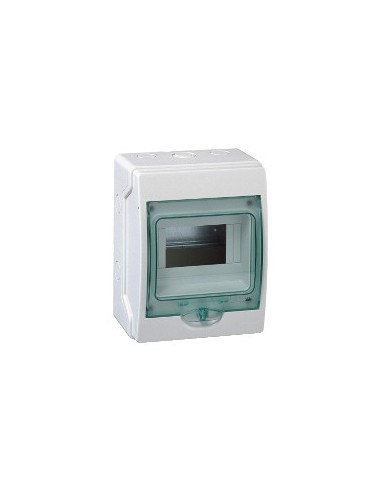

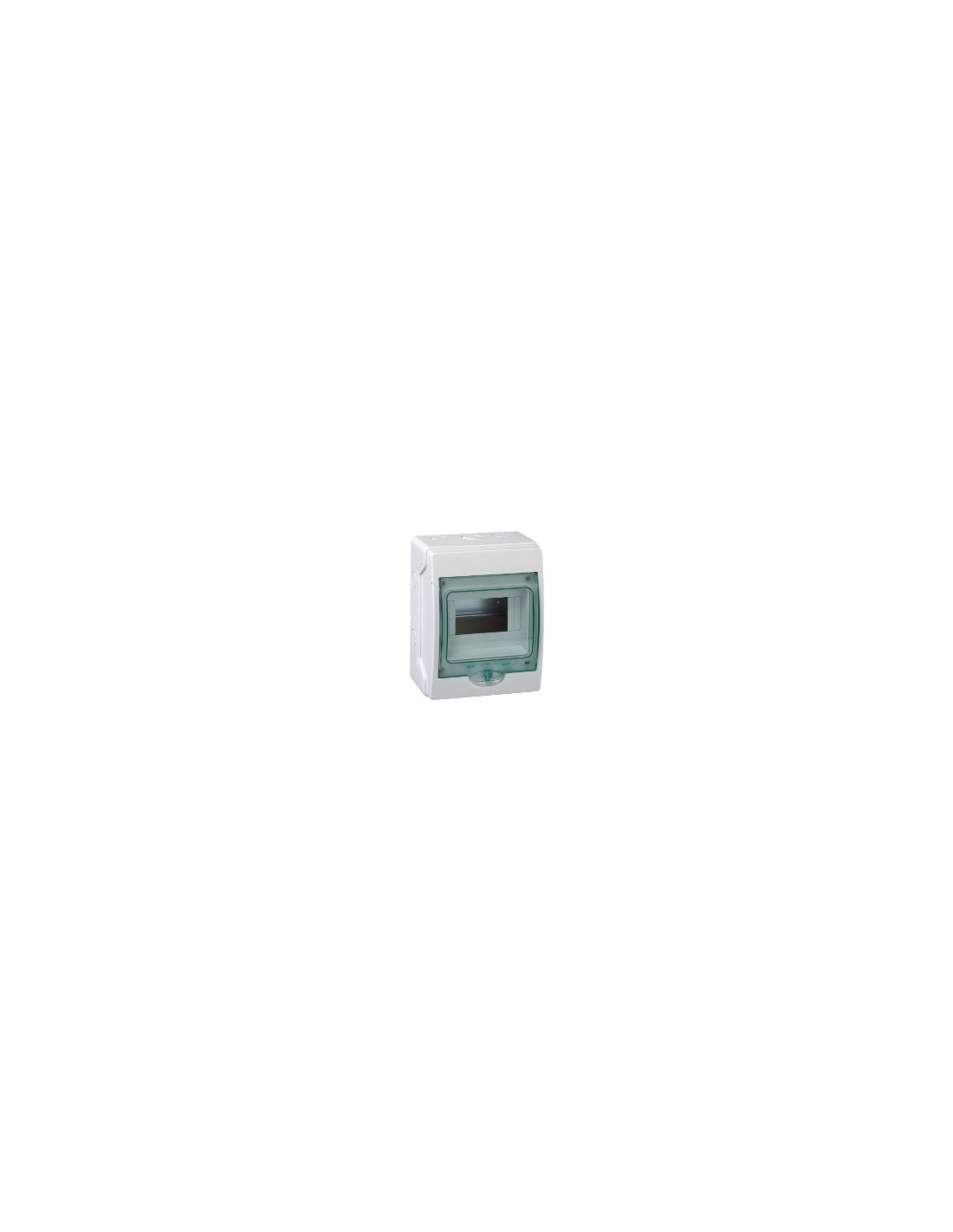

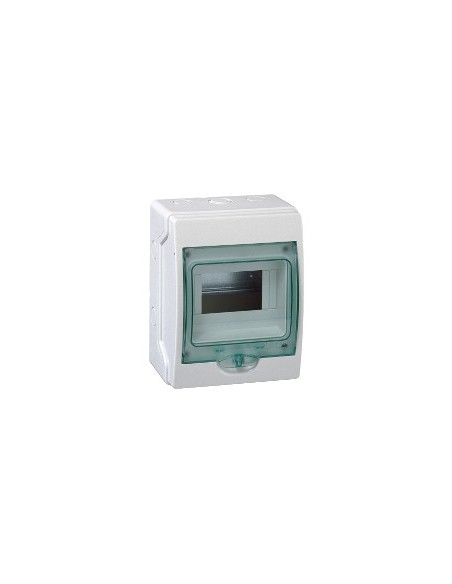

Kaedra Waterproof Box Surface 1 Row 6 Modules IP65
Kaedra Waterproof Box Surface 1 Row 6 Modules IP65

Kaedra Waterproof Box Surface 1 Row 6 Modules IP65

Available In stock 100 Items Reference IMPO 13958M
€33.14
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP65
  • Colour Gris claro

Mini Kaedra is a surface-mounted waterproof box with 6 modules of 18 mm in a single row, made of self-extinguishing polymer. It offers IP65 protection and IK09 protection rating, UV resistance class 3, and operates in environments from -25 to 60 °C.

Description

Mini Kaedra is a mini enclosure for modular devices, designed for installations in residential and small commercial environments. Its surface mounting and DIN rail mounting allow for simple integration into electrical enclosures.

Technical Features

  • Number of 18 mm modules per row: 6
  • Total number of 18 mm modules: 6
  • Number of horizontal rows: 1
  • 9 mm steps: 12
  • Cabinet mounting: Surface
  • Rail type: DIN
  • Electrical insulation class: Class II (Double insulation)
  • Rated current [In]: 63 A
  • Protection rating IP: IP65
  • Protection rating IK: IK09
  • Fire resistance: 750 °C according to IEC 60695-2-1
  • UV resistance: Class 3 according to ISO 4582:2010
  • UV degradation test: ISO 4892-2:2013
  • Overvoltage category: II
  • Operating ambient temperature: -25 °C to +60 °C
  • Enclosure material: Self-extinguishing polymer
  • Color: Transparent green door, light grey enclosure (RAL 7035)
  • Power dissipation: 11 W
  • Number of PG ISO knockouts: 3
  • Distribution block outputs: 4 x 10 mm², 4 x 16 mm²
  • Number of terminal blocks: 1 with clamping capacity: 8 terminals
  • Mounting plate description: With slots
  • Supplied equipment: 1 marking kit, 1 terminal block with 8 holes, 1 terminal block support
  • Locking options description: Optional lock
  • Standards: IEC 60439-3 H, IEC 670, EN 50262
  • EU RoHS Directive: Proactive compliance (out of scope)
  • China RoHS: Product outside scope
  • REACH Regulation: No SVHC
  • Mercury-free: Yes

Product Details

Eléctrico

Rated current (A) 63

Protección

Protection IP65

Otras

EAN 3606486529027
Manufacturer SCHNEIDER
Reference IMPO 13958M
Cable cross-section (mm²) 10 mm²
Colour Gris claro
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 13958M
EAN 3606486529027
100 Items
