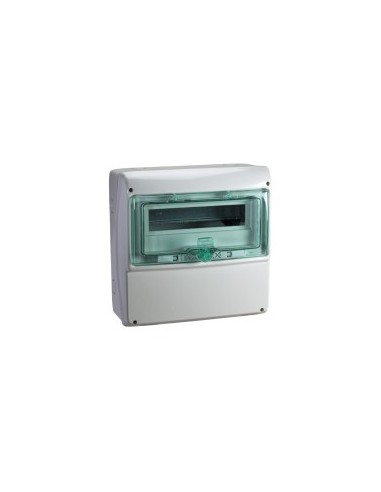

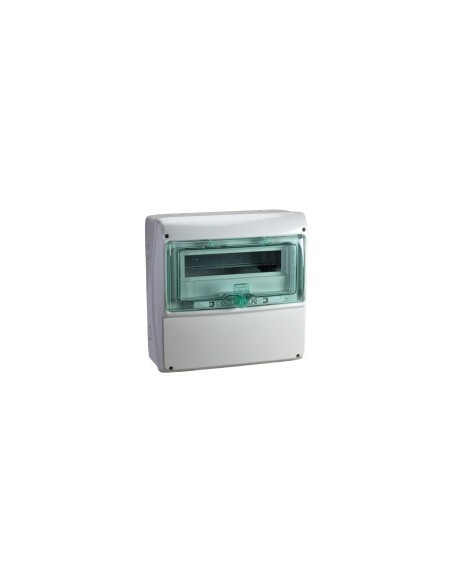

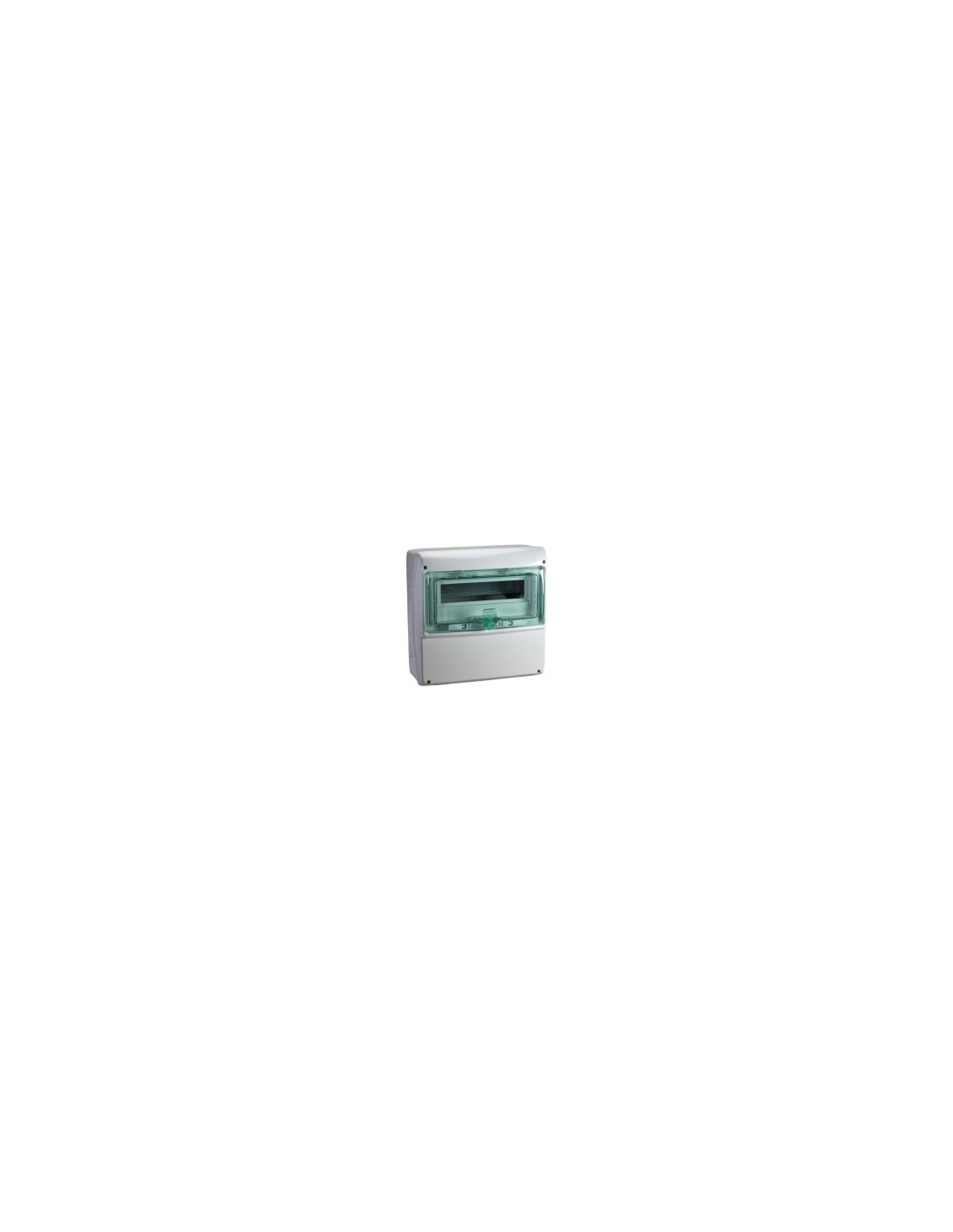

Mureva waterproof box 1x12 modules 340x335 mm

Multipurpose housing for Mureva type power supply, designed for industrial and commercial installations. Compatible with 18 mm modules in a single row, it offers a versatile solution for electrical distribution in demanding environments. Its self-extinguishing polymer structure ensures safety in case of fire.

Technical characteristics

• Number of 18 mm modules per row: 12
• Total number of 18 mm modules: 12
• Number of horizontal rows: 1
• 9 mm steps: 24
• Nominal current [In]: 63 A
• Electrical insulation class: Double isolation Class II
• Degree of IP protection: IP65 according to Enable / Deactivate Ig
• Level of protection IK: IK09 according to H
• Fire resistance: 750 °C according to IEC 60695-2-1
• Power dissipation: 23 W
• Operating ambient temperature: -25...60 °C
• Envelope material: Self-extinguishing polymer
• Colour: Clear green door, light grey envelope (RAL 7035)
• Depth: 160 mm
• Internal depth: 91 mm
• Height: 335 mm
• Width: 340 mm
• Rail type: DIN
• Number of dies PG ISO: 17
• Description of locking options: Optional lock
• Overvoltage category: II
• Environmental characteristics: UV resistance, status 1 class 3 according to ISO 4582:2010, ultraviolet degradation test according to ISO 4892-2:2013
• Standards: Enable/disable Ig H EN 50262 IEC 670 IEC 60439-3
• EU RoHS Directive: Proactive compliance (outside the scope of EU RoHS regulations)
• RoHS China Regulations: Product outside of RoHS China
• REACh Regulation: Do not contain SVHC
• No mercury: Yes
• Information on RoHS exemptions: Yes

It adapts to industrial environments with exposure to dust, moisture and UV radiation.
