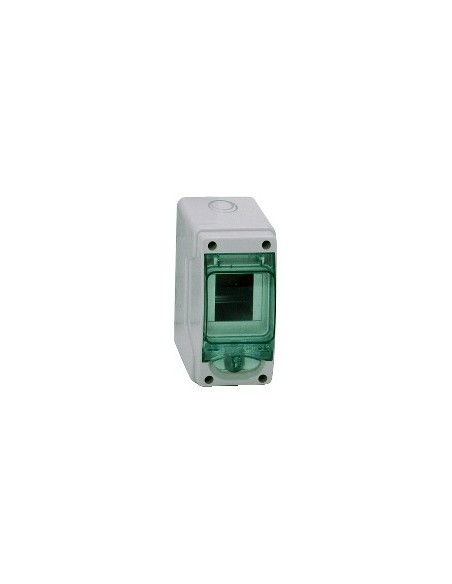

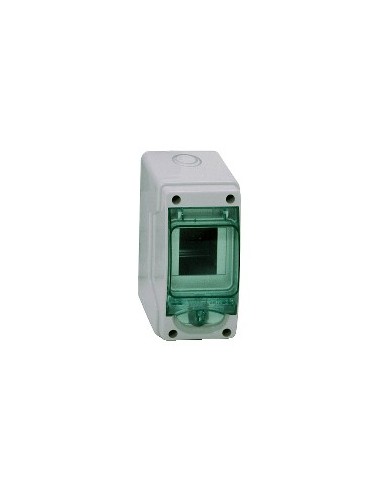

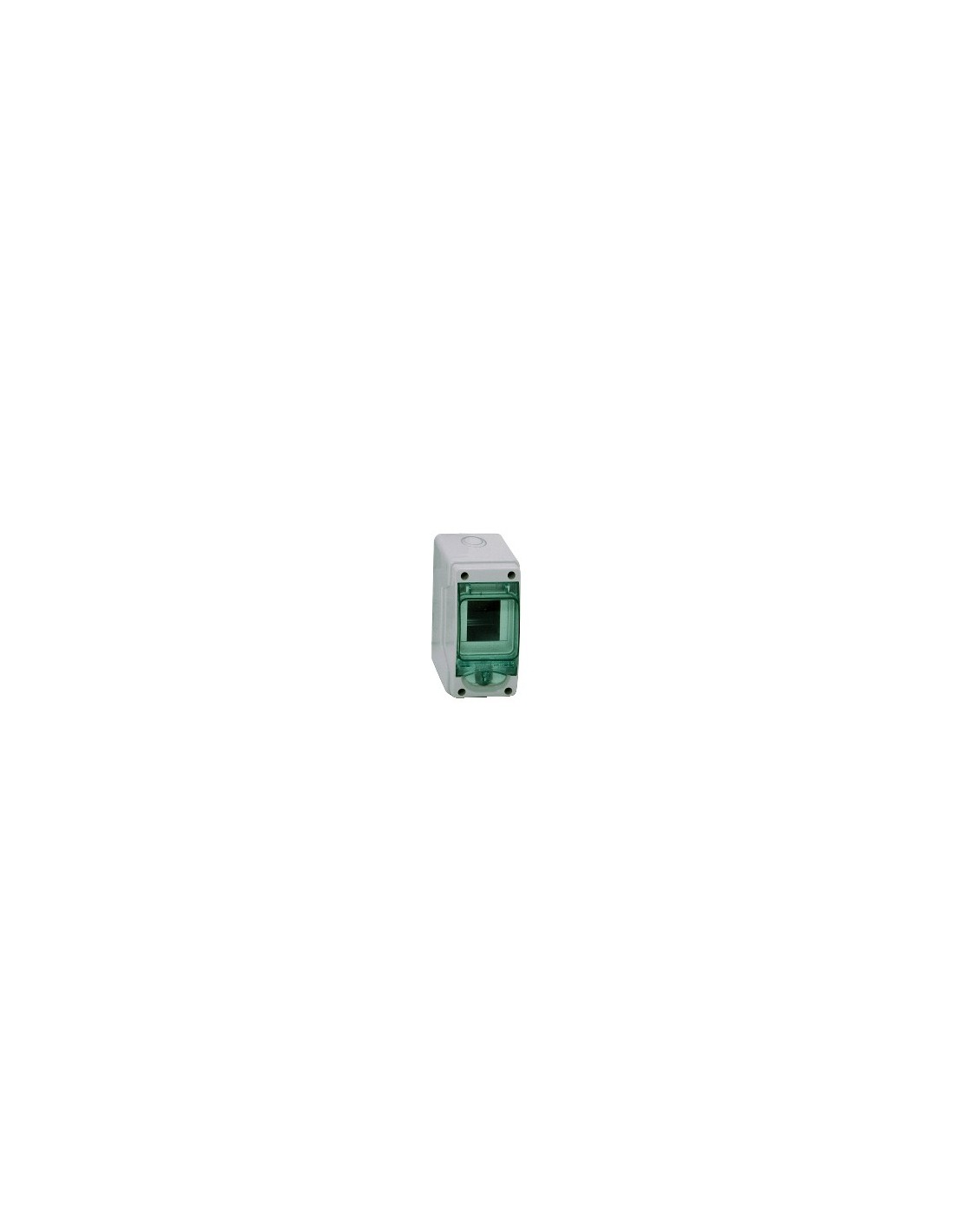

Mini Kaedra 1-row 3-module waterproof box IP65

Mini Kaedra watertight housing with 3 modules in a single row, designed for electrical installations in demanding environments. Its self-extinguishing polymer structure and IP65 protection ensure high resistance to weather and dust.

Technical characteristics

• Number of 18 mm modules per row: 3
• Total number of 18 mm modules: 3
• Number of horizontal rows: 1
• Steps of 9 mm: 6
• Nominal current [In]: 32 A
• Rail type: DIN
• Number of dies PG ISO: 1
• Degree of IP protection: IP65 according to Enable / Deactivate Ig
• Level of protection IK: IK09 according to H
• Fire resistance: 750 °C according to IEC 60695-2-1
• UV resistance, status 1 class 3 according to ISO 4582:2010
• Ultraviolet degradation test according to ISO 4892-2:2013
• Overvoltage category: II
• Operating ambient temperature: -25...60 °C
• Electrical insulation class: Class II Double insulation
• Envelope material: Self-extinguishing polymer
• Colour: Door, status 1 transparent green; Wrapper, status 1 light grey - cable type: RAL 7035
• Accessories included: 1 marking kit
• Description of mounting plate: No mounting plate
• Cabinet mounting: Area
• Description of locking options: Optional lock
• Standards: Activate/disable Ig IEC 60439-3 H EN 50262 IEC 670
• REACh Regulation: Reference does not contain SVHC
• EU RoHS Directive: Proactive compliance (out-of-scope product of RoHS EU)
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Product outside of RoHS China. Information statement on substances
