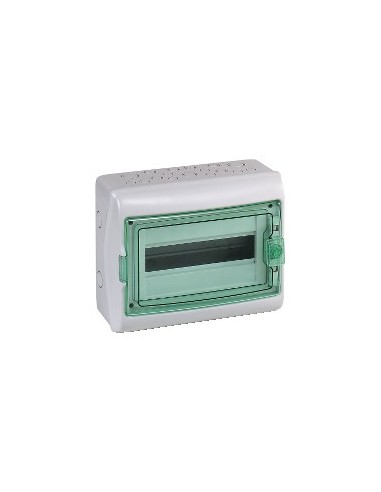

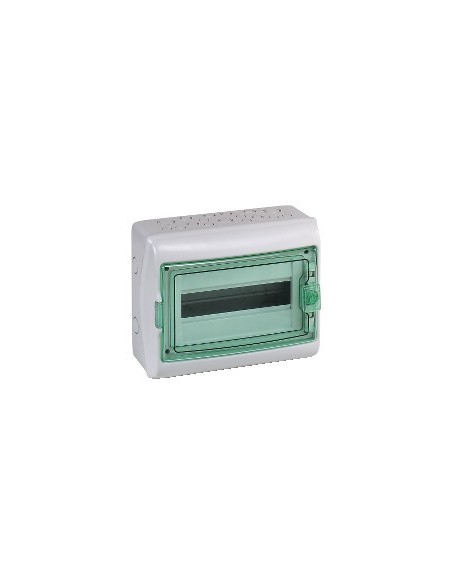

Kaedra Sealed Box 1 Row 12 Modules

Kaedra surface-mounted sealed box with 1 row and 12 modules, designed for electrical installations in residential and small commercial environments. Its self-extinguishing polymer structure offers high mechanical strength and fire resistance up to 750 °C.

Technical Features

• Number of 18 mm modules per row: 12
• Total number of 18 mm modules: 12
• Number of horizontal rows: 1
• Spacing of 9 mm: 24
• Rated current [In]: 63 A
• Electrical insulation class: Class II (Double insulation)
• Protection degree IP: IP65 according to IEC 60529
• Protection degree IK: IK09 according to IEC 62262
• Fire resistance: 750 °C according to IEC 60695-2-1
• Housing material: Self-extinguishing polymer
• Operating ambient temperature: -25…60 °C
• Overvoltage category: II
• Power dissipation: 24 W
• Mounting type: Surface
• Rail type: DIN
• Number of PG ISO knockouts: 17
• Color: Transparent green door, light gray housing (RAL 7035)
• Environmental characteristics: UV resistance, class 3 according to ISO 4582:2010 and ISO 4892-2:2013
• Standards: EN 50262, IEC 60439-3, IEC 670
• Included accessories: 1 cable strip, 1 marking kit, 1 terminal block holder, 1 terminal block with 8 holes
• Distribution block outlets: 4 x 10 mm², 4 x 16 mm²
• Mounting plate description: With slots
• Faceplate type: Reversible transparent
• Locking options: Optional lock
• EU RoHS Directive: Proactive compliance (out of scope)
• China RoHS Regulation: Outside scope
• REACH Regulation: No SVHC
• Mercury-free: Yes
