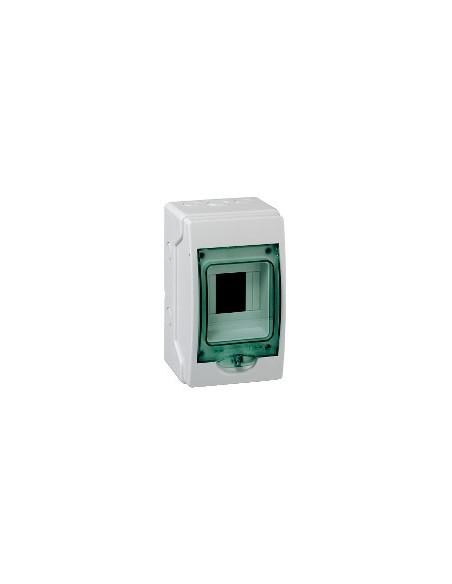

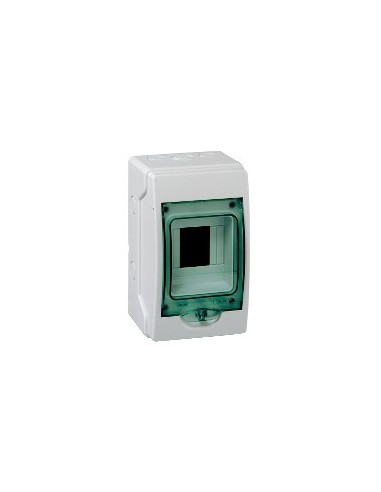

Kaedra surface-mounted watertight box 1 row 4 modules IP65

Mini Kaedra is a mini-enveloping case for modular devices, designed for surface installation. Ideal for residential environments and small shops, it offers IP65 protection and IK09 resistance, ensuring durability in adverse conditions.

Technical characteristics

• Number of 18 mm modules per row: 4
• Total number of 18 mm modules: 4
• Number of horizontal rows: 1
• Steps of 9 mm: 8
• Cabinet mounting: Area
• Rail type: DIN
• Nominal current [In]: 63 A
• Power dissipation: 10 W
• Degree of IP protection: IP65 according to Enable / Deactivate Ig
• Level of protection IK: IK09 according to H
• Fire resistance: 750 °C according to IEC 60695-2-1
• UV resistance: State 1, Class 3 according to ISO 4582:2010
• Ultraviolet degradation test: according to ISO 4892-2:2013
• Overvoltage category: II
• Operating ambient temperature: -25...60 °C
• Electrical insulation class: Double isolation Class II
• Envelope material: Self-extinguishing polymer
• Colour: Clear green door, light grey envelope (RAL 7035)
• Number of dies PG ISO: 3
• Description of locking options: Optional lock
• Accessories included: 1 terminal block holder, 1 marking kit
• Mounting plate: With slots
• Height: 200 mm
• Width: 123 mm
• Depth: 112 mm
• Internal depth: 56 mm
• Standards: IEC 670 H, IEC 60439-3, EN 50262
• EU RoHS Directive: Proactive (out-of-scope) compliance
• RoHS China Regulations: Outside the scope
• REACh Regulation: No SVHC
• No mercury: Yes
• Information on RoHS exemptions: Yes
