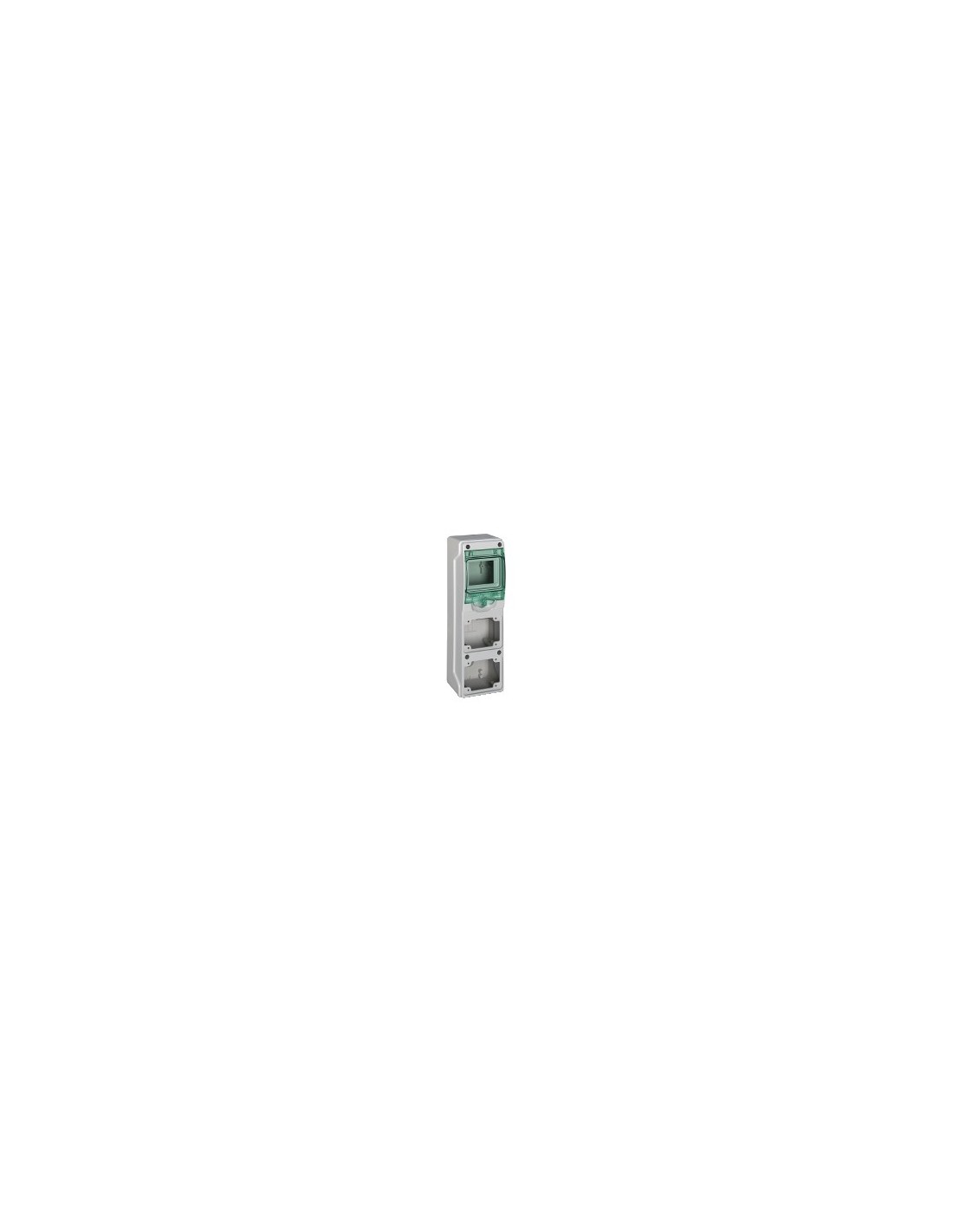

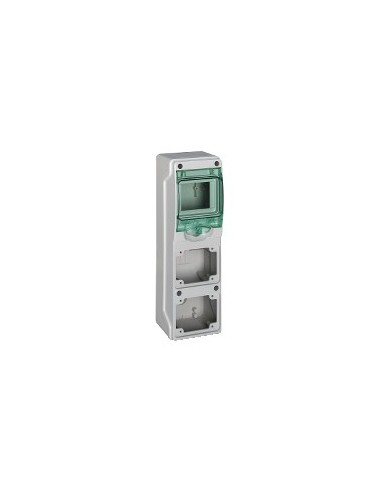

Kaedra Sealed Enclosure 1x4 Module 63 A Transparent

Mini enclosure for power outlets, designed for installations in demanding industrial or commercial environments. Compatible with 18 mm modules, provides a compact and safe solution for power distribution. Includes 1 power outlet plate of 50 x 50 mm and a terminal block with capacity for 4 terminals, allowing organized and secure connections.

Technical Features

• Number of 18 mm modules per row: 4
• Total number of 18 mm modules: 4
• Number of horizontal rows: 1
• Number of openings on interface: 2
• Rated current: 63 A
• Protection degree IP: IP65
• Protection degree IK: IK09
• Fire resistance: 750 °C (IEC 60695-2-1)
• Electrical insulation class: Class II (double insulation)
• Overvoltage category: II
• Operating ambient temperature: -25…60 °C
• Housing material: Self-extinguishing polymer
• Color: Transparent green door, light gray housing (RAL 7035)
• Power dissipation: 6.5 W
• Number of PG ISO knockouts: 1
• Distribution block outputs: 2 x 10 mm², 2 x 16 mm²
• Spacing of 9 mm: 8
• Mounting: Surface
• Included accessories: 1 power outlet plate of 50 x 50 mm, 1 terminal block with 4 holes
• Locking options description: Optional lock
• Standards: IEC 670, EN 50262, IEC 60439-3
• Environmental characteristics: UV resistance, class 3 (ISO 4582:2010, ISO 4892-2:2013)
• REACH Regulation: Does not contain SVHC
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS Regulation: Outside scope
• Mercury-free: Yes
