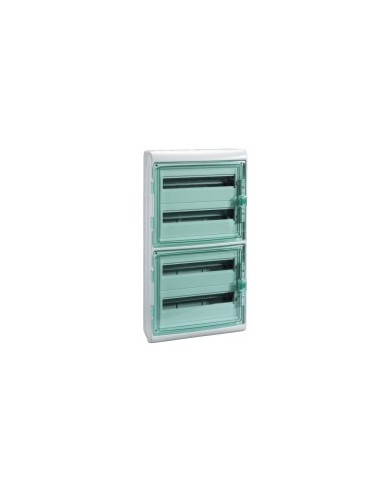

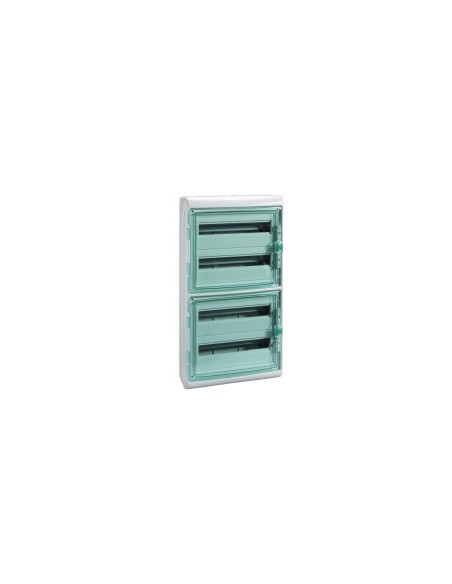

Kaedra Waterproof Box 4 Rows 72 Modules

Kaedra waterproof box with surface mounting, 4 rows, and 72 modules, designed for electrical installations in residential and small commercial environments.

Technical Features

• Total number of 18 mm modules: 72
• Number of horizontal rows: 4
• Number of 18 mm modules per row: 18
• 9 mm spacing steps: 36
• Rated current [In]: 160 A
• Electrical insulation class: Class II (Double insulation)
• Protection rating IP: IP65 according to IEC 60529
• Impact protection rating IK: IK09 according to IEC 62262
• Fire resistance: 750 °C according to IEC 60695-2-1
• Housing material: Self-extinguishing polymer
• Operating ambient temperature: -25…60 °C
• Overvoltage category: II
• Power dissipation: 89 W
• Color: Door, state 1 transparent green; Housing, state 1 light gray (RAL 7035)
• Rail type: DIN
• Number of PG ISO punched holes: 17
• Distribution block outlets: 32 x 10 mm², 32 x 16 mm²
• Locking options description: Optional lock
• Included accessories: 2 terminal block supports, 2 terminal blocks with 32 holes, 4 signaling kits, 4 mounting tapes
• Internal depth: 88 mm
• Height: 842 mm
• Width: 448 mm
• Depth: 160 mm
• Environmental characteristics: UV resistance, class 3, state 1 according to ISO 4582:2010; Ultraviolet degradation test according to ISO 4892-2:2013
• Standards: H IEC 670, EN 50262, IEC 60439-3
• REACH Regulation: No SVHC content
• EU RoHS Directive: Proactive compliance (outside RoHS EU scope)
• RoHS Exemptions: Yes
• China RoHS Regulation: Product outside China RoHS scope
• Mercury-free: Yes
