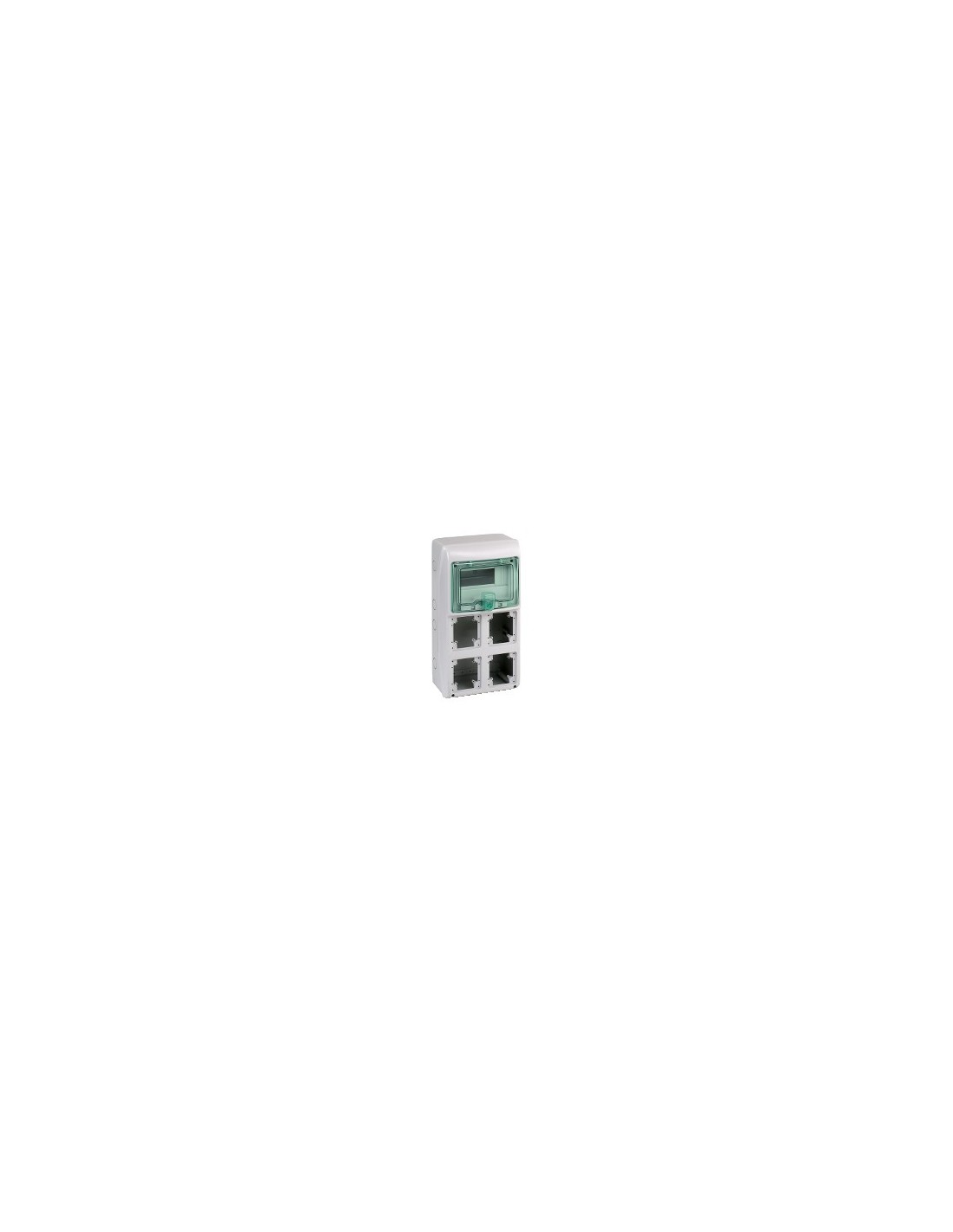

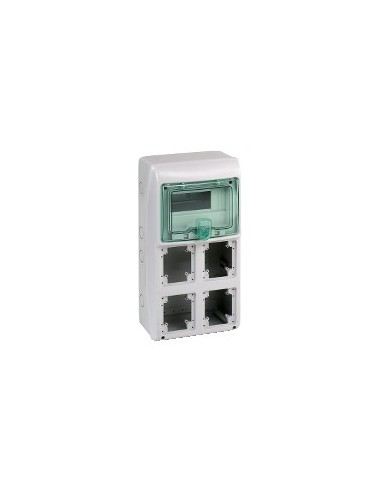

Kaedra Surface Distribution Box 8 Modules

Sealed cofret-type distribution box from the Kaedra range, designed for surface mounting with 4 openings and capacity for 8 modules of 18 mm in a single row. Ideal for electrical installations in industrial or outdoor environments requiring protection against dust and water.

Technical Features

• Number of 18 mm modules: 8
• Number of horizontal rows: 1
• Spacing of 9 mm: 16
• Number of openings in the interface: 4
• Rated current [In]: 63 A
• Electrical insulation class: Double insulation Class II
• Protection degree IP: IP65 according to IEC 60529
• Impact protection degree IK: IK09 according to IEC 62262
• Fire resistance: 750 °C according to IEC 60695-2-1
• Operating ambient temperature: -25…60 °C
• Overvoltage category: II
• Housing material: Self-extinguishing polymer
• Power dissipation: 15 W
• Rail type: DIN
• Number of PG ISO knockouts: 7
• Number of terminal blocks: 1 with clamping capacity: 8 terminals
• Distribution block outputs: 4 x 10 mm², 4 x 16 mm²
• Color: Transparent green door, light gray housing (RAL 7035)
• Environmental characteristics: UV resistance, class 3 according to ISO 4582:2010 and ISO 4892-2:2013
• Standards: IEC 60695, IEC 60439-3, EN 50262
• Unlocking: Optional lock

The product includes 1 pushbutton control plate, 4 power outlet plates of 65 x 85 mm, 1 terminal block with 8 terminals, 2 cable bars, 1 terminal block support, and 2 cable clamps. Mounting plate not included.
