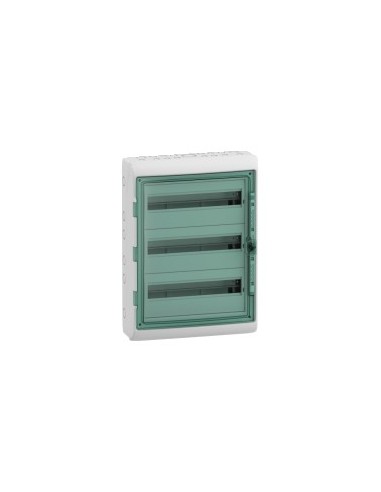

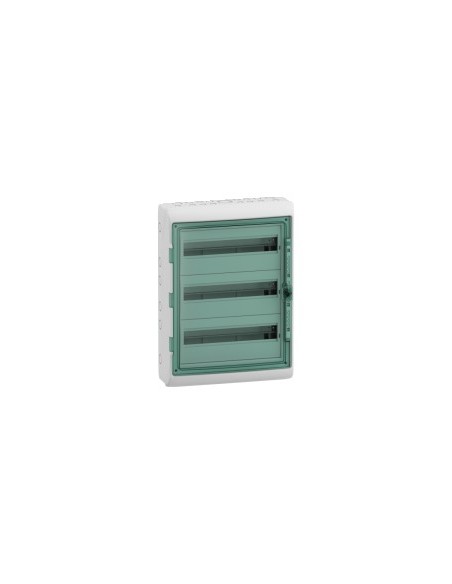

Kaedra Waterproof Box 3 Rows 54 Modules

Kaedra surface mounting housing with 3 rows and 54 modules, designed for electrical installations in residential environments and small shops. Its self-extinguishing polymer structure offers high mechanical strength and fire protection up to 750 °C.

Technical characteristics

• Total number of 18 mm modules: 54
• Number of horizontal rows: 3
• Number of 18 mm modules per row: 18
• 9 mm steps: 36
• Nominal current [In]: 125 A
• Electrical insulation class: Class II (double isolation)
• Rail type: DIN
• Number of dies PG ISO: 17
• Number of terminal blocks: 2 with clamping capacity: 22 exits
• Envelope material: Self-extinguishing polymer
• Degree of IP protection: IP65 according to Enable / Deactivate Ig
• Level of protection IK: IK09 according to H
• Fire resistance: 750 °C according to IEC 60695-2-1
• Operating ambient temperature: -25...60 °C
• Overvoltage category: II
• Power dissipation: 65 W
• Colour: Door, status 1 transparent green; Wrapper, status 1 light grey (RAL 7035)
• Environmental characteristics: UV resistance, status 1 class 3 according to ISO 4582:2010; Ultraviolet degradation test according to ISO 4892-2:2013
• Standards: EN 50262, IEC 670, IEC 60439-3
• Unlock: Optional lock
• Accessories included: 3 marking kits, 3 cable clamps, 2 terminal blocks, 22 holes, 2 terminal block brackets
• Depth: 160 mm
• Internal depth: 88 mm
• Width: 448 mm
• Height: 610 mm
• REACh Regulation: Do not contain SVHC
• EU RoHS Directive: Proactive (out-of-scope) compliance
• RoHS China Regulations: Outside the scope
• No mercury: Yes
• Information on RoHS exemptions: Yes
