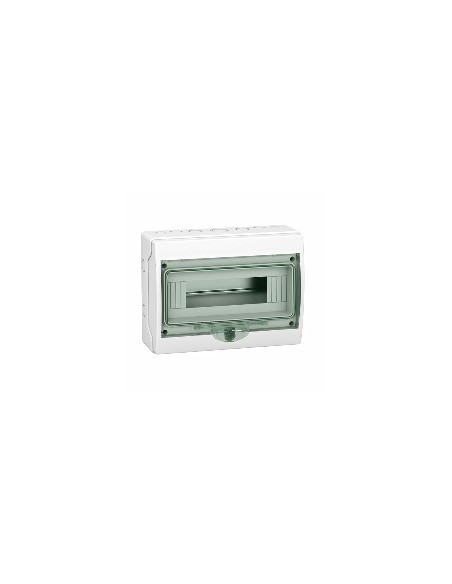

Kaedra surface waterproof box 1 row 12 modules IP65
Kaedra surface waterproof box 1 row 12 modules IP65

Kaedra surface waterproof box 1 row 12 modules IP65

Available In stock 100 Items Reference IMPO 13960M
€70.94
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Power (W) 19 W
  • Protection IP65
  • Colour Gris claro

Mini Kaedra is a surface watertight box with 12 18 mm modules in a single row, made of self-extinguishing polymer. It offers IP65 protection and IK09 resistance, with DIN rail mounting and 16-hole terminal block support.

Description

Mini Kaedra is a mini-enveloping case for modular devices, designed for installations in residential environments and small shops. Its self-extinguishing polymer structure offers mechanical and electrical protection, with IP65 and IK09 degree of protection, guaranteeing resistance to dust, water and impacts.

Technical characteristics

  • Number of 18 mm modules per row: 12
  • Total number of 18 mm modules: 12
  • Number of horizontal rows: 1
  • Cabinet mounting: Area
  • Rail type: DIN
  • Electrical insulation class: Double isolation Class II
  • Nominal current [In]: 63 A
  • Power dissipation: 19 W
  • Degree of IP protection: IP65 according to Enable / Deactivate Ig
  • Level of protection IK: IK09 according to H
  • Fire resistance: 750 °C according to IEC 60695-2-1
  • UV resistance: Class 3 according to ISO 4582:2010
  • Ultraviolet degradation test: according to ISO 4892-2:2013
  • Overvoltage category: II
  • Operating ambient temperature: -25...60 °C
  • Envelope material: Self-extinguishing polymer
  • Colour: Clear green door, light grey envelope (RAL 7035)
  • Number of dies PG ISO: 7
  • Description of mounting plate: With slots
  • Number of terminal blocks: 1 with clamping capacity: 16 exits
  • Description of locking options: Optional lock
  • Internal depth: 56 mm
  • Height: 200 mm
  • Width: 267 mm
  • Depth: 112 mm
  • Equipment supplied: 1 marking kit, 1 terminal block holder, 1 terminal block 16 holes
  • Standards: IEC 60439-3, IEC 670, EN 50262 H
  • EU RoHS Directive: Proactive (out-of-scope) compliance
  • RoHS China Regulations: Outside the scope
  • REACh Regulation: No SVHC
  • No mercury: Yes

Product Details

Dimensiones

Measures 200 mm x 267 mm x 112 mm
High 200 mm
Width 267 mm
Long 200 mm
Depth 112 mm
Weight (kg) 1.5 kg

Eléctrico

Rated current (A) 63

Iluminación

Power (W) 19 W

Protección

Protection IP65

Otras

Insulation voltage Clase II
EAN 3606486529041
Manufacturer SCHNEIDER
Maximum power (W) 19 W
Reference IMPO 13960M
Colour Gris claro
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 13960M
EAN 3606486529041
100 Items
