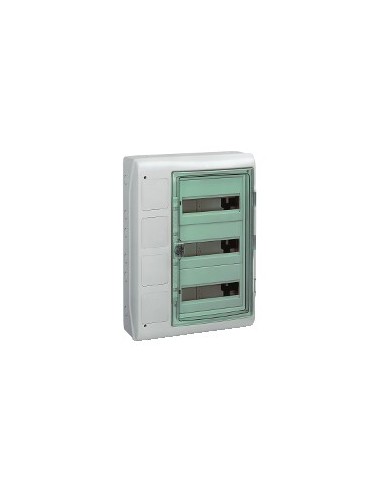

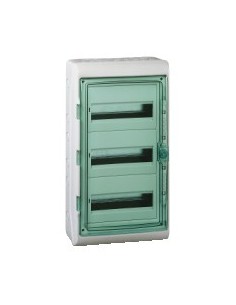

Kaedra Waterproof Enclosure 448 x 610 mm 36 Modules

Multipurpose Kaedra enclosure of 448 x 610 mm with 36 modules and 4 openings, designed for modular installations in residential and small commercial environments. Its structure in self-extinguishing polymer offers high mechanical resistance and IP65 protection, with IK09 protection level and fire resistance up to 750 °C.

Technical Features

• Electrical insulation class: Class II (double insulation)
• Total number of 18 mm modules: 36
• Number of horizontal rows: 3
• Modules per row: 12
• 9 mm steps: 24
• Rated current: 125 A
• Rail type: DIN
• Number of PG ISO knockouts: 17
• Number of terminal blocks: 1 with clamping capacity: 32 terminals
• Distribution block outputs: 16 x 10 mm², 16 x 16 mm²
• Number of openings in interface: 4
• Housing material: Self-extinguishing polymer
• Protection rating IP: IP65 according to IEC 60529
• Impact protection rating IK: IK09 according to IEC 62262
• Fire resistance: 750 °C according to IEC 60695-2-1
• UV resistance: Class 3, Grade 1 according to ISO 4582:2010
• UV degradation test: according to ISO 4892-2:2013
• Overvoltage category: II
• Operating ambient temperature: -25…60 °C
• Color: Door, Grade 1 transparent green; Housing, Grade 1 light gray (RAL 7035)
• Cabinet mounting: Surface
• Faceplate type: Reversible transparent
• Locking options description: Optional lock
• Standards: IEC 60439-3, IEC 670, EN 50262
• REACH Regulation: No SVHC content
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS Regulation: Outside scope
• Mercury-free: Yes
• RoHS exemption information: Yes
