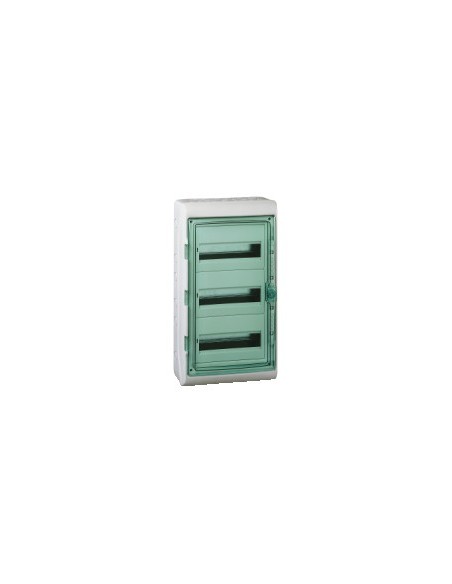

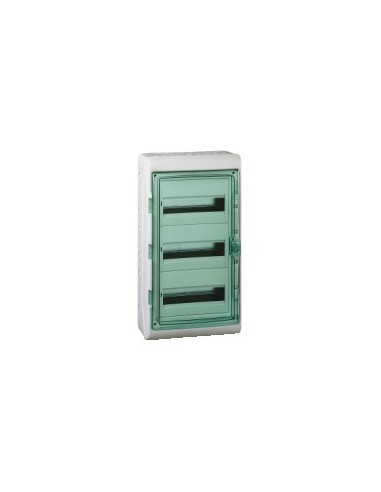

Kaedra waterproof enclosure with surface mounting, 3 rows and 36 modules of 18 mm, designed for electrical installations in residential and small commercial environments. Made of self-extinguishing polymer, it features a reversible transparent cover for clear component identification. Includes a terminal block with 32 holes, 16 outlets for 10 mm² cables and 16 for 16 mm², plus 3 marking kits and 3 cable bars.
Technical Features
- Number of horizontal rows: 3
- Total number of 18 mm modules: 36
- 9 mm steps: 24
- Number of 18 mm modules per row: 12
- Rated current [In]: 125 A
- Electrical insulation class: Class II (Double insulation)
- Rail type: DIN
- Number of PG ISO knockouts: 17
- Number of terminal blocks: 1 with 32 terminals
- Distribution block outlets: 16 x 10 mm², 16 x 16 mm²
- Housing material: Self-extinguishing polymer
- Protection rating IP: IP65 according to IEC 60529
- Protection rating IK: IK09 according to IEC 62262
- Fire resistance: 750 °C according to IEC 60695-2-1
- UV resistance, class 3, status 1 according to ISO 4582:2010
- UV degradation test according to ISO 4892-2:2013
- Overvoltage category: II
- Operating ambient temperature: -25…60 °C
- Color: Door, status 1 transparent green; Housing, status 1 light grey (RAL 7035)
- Mounting plate description: With slots
- Cabinet mounting: Surface
- Supplied equipment: 3 marking kits, 3 cable clamp, 1 terminal block support, 1 terminal block with 32 holes
- Locking options description: Optional lock
- Standards: IEC 60439-3, EN 50262, IEC 60529, IEC 62262, IEC 670
- REACH Regulation: Reference does not contain SVHC
- EU RoHS Directive: Proactive compliance (outside RoHS EU scope)
- Mercury-free: Yes
- RoHS exemption information: Yes
- China RoHS Regulation: Product outside China RoHS scope. Substance information declaration
The modular structure and IP65 and IK09 protection features allow its use in dusty and wet environments. Its double insulation design and high-temperature resistance ensure reliability under extreme environmental conditions.
