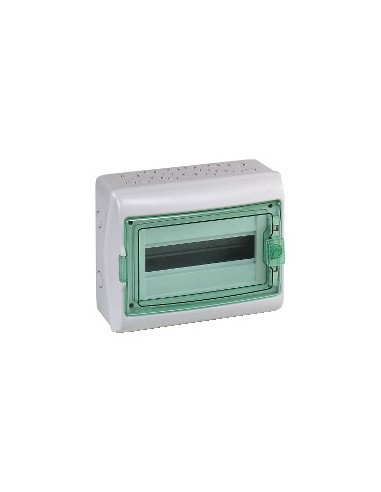

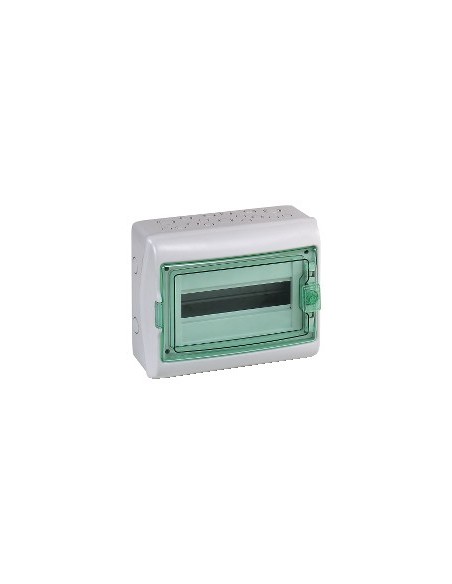

Kaedra Waterproof Box 1 Row 18 Modules IP65

Kaedra surface watertight box, designed for electrical installations in residential environments and small shops.

Technical characteristics

• Number of 18 mm modules per row: 18
• Total number of 18 mm modules: 18
• Number of horizontal rows: 1
• Cabinet mounting: Area
• 9 mm steps: 36
• Rail type: DIN
• Number of dies PG ISO: 17
• Number of terminal blocks: 1 with clamping capacity: 16 exits
• Equipment supplied: 1 Marking kit, 1 cable clamp, 1 Terminal block support, 1 terminal block 16 holes
• Electrical insulation class: Double isolation Class II
• Nominal current [In]: 90 A
• Power dissipation: 34 W
• Degree of IP protection: IP65 according to Enable / Deactivate Ig
• Level of protection IK: IK09 according to H
• Fire resistance: 750 °C according to IEC 60695-2-1
• Environmental characteristics: UV resistance, status 1 class 3 according to ISO 4582:2010, Ultraviolet degradation test according to ISO 4892-2:2013
• Overvoltage category: II
• Operating ambient temperature: -25...60 °C
• Envelope material: Self-extinguishing polymer
• Colour: Door, status 1 transparent green; Wrapper, status 1 light grey (RAL 7035)
• Description of locking options: Optional lock
• Standards: IEC 60439-3, IEC 670, Activate/disable Ig H, EN 50262
• REACh Regulation: Reference does not contain SVHC
• EU RoHS Directive: Proactive compliance (out-of-scope product of RoHS EU)
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Product outside of RoHS China. Information statement on substances
