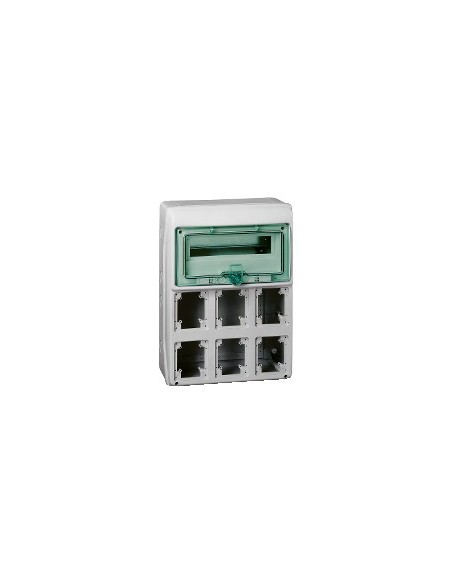

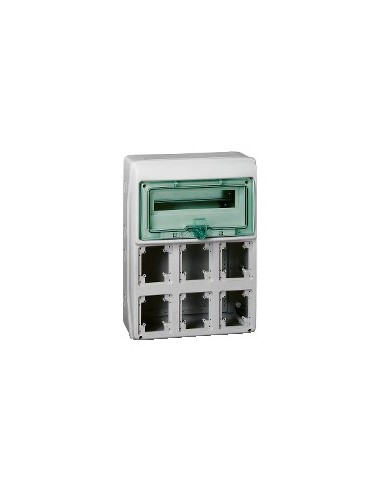

Kaedra Distribution Box 6 Openings 12 Modules

Sealed cofret-type distribution box from the Kaedra range, designed for surface mounting with 6 openings and capacity for 12 modules of 18 mm. Ideal for electrical installations in industrial or outdoor environments, offering IP65 protection and IK09 resistance. Includes 6 power outlet plates (65 x 85 mm), 2 push-button control plates, 1 terminal block with 8 terminals, terminal block support, 2 cable bars, and 2 cable clamps.

Technical Features

• Number of 18 mm modules: 12
• Number of horizontal rows: 1
• Number of openings on interface: 6
• Rated current [In]: 63 A
• Electrical insulation class: Double insulation Class II
• Protection rating IP: IP65
• Protection rating IK: IK09
• Fire resistance: 750 °C (in accordance with IEC 60695-2-1)
• Housing material: Self-extinguishing polymer
• Operating ambient temperature: -25…60 °C
• Standards: IEC 60439-3, EN 50262, IEC 670
• Overvoltage category: II
• Power dissipation: 23 W
• Color: Transparent green door, light gray housing (RAL 7035)
• Dimensions: 340 mm (width) x 460 mm (height) x 160 mm (depth)
• Internal depth: 91 mm
• Base dimension: 91 x 100 mm
• Rail type: DIN
• Number of PG ISO knockouts: 17
• Number of terminal blocks: 1 (8 terminals)
• Distribution block outputs: 4 x 10 mm², 4 x 16 mm²
• Environmental characteristics: UV resistance, Class 3 (in accordance with ISO 4582:2010 and ISO 4892-2:2013)
• Unlocking: Optional lock
• REACH Regulation: No SVHC
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS Regulation: Outside scope
