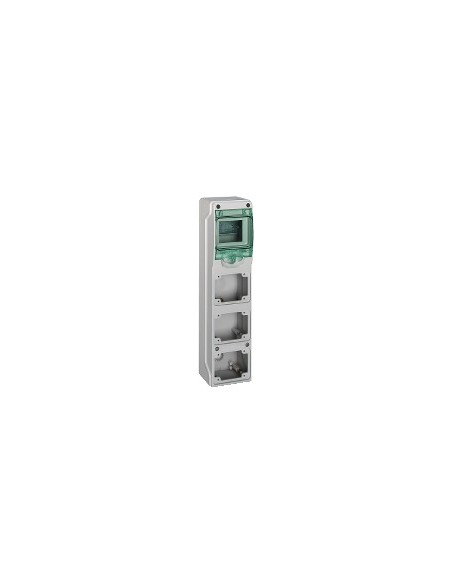

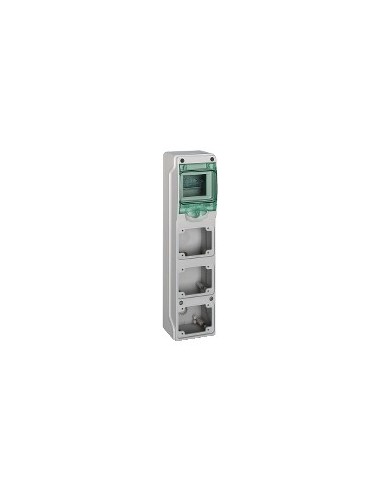

Kaedra Waterproof Enclosure 1x4 Modules 3 Openings 65x85 mm

Mini enclosure for power outlets, waterproof box type from the Kaedra range, designed for surface installations with direct mounting. Features a single row of 4 modules of 18 mm, 3 openings of 65x85 mm, and an internal depth of 61 mm. Includes 1 power outlet plate of 50x50 mm and a terminal block with capacity for 4 terminals, with outputs distributed as 2 x 10 mm² and 2 x 16 mm². The enclosure is made of self-extinguishing polymer, with IP65 and IK09 protection, resistant to impacts and extreme environmental conditions.

Technical Features

• Number of 18 mm modules per row: 4
• Total number of 18 mm modules: 4
• Number of horizontal rows: 1
• Number of openings on the interface: 3
• Rated current [In]: 63 A
• Power dissipation: 6.5 W
• Electrical insulation class: Class II (double insulation)
• Protection degree IP: IP65
• Protection degree IK: IK09
• Fire resistance: 750 °C (IEC 60695-2-1)
• UV resistance: Class 3 (ISO 4582:2010)
• Overvoltage category: II
• Operating ambient temperature: -25…60 °C
• Enclosure material: Self-extinguishing polymer
• Color: Transparent green door, light gray enclosure (RAL 7035)
• Mounting: Surface
• Number of PG ISO knockouts: 1
• Number of terminal blocks: 1
• Distribution block outputs: 2 x 10 mm², 2 x 16 mm²
• Locking options description: Optional lock
• Standards: IEC 60439-3, EN 50262, IEC 670
• REACH Regulation: No SVHC
• EU RoHS Directive: Proactive compliance (out of scope)
• China RoHS: Out of scope
