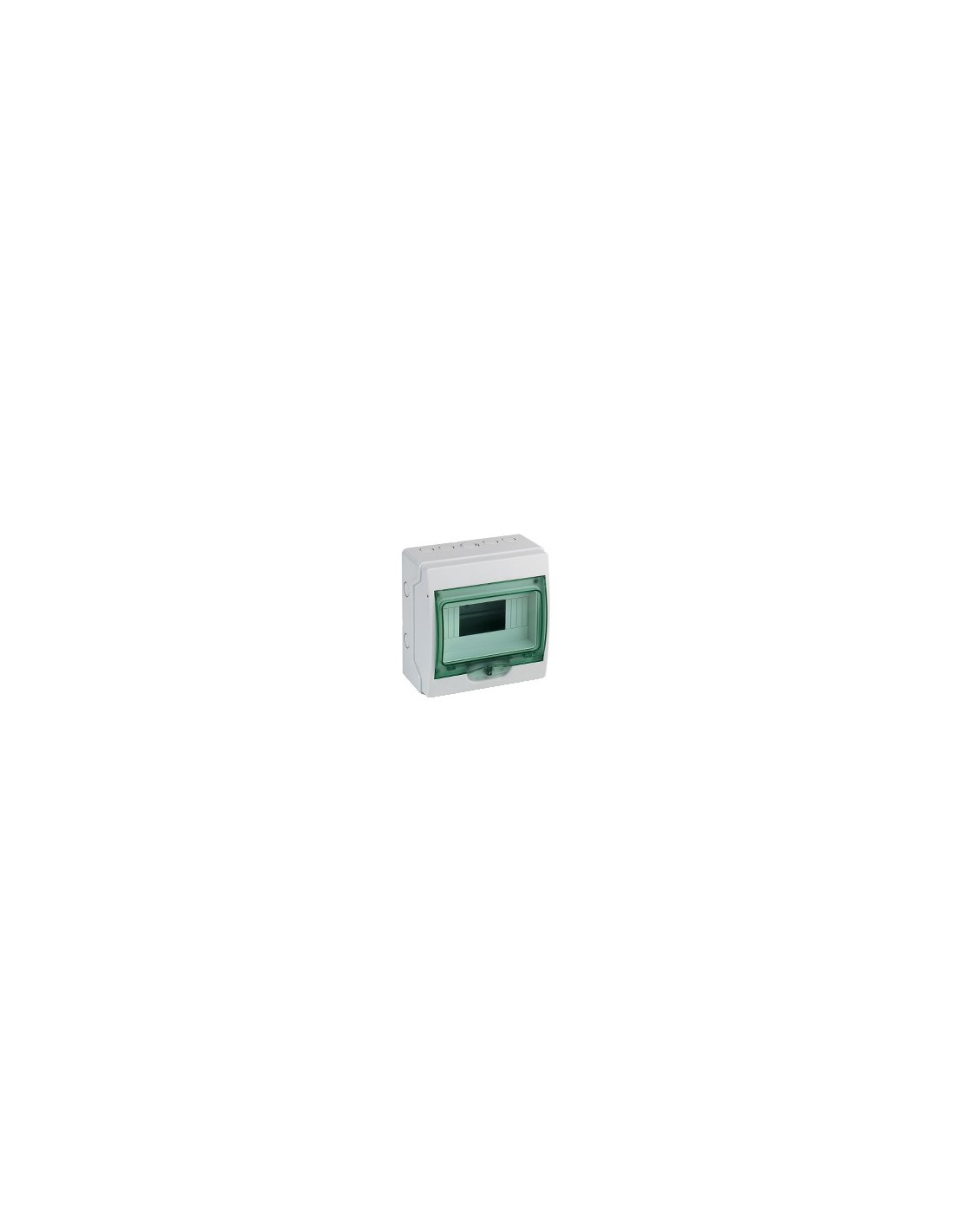

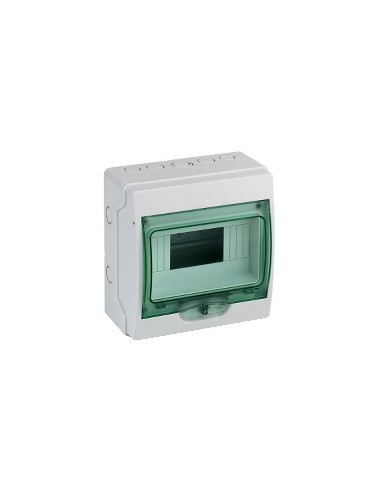

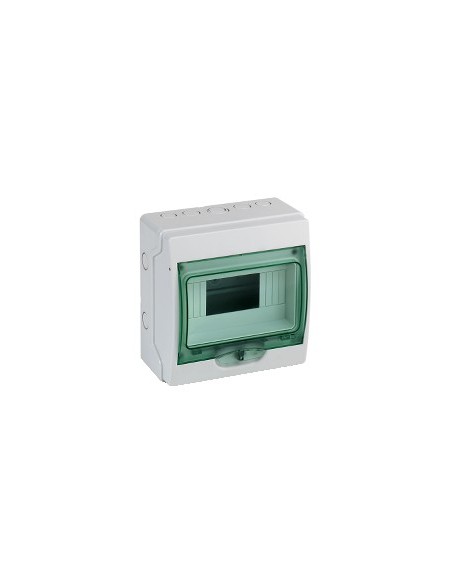

Kaedra waterproof box with surface mounting, featuring 8 modules of 18 mm in a single row, designed for installations in residential and small commercial environments. It has a transparent cover for direct visualization of internal components and is made of self-extinguishing polymer. Offers IP65 and IK09 protection, ensuring resistance to dust, water jets, and mechanical impacts.
Technical Features
- Number of 18 mm modules per row: 8
- Total number of 18 mm modules: 8
- Number of horizontal rows: 1
- 9 mm spacing steps: 16
- Rated current [In]: 63 A
- IP protection rating: IP65 according to
- IK protection rating: IK09 according to H
- Fire resistance: 750 °C according to IEC 60695-2-1
- Electrical insulation class: Double insulation Class II
- Overvoltage category: II
- Operating ambient temperature: -25…60 °C
- Housing material: Self-extinguishing polymer
- Color: Door, state 1 transparent green; Housing, state 1 light gray - cable type: RAL 7035
- Power dissipation: 15 W
- Rail type: DIN
- Number of PG ISO knockouts: 5
- Number of terminal blocks: 1 with clamping capacity: 8 terminals
- Distribution block outputs: 4 x 10 mm², 4 x 16 mm²
- Mounting plate description: With slots
- Internal depth: 56 mm
- Height: 200 mm
- Width: 195 mm
- Depth: 112 mm
- Included accessories: 1 terminal block support, 1 marking kit, 1 terminal block with 8 holes
- Supplied equipment: 1 marking kit, 1 terminal block with 8 holes, 1 terminal block support
- Locking options description: Optional lock
- Standards: EN 50262, IEC 670, IEC 60439-3
- Environmental characteristics: UV resistance, state 1 class 3 according to ISO 4582:2010, UV degradation test according to ISO 4892-2:2013
- REACH Regulation: Reference does not contain SVHC
- EU RoHS Directive: Proactive compliance (product outside RoHS EU scope)
- RoHS exemptions: Yes
- China RoHS regulation: Product outside China RoHS scope. Substance information declaration
