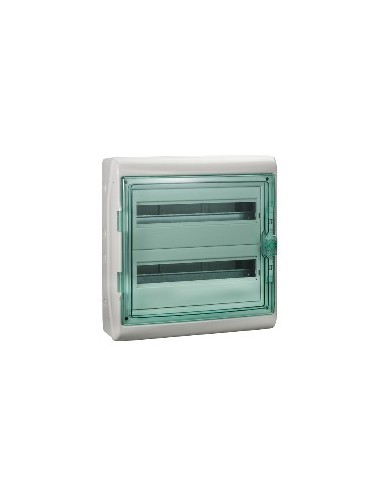

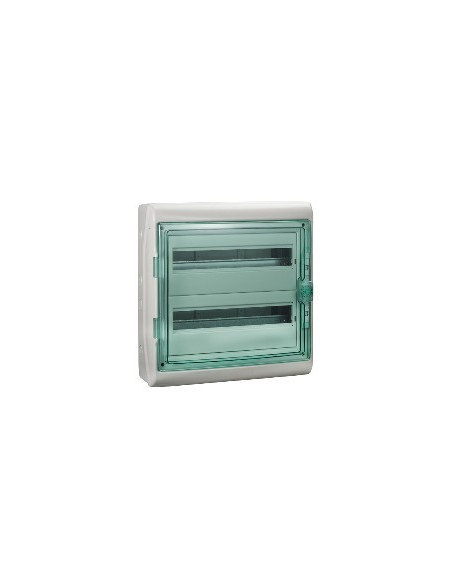

Kaedra waterproof enclosure with surface mounting, 2 rows, and 36 modules of 9 mm, designed for electrical installations in residential and small commercial environments. Manufactured from self-extinguishing polymer, it offers thermal resistance up to 750 °C according to IEC 60695-2-1, IP65 protection rating with IK09 impact resistance. The structure includes double electrical insulation (Class II) and is built to operate in temperatures ranging from -25 °C to 60 °C.
Technical Features
- Total number of 18 mm modules: 36
- Number of horizontal rows: 2
- 9 mm steps: 36
- Number of 18 mm modules per row: 18
- Rated current: 90 A
- Rail type: DIN
- Number of PG ISO knockouts: 17
- Number of terminal blocks: 1 with clamping capacity: 32 terminals
- Distribution block outputs: 16 x 10 mm², 16 x 16 mm²
- Protection rating IP: IP65 according to
- Impact protection rating IK: IK09 according to H
- Fire resistance: 750 °C according to IEC 60695-2-1
- Operating ambient temperature: -25…60 °C
- Overvoltage category: II
- Housing material: Self-extinguishing polymer
- Color: Door, state 1 transparent green; Housing, state 1 light gray (RAL 7035)
- Depth: 160 mm
- Height: 460 mm
- Width: 448 mm
- Internal depth: 88 mm
- Mounting plate description: No mounting plate included
- Cabinet mounting: Surface
- Faceplate type: Reversible Transparent
- Included accessories: 2 cable bars, 2 marking kits, 1 terminal block with 32 holes, 1 terminal block support
- Supplied equipment: 2 marking kits, 2 cable clamps, 1 terminal block support, 1 terminal block, 32 holes
- Locking options description: Optional lock
- Standards: IEC 60439-3, EN 50262,, IEC 670 H
- Environmental characteristics: UV resistance, class 3, state 1 according to ISO 4582:2010, ultraviolet degradation test according to ISO 4892-2:2013
- REACH Regulation: Reference does not contain SVHC
- EU RoHS Directive: Proactive compliance (product outside RoHS EU scope)
- Mercury-free: Yes
- RoHS exemption information: Yes
- China RoHS Regulation: Product outside China RoHS scope. Substance information declaration
The reversible transparent faceplate allows clear identification of internal components. Its robust design and IP65 protection make it suitable for environments exposed to dust and water.
