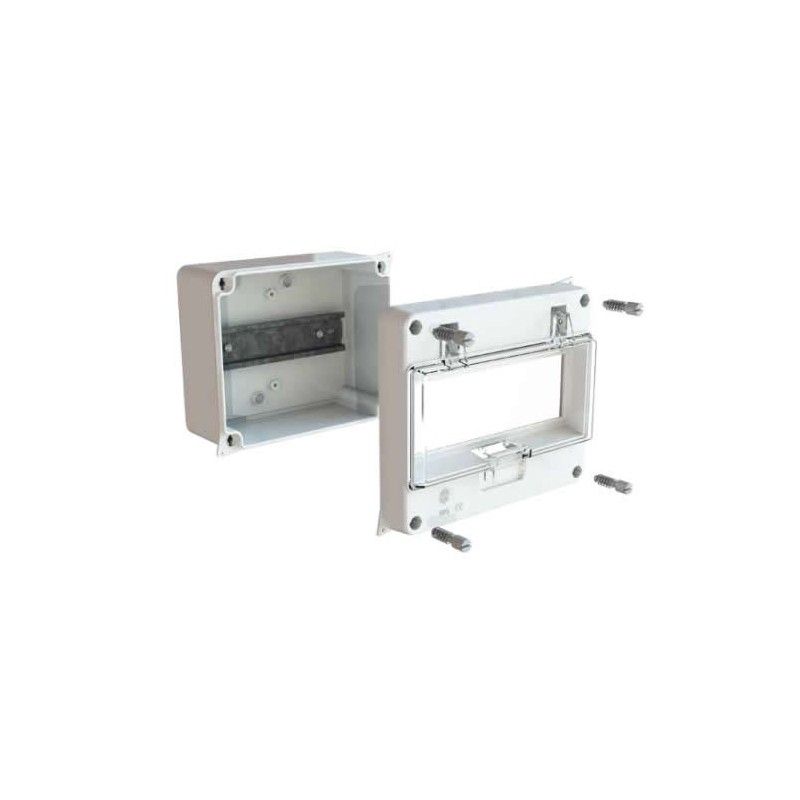

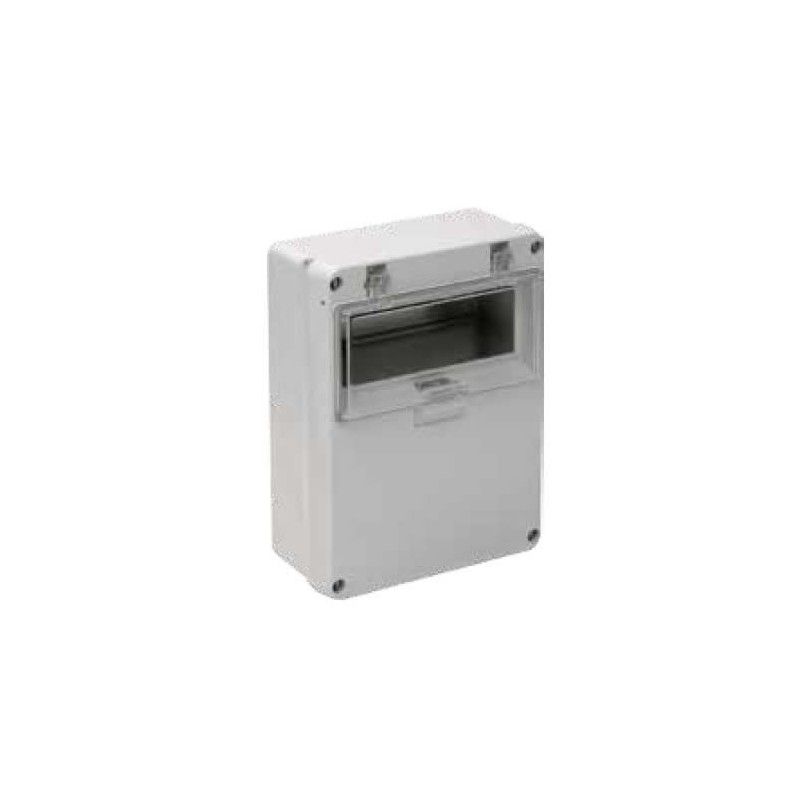

Cuadro eléctrico estanco 8 elementos IP54 Solera 897
Cuadro eléctrico estanco 8 elementos IP54 Solera 897
Cuadro eléctrico estanco 8 elementos IP54 Solera 897
Cuadro eléctrico estanco 8 elementos IP54 Solera 897

Waterproof electrical panel 8 elements IP54 Solera 897

  • Colour Grey
  • Protection IP54
SOLERA 897
Out of stock
€28.82
VAT included

Switchboard tight for 8 elements

Surface installation

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

Cuadro eléctrico estanco 8 elementos IP54 Solera 897

Características generales

ABS+ Policarbonato
Precintable
Carril DIN metálico
Instalación rápida

Información técnica

Conforme a la Directiva 2014/35/UE.
Conforme a la Directiva vigente (RoHS).
Normativa UNE-EN 62208 y UNE-EN 61439-1 y 3.
Resistencia al fuego 650ºC.
Grado de protección IP54.
Resistencia mecánica IK07.
Material libre de halógenos.
Color gris RAL 7035.
Precintables.
Con paredes lisas.

Product Details

EAN 8423220008977
Manufacturer Solera
Reference SOLERA 897
Protection IP54
Type of installation Surface
High 180
Width 230
Depth 80
Colour Grey
Material Policarbonato

Reviews (0)

No reviews

GPSR

Fabricante SOLERA
Dirección postal Carrer de Pere IV, 454, 08020 Barcelona, España
Contacto electrónico [email protected]
Teléfono +34 933069490
Referencia SOLERA 897
EAN 8423220008977
