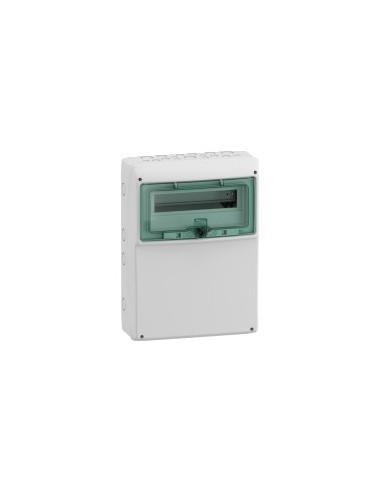

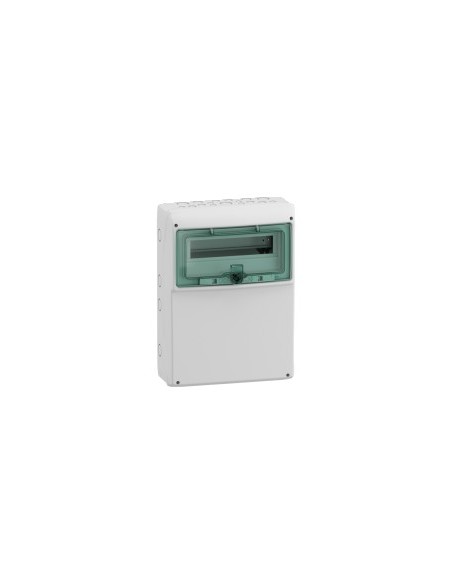

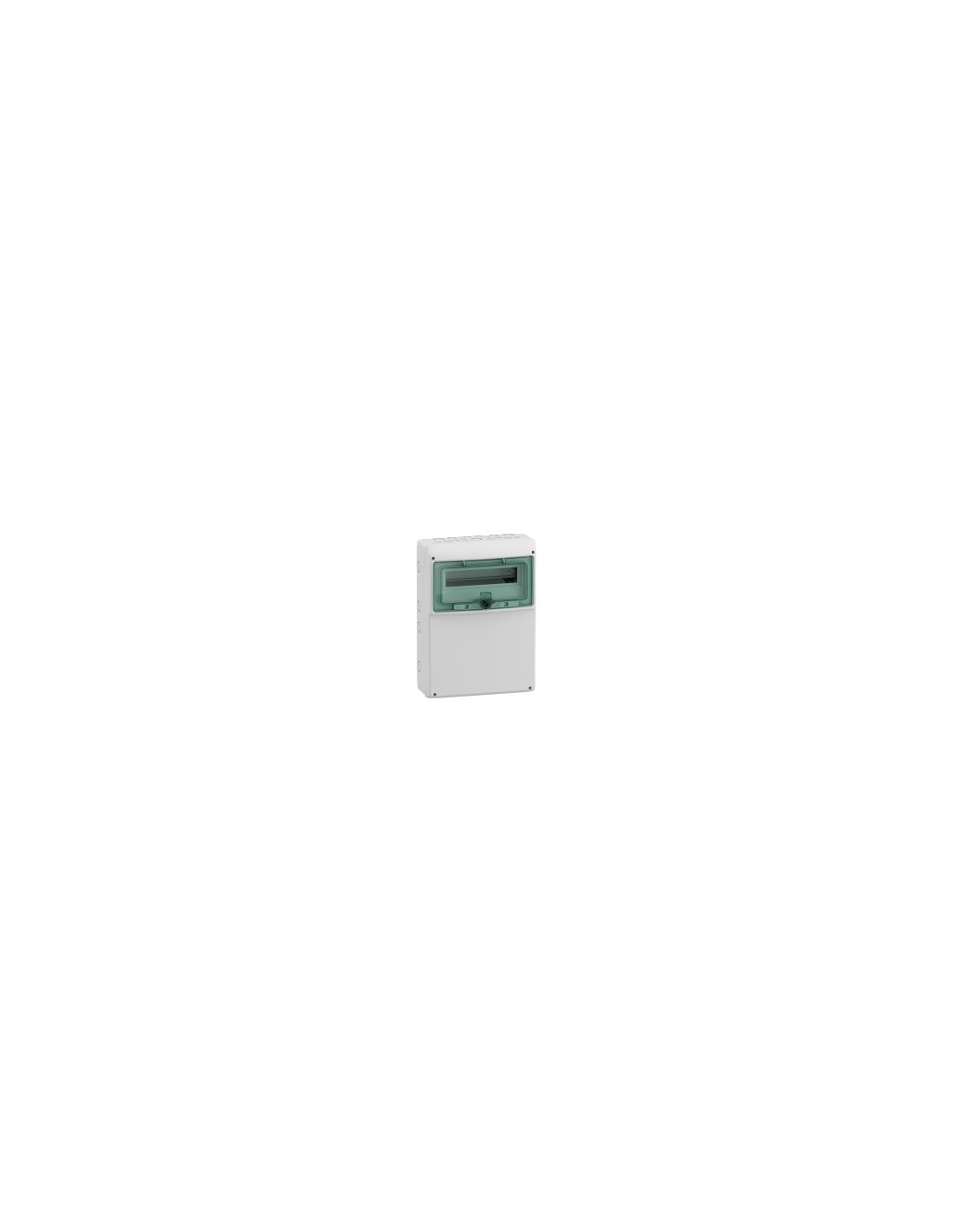

Mureva Waterproof Enclosure 12 Modules 340x460 mm

Multipurpose housing for Mureva type power supply, designed for industrial and commercial installations. Its versatile structure allows the integration of up to 12 18 mm modules into a single row, with surface mounting and DIN rail support. Ideal for electrical distribution in demanding environments, thanks to its IP65 protection and IK09 resistance.

Technical characteristics

• Number of 18 mm modules per row: 12
• Total number of 18 mm modules: 12
• Number of horizontal rows: 1
• 9 mm steps: 24
• Nominal current [In]: 63 A
• Electrical insulation class: Double isolation Class II
• Degree of IP protection: IP65 according to Enable / Deactivate Ig
• Level of protection IK: IK09 according to H
• Fire resistance: 750 °C according to IEC 60695-2-1
• Operating ambient temperature: -25...60 °C
• Power dissipation: 23 W
• Envelope material: Self-extinguishing polymer
• Colour: Door, status 1 transparent green; Wrapper, status 1 light grey (RAL 7035)
• Standards: EN 50262, IEC 670, IEC 60439-3
• Overvoltage category: II
• UV resistance: State 1, Class 3 according to ISO 4582:2010
• Ultraviolet degradation test: ISO 4892-2:2013
• Number of dies PG ISO: 17
• Rail type: DIN
• Description of locking options: Optional lock
• Depth: 160 mm
• Internal depth: 91 mm
• Height: 460 mm
• Width: 340 mm
• REACh Regulation: Reference does not contain SVHC
• EU RoHS Directive: Proactive (out-of-scope) compliance
• RoHS China Regulations: Outside the scope
• No mercury: Yes
• Information on RoHS exemptions: Yes
