Showing 301-312 of 6376 item(s)

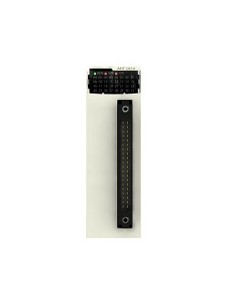

Analogue input module 4 channels isolated temperature

Available

Industrial automation

Analogue input module 4 channels isolated temperature

IMPO BMXART0414

4-channel analogue input module with galvanic insulation, compatible with input voltages of ±1.28 V, ±160 mV up to ±640 mV, resistances of 400 and 4000 ↔, and temperature sensors thermocouple type (B, E, J, K, L, N, R, S, T, U) and RTD (Pt100, Pt1000, Ni100, Ni1000).

Available

Industrial automation

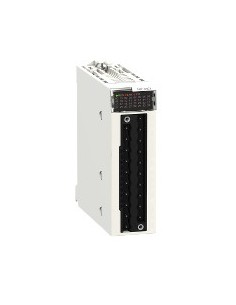

8-channel 16-bit analog output module

IMPO BMXAMO0802

€764.21

Analog output module for industrial automation systems, with 8 power outputs in configuration 0...20 mA and 4...20 mA. 16 bit resolution, maximum conversion time of 4 ms, without insulating between channels.

Available

Industrial automation

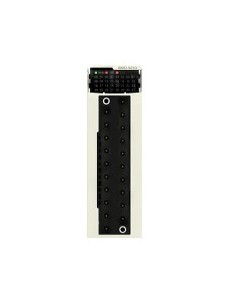

4-channel isolated analog output module

IMPO BMXAMO0410

€724.02

4-channel analog output module for Modicon X80 system, with galvanic insulation between channels and earth. It supports current signals 0...20 mA and 4...20 mA, and voltage ±10 V. 15 bit resolution + signal, conversion time ≤ 1 ms.

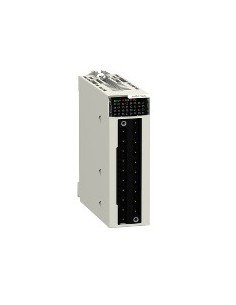

Mixed analog I/O module 4 inputs 2 outputs

Available

Industrial automation

Mixed analog I/O module 4 inputs 2 outputs

IMPO BMXAMM0600

€551.64

Mixed analog I/O module for the Modicon X80 range, with 4 analog inputs and 2 analog outputs. It supports current signals (0...20 mA, 4...20 mA) and voltage (±10 V, 0...10 V, 0...5 V, 1..5 V). Input resolution up to 14 bits for ±10 V. Measurement accuracy 0.25% at 25 °C.

Analogue input module 8 channels isolated voltage and current

Available

Industrial automation

Analogue input module 8 channels isolated voltage and current

IMPO BMXAMI0810H

€1,065.71

8-channel analog input module for hard environments, with galvanic insulation, 16-bit resolution and 0.075% accuracy in voltages ±10 V. It supports current signals 4-20 mA, 0-20 mA and voltages 0-10 V, 0-5 V, 1-5 V.

8-channel isolated 16-bit analog input module

Available

Industrial automation

8-channel isolated 16-bit analog input module

IMPO BMXAMI0810

€737.43

Analogue 8 channel inlet module with galvanic insulation, compatible with current signals 0...20 mA, 4...20 mA and voltage ±10 V, 0...10 V, 0...5 V and 1..5 V. 16-bit analog-digital conversion, 15-bit resolution + sign, 0.075% accuracy at 25 °C and minimum 80 dB crosstalk attenuation.

8-channel non-isolated analog input module

Available

Industrial automation

8-channel non-isolated analog input module

IMPO BMXAMI0800

€611.15

8-channel analog input module for Modicon X80 systems, without insulation, with 16-bit resolution and 0.075% accuracy at 0...10 V and 0...5 V voltages. It supports current signals 0...20 mA and 4...20 mA, as well as voltages ±10 V and ±5 V.

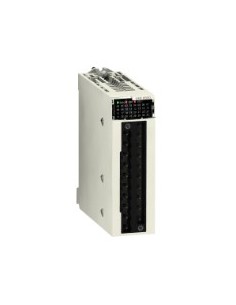

Analogue input module 4 channels isolated voltage and current

Available

Industrial automation

Analogue input module 4 channels isolated voltage and current

IMPO BMXAMI0410

€401.76

4-channel isolated analog input module, compatible with voltages of 0...10 V, 0...5 V, 1...5 V and currents of 0...20 mA, 4...20 mA, ±20 mA. 24-bit analog-to-digital conversion, 16-bit resolution, accuracy of 0.075% of full scale at 25 °C.

Available

Industrial automation

Rack frame 4 positions Modicon X80

IMPO BMEXBP0400

€227.73

Mounting frame for Modicon X80 systems with 4 slots for X and Ethernet interface modules. Compatible with I/O modules, BMXCPS and BMH power supply. Power supply at 3.3 V DC (162 mW) and 24 V DC (2.8 W). IP20 protection, operating between 0 and 60 °C.

Plug-in electromechanical relay 12.5 mm 24 V DC 1 NO

Available

Interface and miniature relays

Plug-in electromechanical relay 12.5 mm 24 V DC 1 NO

IMPO ABR7S33

€10.31

12,5 mm high plug-in electromechanical relay, designed to operate at 24 V DC voltage. It has a normally open contact (nanc) and is built for demanding industrial applications. It offers high reliability in switching cycles and is optimized for integration into control panels.

Safety Transformer 250 VA 230-400 V 24 V

Available

Transformers

Safety Transformer 250 VA 230-400 V 24 V

IMPO ABL6TS25B

€234.57

Safety and isolation transformer with a nominal power of 250 VA, input 230 V AC single-phase (N-L1) or 400 V AC three-phase (L1-L2), output 24 V AC single-phase.

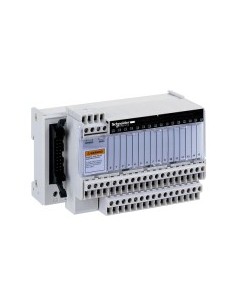

Passive I/O Base Modicon Atrium 16 Channels

Available

Industrial automation

Passive I/O Base Modicon Atrium 16 Channels

IMPO ABE7H16R20

€86.44

Passive I/O base for Modicon Atrium systems, with 16 channels and 2 terminals per channel. DC power supply 19...30 V, maximum current 1.8 A, with internal 2 A fuse. Connection via screw terminals, compatible with flexible and rigid cables. Polarity distribution 0 V or 24 V.
