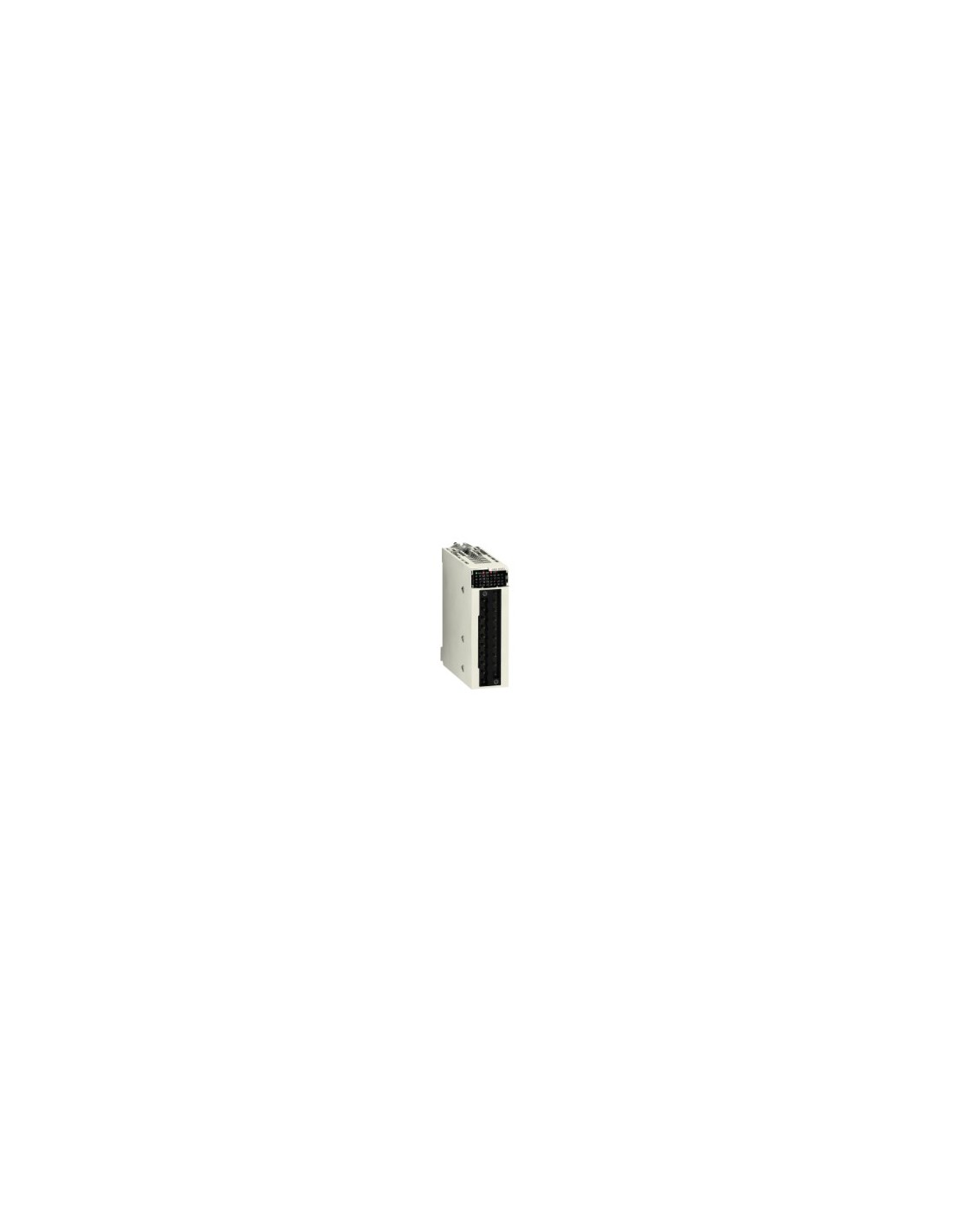

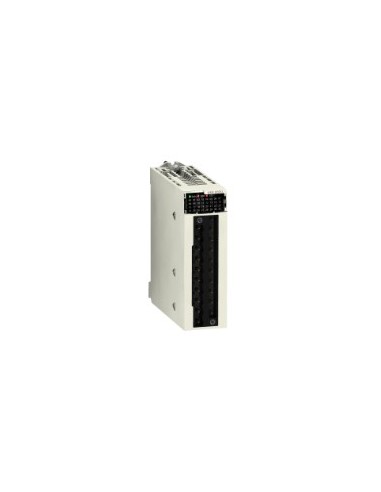

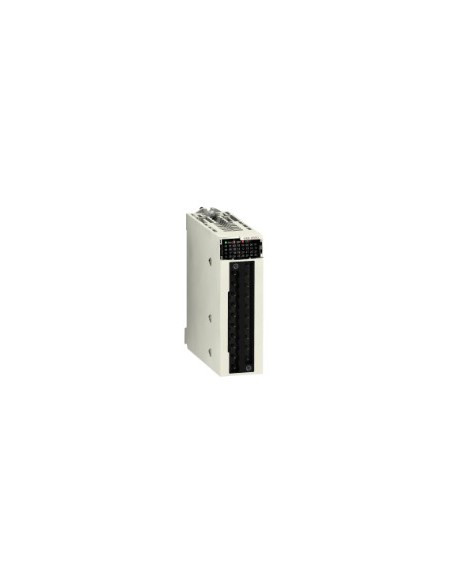

4-channel isolated analog input module designed for analog signal acquisition in industrial control systems of the Modicon X80 range. Allows connection of voltages and currents across multiple ranges, including ±10 V, ±5 V, 0...10 V, 0...5 V, 1...5 V, 0...20 mA, 4...20 mA, and ±20 mA.
Technical Features
- Number of analog inputs: 4
- Analog input type: Current ±20 mA, 0...20 mA, 4...20 mA, Voltage ±10 V, ±5 V, 0...10 V, 0...5 V, 1...5 V
- Analog-to-digital conversion: 24 bits
- Analog input resolution: 16 bits
- Measurement resolution: 0.35 mV (±10 V, ±5 V, 0...10 V, 0...5 V, 1...5 V), 0.92 µA (±20 mA, 0...20 mA, 4...20 mA)
- Maximum conversion value: ±11.4 V (±10 V, ±5 V, 0...10 V, 0...5 V, 1...5 V), 0...0.30 mA (±20 mA, 0...20 mA, 4...20 mA)
- Measurement error: 0.075% of full scale (±10 V, ±5 V, 0...10 V, 0...5 V, 1...5 V), 0.15% of full scale (±20 mA, 0...20 mA, 4...20 mA)
- Thermal drift: 15 ppm/°C (±10 V, ±5 V, 0...10 V, 0...5 V, 1...5 V), 30 ppm/°C (±20 mA, 0...20 mA, 4...20 mA)
- Filter: First-order digital
- Typical reading time: 5 ms for 4 channels
- Fast reading time: 1 ms + 1 ms × number of used channels
- Minimum crosstalk attenuation: 80 dB
- Common-mode rejection: 90 dB
- Calibration: Internal
- Digital value format: -32768 to +32767 (user-defined maximum scale), ±10000 by default
- Isolation: Galvanic between channels and ground, 1400 V DC between channels and busbar, 300 V DC between channels
- Power consumption: 0.82 W (typical 24 V DC), 1.30 W (maximum 24 V DC), 0.32 W (typical 3.3 V DC), 0.48 W (maximum 3.3 V DC)
- Vibration resistance: 3 gn
- Shock resistance: 30 gn
- Operating ambient temperature: 0…60 °C
- Storage ambient temperature: -40…85 °C
- Relative humidity: 5…95% at 55 °C without condensation
- Protection rating IP: IP20
- Status LED: RUN (green), Channel Diagnostics (green), ERR (red), I/O (red)
- Weight: 0.143 kg
- Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
- Certifications: CE, RCM, CSA, UL, Merchant Navy generator
- Standards: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
- Sustainability status: Green Premium product
- REACH: No SVHC
- RoHS EU: Proactive compliance (out of scope)
- RoHS exemption: Yes
- WEEE: Must be recycled according to specific system in the EU
