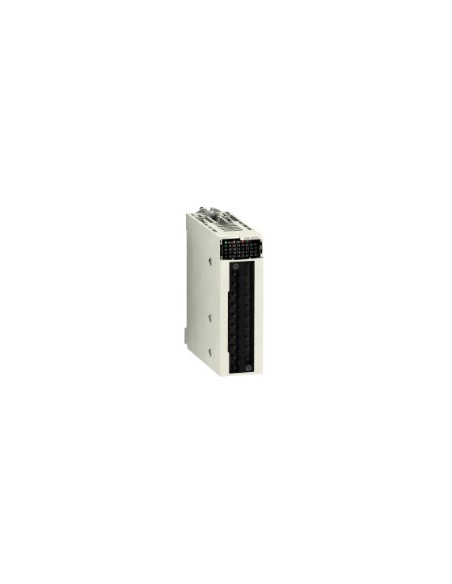

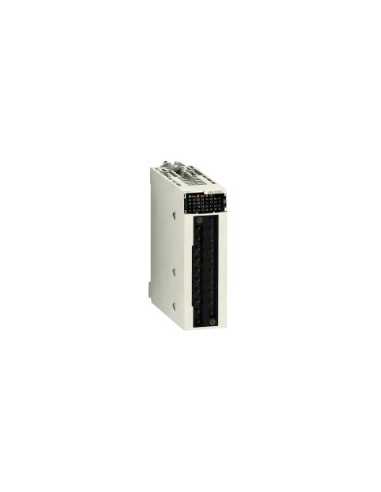

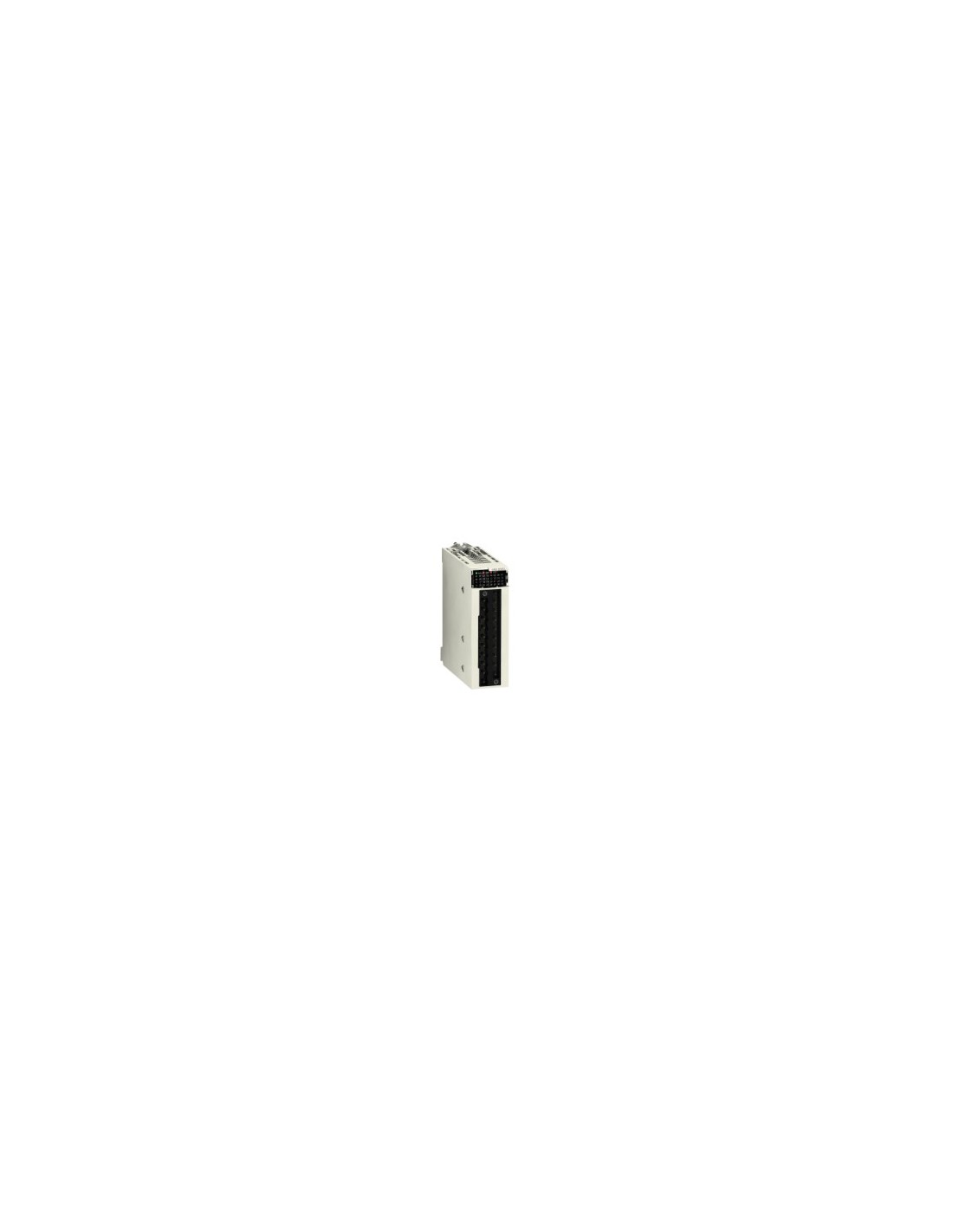

8-channel non-isolated analog input module

8-channel analog input module for Modicon X80 systems, designed for the acquisition of analog signals without insulation. Compatible with voltages and currents in standard ranges, it allows direct integration into industrial control environments.

Technical characteristics

• Number of analogue entries: 8
• Analogue input type: Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage +/- 5 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1..5 V
• Analog/digital conversion: 16 bits
• Analog input resolution: 15 bits + sign
• Measurement resolution: 0.36 mV (±10 V, 0...10 V, 0...5 V, 1..5 V), 1.4 μA (±20 mA, 0...20 mA, 4...20 mA)
• Measurement errors: 0.15% full scale (±20 mA, 0...20 mA, 4...20 mA), 0.075% full scale (±10 V, 0...10 V, 0...5 V, 1..5 V, ±5 V)
• Operating temperature: 0...60 °C
• Storage temperature: -40...85 °C
• Relative humidity: 5...95 % at 55 °C without condensation
• Degree of protection: IP20
• Power consumption: 0.90 W (24 V DC typical), 0.32 W (3.3 V DC typical)
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Maximum operating altitude: 0...2000 m (up to 5000 m with reduction)
• Status LED: RUN (green), Diagnostic channel (green), ERR (red), I/O (red)
• Connection: 28 tracks, 1 connector
• Calibration: Factory
• Common rejection: 100 dB
• Minimum crosstalk attenuation: 80 dB
• Filter: First-order digital
• Nominal reading time: 9 ms for 8 channels
• Quick reading time: 1 ms + 1 ms × number of channels used
• Maximum conversion value: ±11.4 V (±10 V, 0...10 V, 0...5 V, 1..5 V), 0.30 mA (±20 mA, 0...20 mA, 4...20 mA)
• Input resistor: 10 Ms in voltage mode, 250s in current mode
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Certifications: CE, RCM, CSA, UL, Merchant Navy generator
• Standards: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
• Product Green Premium
• According to REACh without SVCH
• EU RoHS Directive: Proactive (out-of-scope) compliance
• No mercury
• RoHS exemptions: Yes
• WEEE: Waste according to specific system in EU
