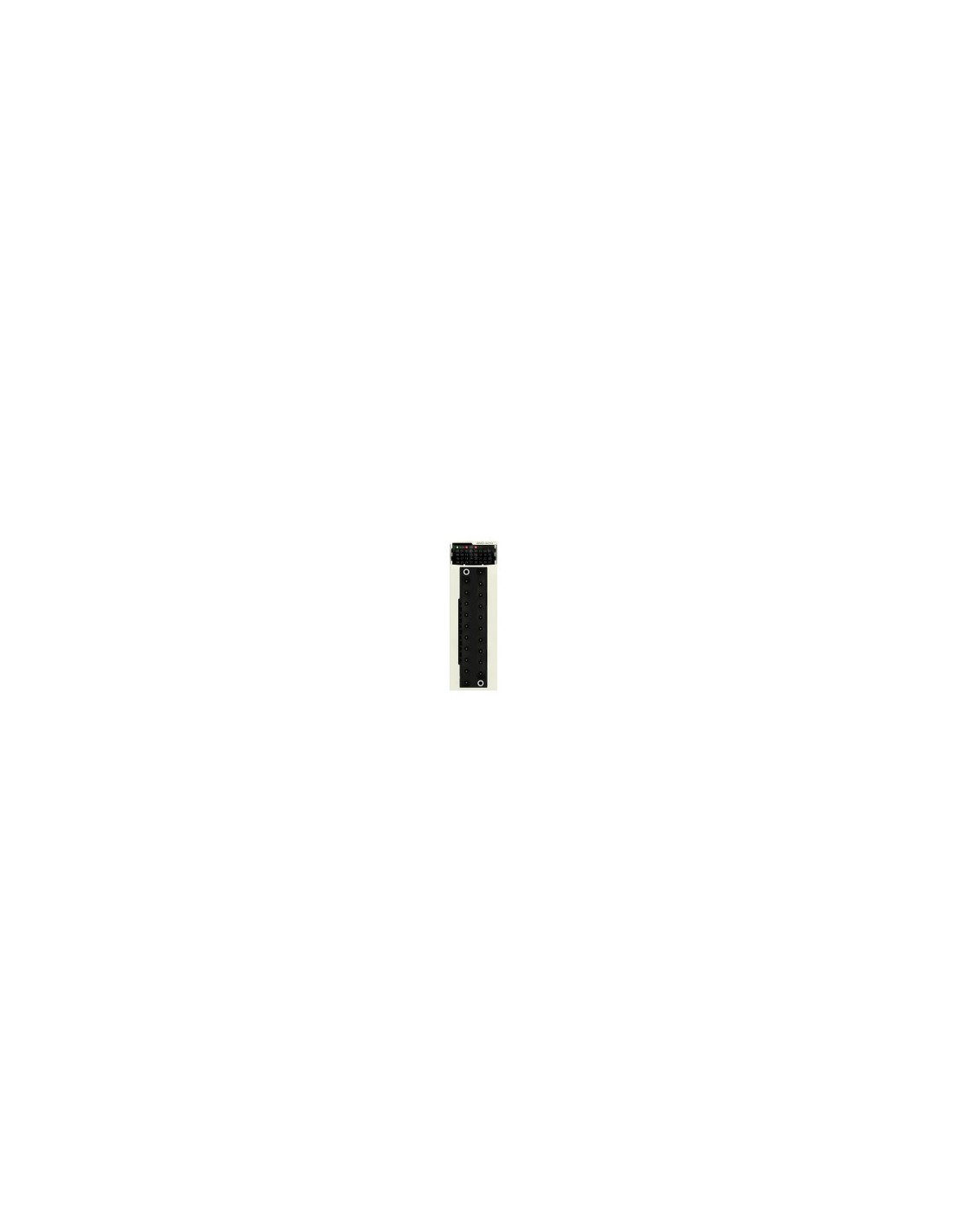

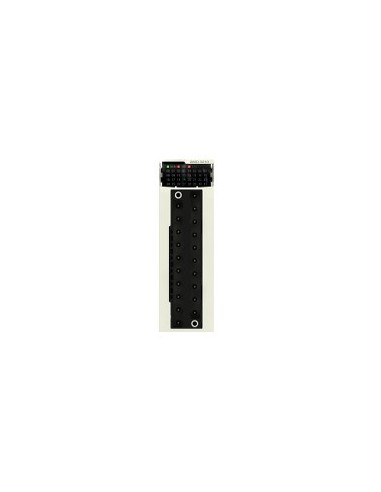

4-channel isolated analog output module

Module analog output of the Modicon X80 range, designed for industrial applications with 4 independent analog outputs. It offers insulation between channels and barrage, ensuring stability in electromagnetically aggressive environments.

Technical characteristics

• Number of analogue outputs: 4
• Analogue output type: Current (0...20 mA, 4...20 mA), Voltage (+/- 10 V)
• Analog output resolution: 15 bits + signal
• Power supply: Internal power supply via rack
• Conversion time: ≤ 1 ms
• Load impedance: ≥ 1000 for ±10 V, ≤ 500 for 4...20 mA
• Insulation: Isolated
• Minimum crosstalk attenuation: 80 dB
• Common rejection: 100 dB
• Insulation voltage: 1400 V DC between channels and ground, 1400 V DC between channels and bar, 750 V DC between channels
• Operating temperature: 0...60 °C
• Storage temperature: -40...85 °C
• Relative humidity: 5...95 % at 55 °C without condensation
• Degree of IP protection: IP20
• Typical consumption: 3 W (24 V DC), 0.45 W (3.3 V DC)
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Maximum operating altitude: 0...2000 m, 2000..5000 m with
• Status LED: RUN (green), Channel Diagnosis (green), ERR (red), I/O (red)
• Weight: 0.15 kg
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Certifications: CE, RCM, CSA, UL, Merchant Navy generator
• Standards: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
• Sustainable State: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive (out-of-scope) compliance
• No mercury: Yes
• RoHS exemptions: Yes
• WEEE: Must be recycled according to specific system in the EU
