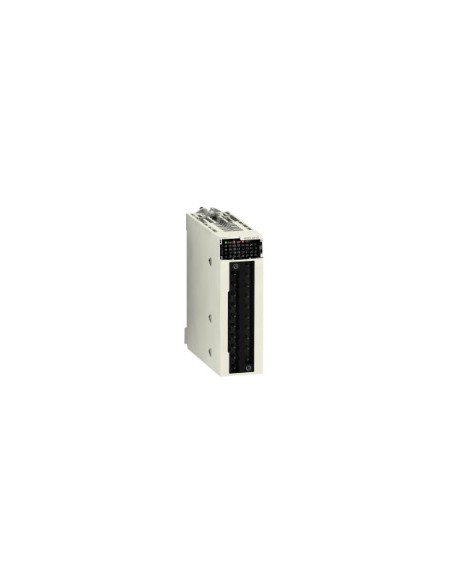

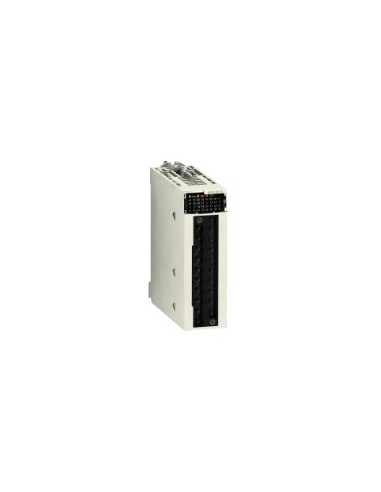

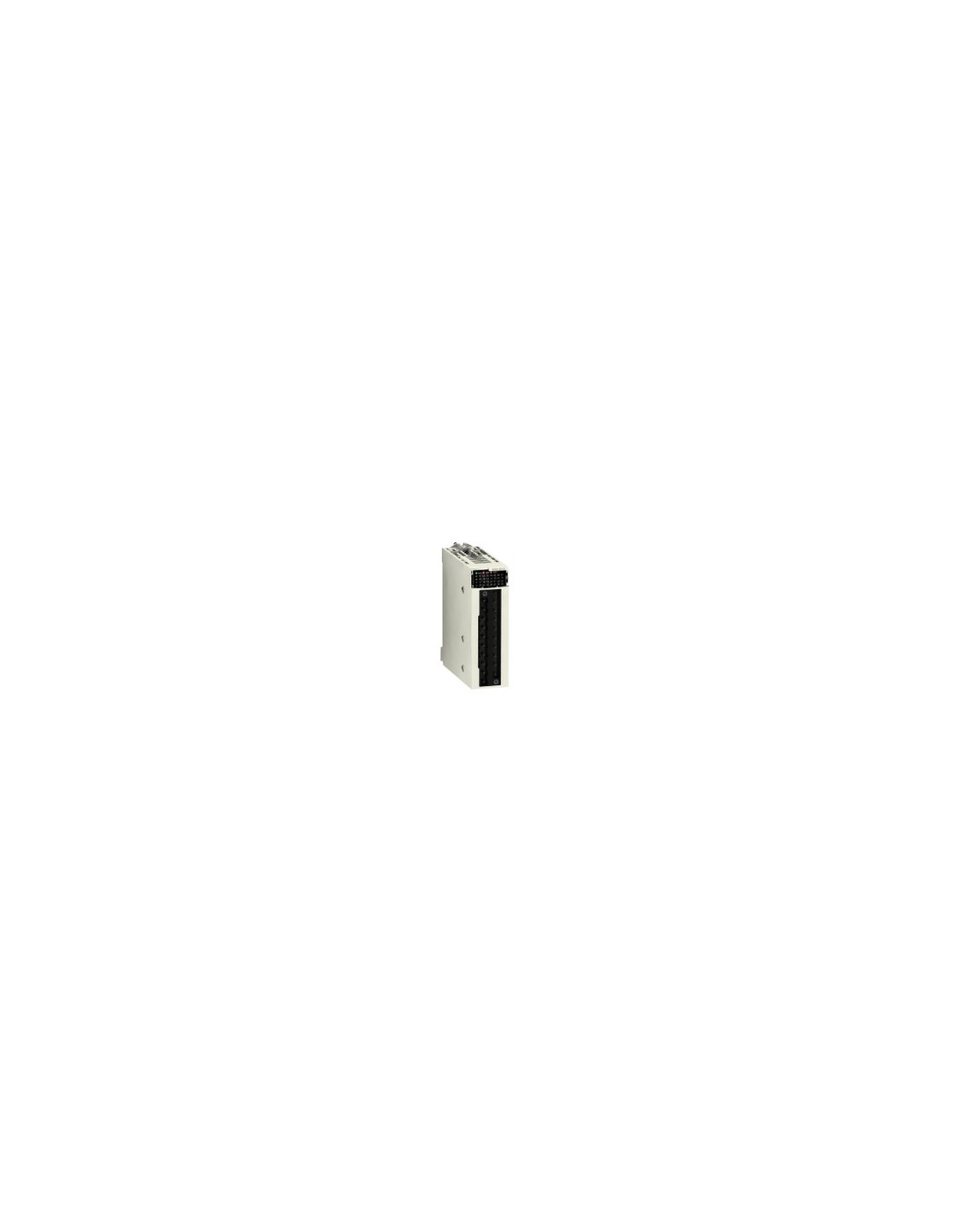

2-channel analog output module for Modicon X80 system, with galvanic insulation between channels and earth. Designed for industrial applications, it allows to configure each channel as a current output (0...20 mA, 4...20 mA) or voltage (±10 V), with 15 bit resolution + signal. Ideal for integration into automated control systems that require precision in industrial environments.
Technical characteristics
- Analogue output number: 2
- Analogue output type: Current (0...20 mA, 4...20 mA), Voltage (±10 V)
- Analog output resolution: 15 bits + signal
- Power supply: Internal power supply via rack
- Conversion time: ≤ 1 ms
- Measurement error: 0...60 °C, 25 °C, 0.1% full scale
- Temperature change: 30 ppm/°C
- Recalibration: Factory Calibration
- Minimum crosstalk attenuation: 90 dB
- Common rejection: 100 dB
- washer contact: 1400 V DC between channels and earth, 1400 V DC between channels and barrack, 750 V DC between channels
- Load ohmic impedance: ≥ 1000 Ohm for ±10 V
- Type of detection: Open circuit (0...20 mA, 4...20 mA), Curto-circuit (±10 V)
- Maximum conversion value: ±10 V, ±11.25 V, 0...20 mA, 0...0,24 mA, 4...20 mA, 0...0,24 mA
- Contingency mode: Default, Configurable
- Maximum operating altitude: 0...2000 m, 2000..5000 m with
- Status LED: RUN (green), Channel Diagnosis (green), ERR (red), I/O (red)
- Operating ambient temperature: 0...60 °C
- Storage ambient temperature: -40...85 °C
- Relative humidity: 5...95 % at 55 °C without condensation
- Degree of IP protection: IP20
- Vibration resistance: 3 gn
- Shock resistance: 30 gn
- Weight of product: 0.144 kg
- Power consumption: 2.1 W (24 V cc typical), 2.8 W (24 V cc maximum), 0.35 W (3.3 V cc typical), 0.48 W (3.3 V cc maximum)
- Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
- Certifications: CE, RCM, CSA, UL, Merchant Navy generator
- Standards: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
- Sustainable supply status: Product Green Premium
- REACh Regulation: Do not contain SVHC
- According to REACh without SVCC: Yes
- EU RoHS Directive: Proactive (out-of-scope) compliance
- No mercury: Yes
- Information on RoHS exemptions: Yes
- RoHS China Regulations: X
- WEEE: To be discarded according to specific system in the EU, not in garbage containers
