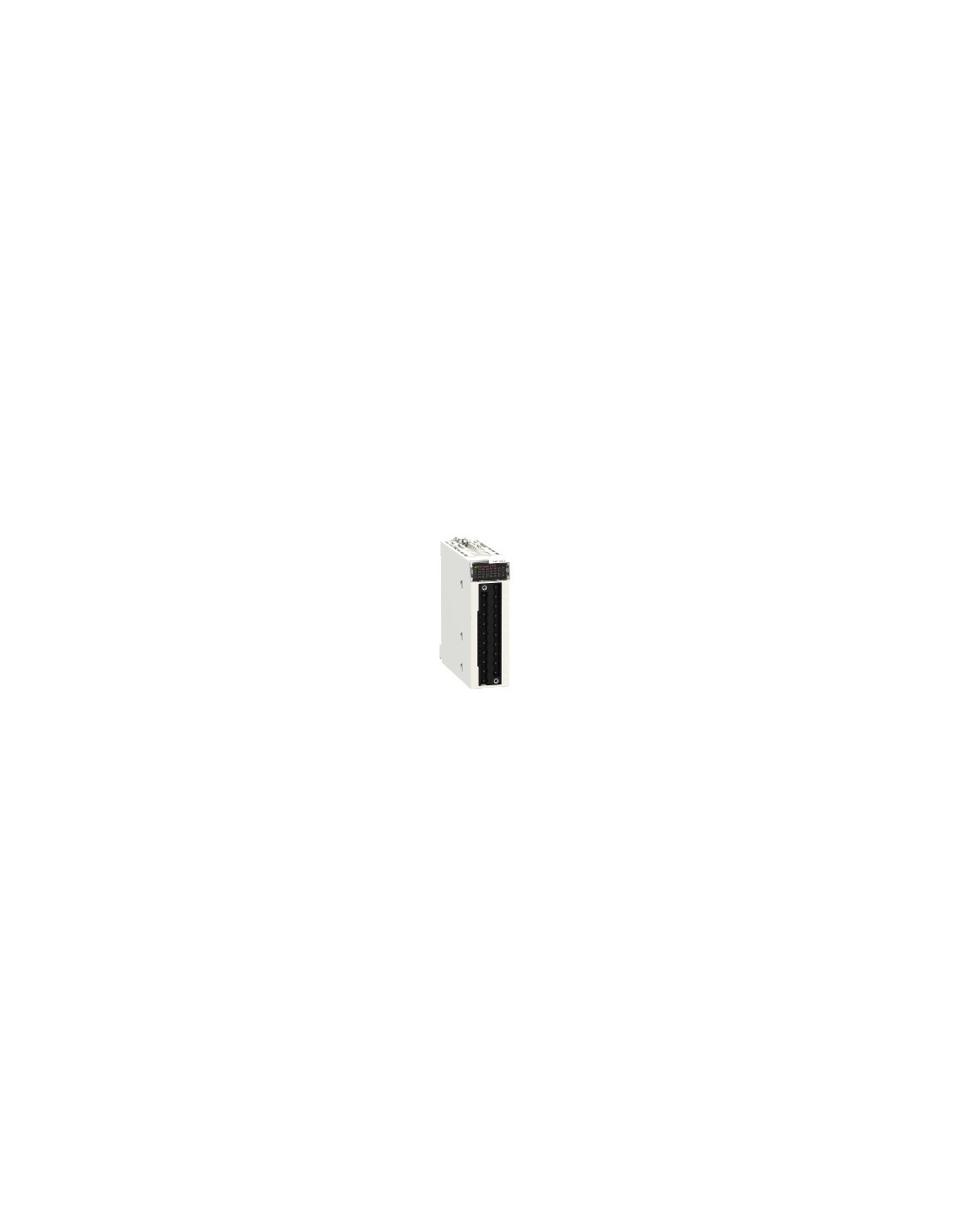

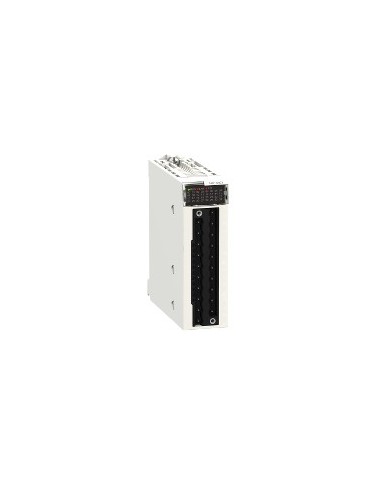

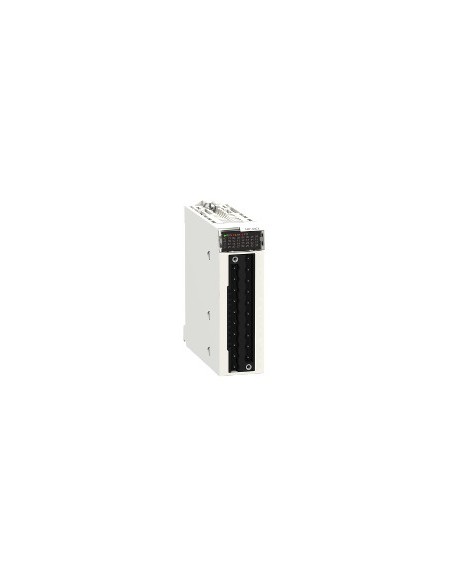

8-channel 16-bit analog output module

Analog output module of the Modicon X80 range, designed for industrial automation systems. It allows to control up to 8 analog outputs with flexible configuration for 0...20 mA or 4...20 mA, ideal for integration in industrial environments.

Technical characteristics

• Number of analogue outputs: 8
• Analogue output type: Current, status 1 (0...20 mA / 4...20 mA)
• Analog output resolution: 16 bits
• Analog input resolution: 16 bits
• Measurement error: 0.1% of full scale at 25 °C
• Temperature change: 45 ppm/°C (0...20 mA and 4...20 mA)
• Minimum crosstalk attenuation: 80 dB
• Common rejection: 80 dB
• Load impedance: ≤ 350 ↔ (4...20 mA)
• Conversion time: ≤ 4 ms
• Power supply: Internal source via rack
• Power consumption: 3.6 W (24 V DC typical), 3.9 W (maximum), 0.35 W (3.3 V DC typical), 0.48 W (maximum)
• Degree of protection: IP20
• Operating ambient temperature: 0...60 °C
• Storage ambient temperature: -40...85 °C
• Relative humidity: 5...95 % at 55 °C without condensation
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Maximum operating altitude: 0...2000 m (2000...5000 m with)
• Connection: 20 tracks, 1 connector
• Insulation: Not isolated
• Status LED: RUN (green), Channel Diagnosis (green), ERR (red), I/O (red)
• Weight: 0.15 kg
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Certifications: CE, RCM, CSA, UL, Merchant Navy generator
• Standards: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
• Sustainable supply status: Product Green Premium
• REACh Regulation: Do not contain SVHC
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive (out-of-scope) compliance
• No mercury: Yes
• RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: To be discarded by specific system in the EU
