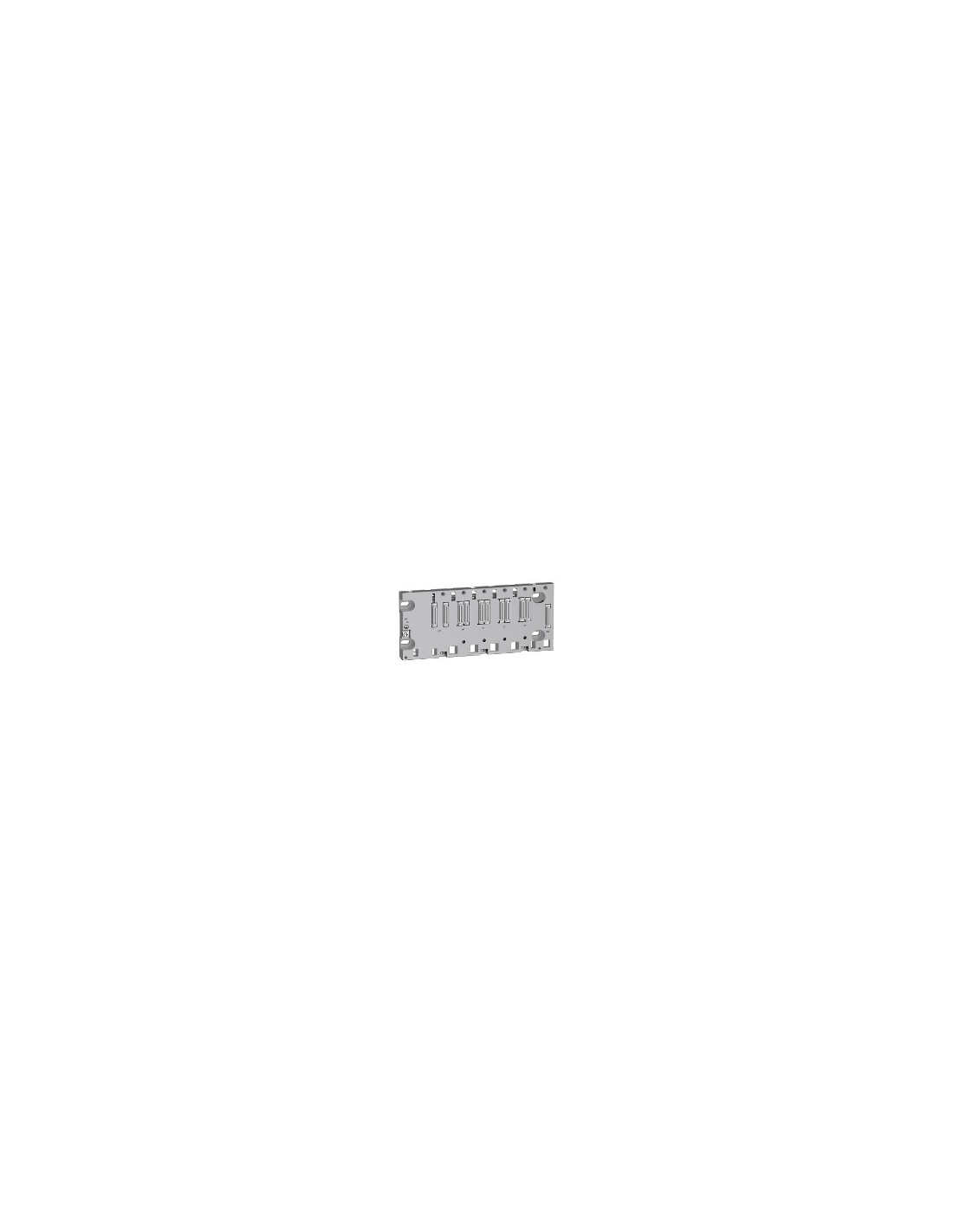

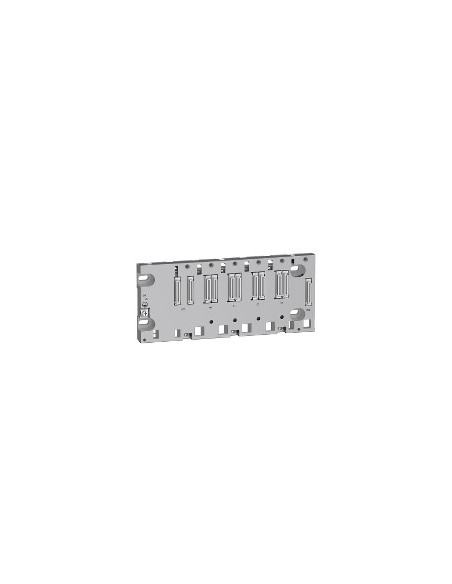

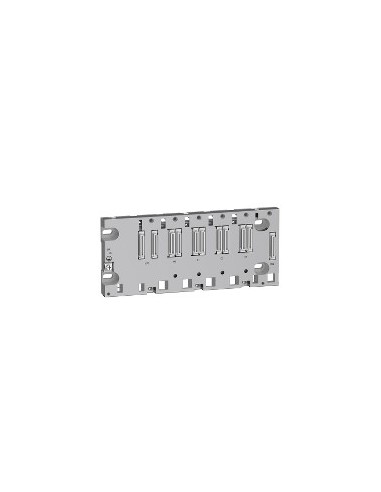

Rack frame 4 positions Modicon X80

Mounting frame for Modicon X80 systems, designed to accommodate up to four modules in consecutive configuration using an expansion XBE connector.

Technical characteristics

• Product range: Modicon X80 ((*))
• Accessory/component type: Bastador
• Number of slots: 4 X bus + Ethernet
• Product compatibility: Module I/O Body Specific application module Power supply source BMXCPS BMH
• W power consumption: 162 mW to 3.3 V DC current, 2.8 W to 24 V DC current
• Current consumption: 49 mA to 3.3 V DC, 118 mA to 24 V DC
• Consecutive, followed, continuous, attached: 1 connector (XBE) expansion module
• Fixing mode: With 4 screws - diameter: 4.32...6.35 mm, panel mounting with 4 M6 parafuses, plate mounting with clips, symmetric DIN rail mounting with 35 mm
• Reliability MTBF: 2000000 H
• Weight of product: 0.705 kg
• Degree of IP protection: IP20
• Operating ambient temperature: 0...60 °C
• Relative humidity: 5...95 % without condensation
• Directives: 2014/35 / EU - low voltage directive, 2014/30 / EU - electromagnetic compatibility
• Sustainable supply status: Product Green Premium
• REACh Regulation: Reference does not contain SVHC
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive compliance (out-of-scope product of RoHS EU)
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
