NS1000L 150kA 4P 1000A Fij Man 5.0
NS1000L 150kA 4P 1000A Fij Man 5.0

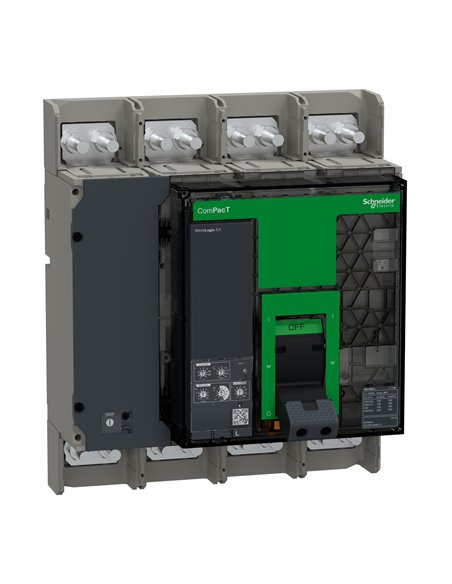

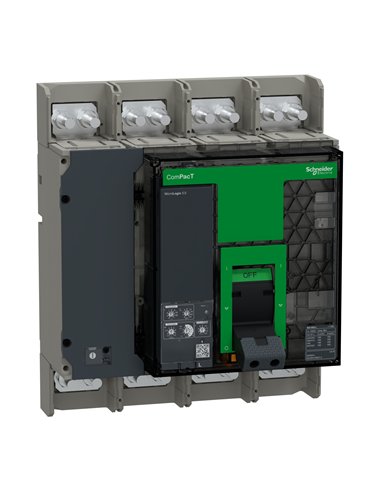

SCHNEIDER 1000 A 4P 150 kA fixed manual circuit breaker with electronic technology

IMPO C100L450FM
Last items in stock
€8,139.22
VAT included
The next-generation ComPacT NS1000L circuit breaker offers a breaking capacity of 150 kA and a rated current of 1000 A. Designed for distribution applications, it features four poles and manual control, ensuring reliable performance in demanding industrial environments.
1 Item

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The ComPacT NS1000L circuit breaker is a new generation distribution device, designed to provide efficient and reliable protection in electrical systems. With a rated current of 1000 A and a breaking capacity of up to 150 kA, this model is suitable for industrial applications requiring high performance and safety.

  • Range: New Generation ComPacT
  • Type: 4-pole (4P) circuit breaker
  • Rated current: 1000 A at 50 °C
  • Rated operating voltage: 690 V AC, 50/60 Hz
  • Breaking capacity: 150 kA Icu at 220/240 V AC
  • Control unit: Micrologic 5.0 A, electronic technology
  • Protection functions: LSI (overload, short circuit, and instantaneous protection)
  • Mounting mode: Fixed
  • Mechanical durability: 10,000 cycles
  • Degree of protection: IP40
  • Operating temperature: -25 to 70 °C
  • Weight: 18 kg

Product Details

EAN 3606482100350
Reference IMPO C100L450FM
