Description

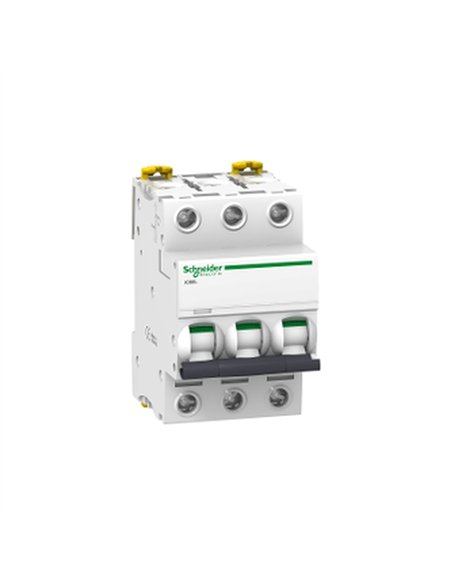

The Acti 9 iC60 RCBO is a high-efficiency miniature circuit breaker designed for applications with currents above 0.1 A. It belongs to the Acti 9 range and is characterized by its robustness and reliability in protecting electrical circuits. This device, with 3 poles, offers a rated current of 20 A and is suitable for AC and DC networks.
The thermal-magnetic tripping technology ensures a fast response to overloads and short circuits, while its breaking capacity of up to 70 kA at various voltages ensures effective protection under adverse conditions.
With its switching capacity and contact position indicator, the iC60L is ideal for residential and small commercial environments. Key technical features include: Mains frequency: 50/60 Hz, Rated operating voltage: 220-240 V AC, 380-415 V AC, 440 V AC, Breaking capacity: up to 25 kA, Ingress protection class: 3 according to EN 60898-1, Protection rating: IP20, Operating temperature: -35-70 °C, Mechanical durability: 20,000 cycles, Connections: single terminal for rigid cables up to 25 mm², Mounting: fixed on DIN railThe Acti 9 iC60L 3P 20A Z is a reliable solution for the protection of electrical circuits, guaranteeing safety and efficiency in its operation.
Product Details
| Curve | Z |
|---|---|
| EAN | 3606480085598 |
| Manufacturer | SCHNEIDER |
| No. of poles | 3P |
| Reference | SCHNEIDER A9F92320 |
| Rated current (A) | 20 A |
Reviews (0)
GPSR
| Fabricante | Schneider Electric España, S.A. |
|---|---|
| Dirección postal | Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona |
| Contacto electrónico | [email protected] |
| Teléfono | +34 930289900 |
| Referencia | IMPO A9F92320 |
| EAN | 3606480085598 |
