INT.AUT LEGRAND TX3 1PN 20A C 6000A ACC
Circuit breaker TX3 6kA-CP + N 20A
INT.AUT LEGRAND TX3 1PN 20A C 6000A ACC
Circuit breaker TX3 6kA-CP + N 20A

Circuit breaker TX3 6kA-CP + N 20A

LEGRAND 403587
Available
€11.06
VAT included

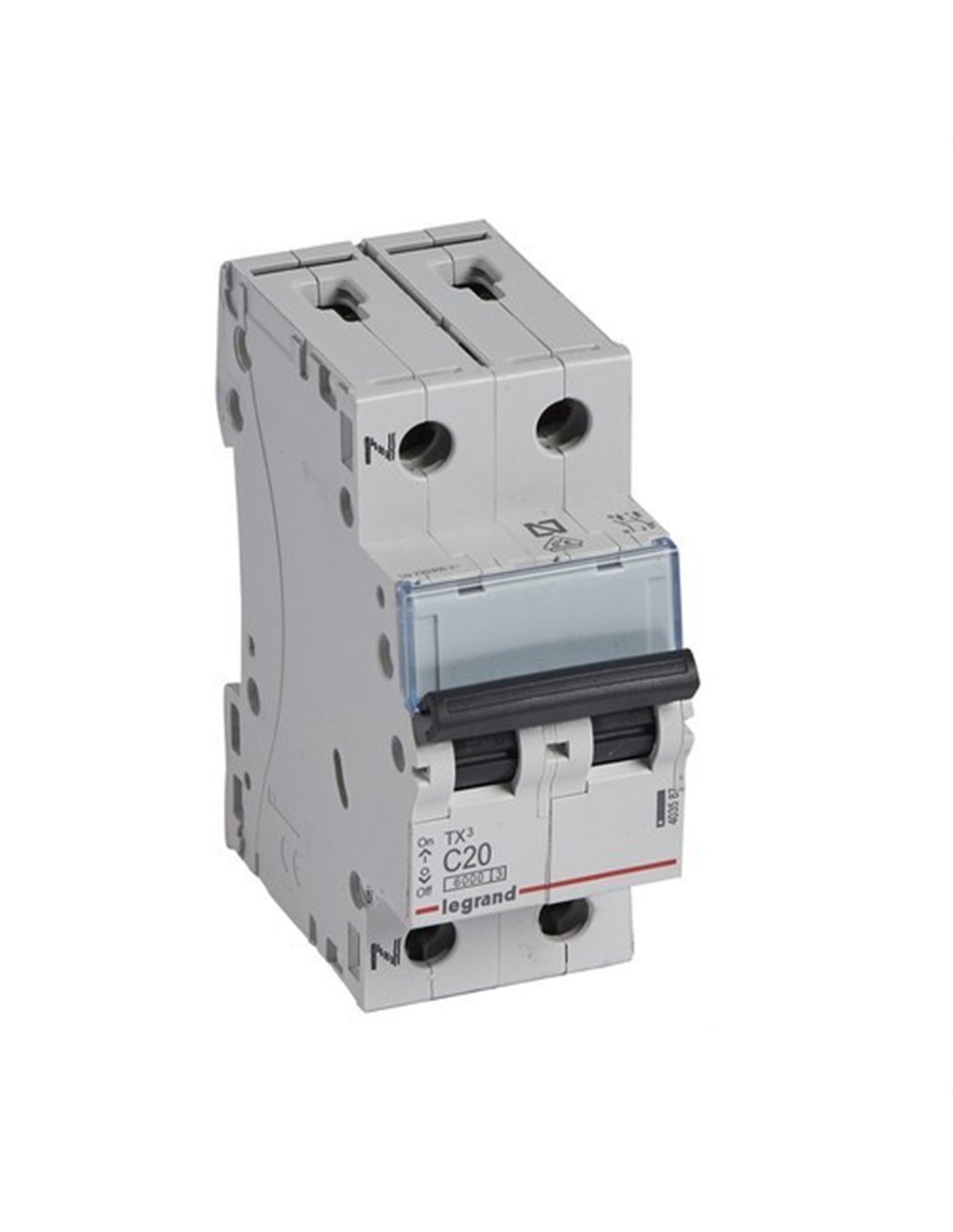

The TX3 6KA-C Circuit Breaker is a 2-pole + neutral circuit breaker, with a nominal intensity of 20A and a breaking capacity of 6000A. This product complies with the UNE EN-60898-1 standard and is equipped with terminals protected against direct contact and captive screws. In addition, it has a terminal capacity of 25 mm² flexible/35 mm² rigid and can be equipped with motorized controls and auxiliary control and signaling DX³.

Technical characteristics:

  • Type: TX3 6KA-C circuit breaker
  • Configuration: 2 poles + neutral
  • Nominal voltage: 230 V~
  • Nominal current: 20A
  • Number of modules: 2
  • Curve: C
  • Breaking capacity: 6000A
  • Standard: UNE EN-60898-1
  • Connection: terminals protected against direct contact (IP20)
  • Captive screws
  • Incorporated label holder
  • Terminal capacity: 25 mm² flexible/35 mm² rigid
  • Compatible with motorized controls and DX³ control and signaling auxiliaries.
235 Items

Order now and receive it...

11-05-2026  with  MRW

between 11-05-2026 and 12-05-2026  with  Correos

Product Details

High
77,8
Width
35,4
Curve
C
EAN
3245064035873
Manufacturer
LEGRAND
Intensity
20
# Elements
2
No. of poles
1P+N
Weight (kg)
0
Protection
IP20
Reference
LEGRAND 403587
Nominal voltage (V)
230V
