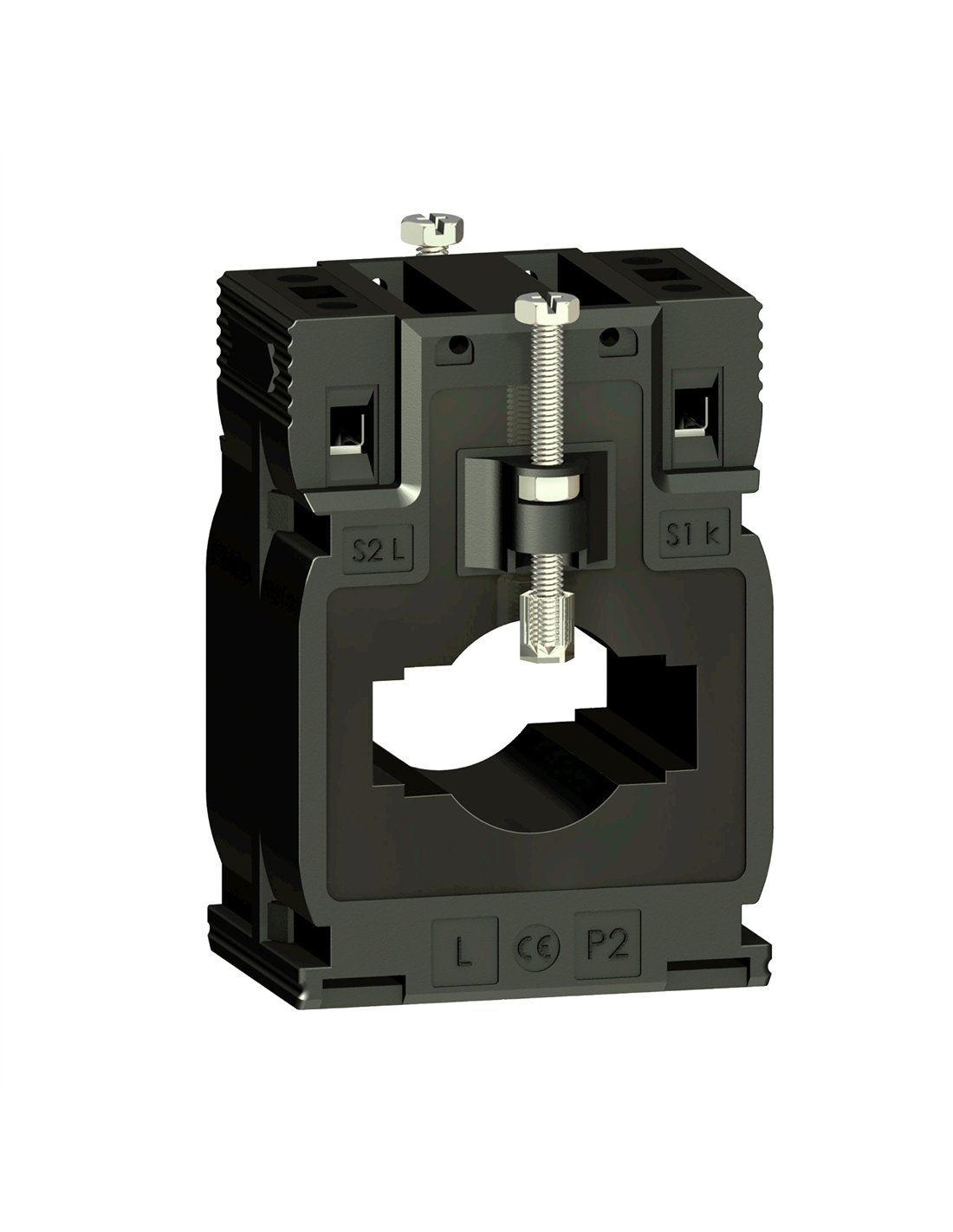

Schneider Electric METSECT 400A Tropicalized Current Transformer 26mm Class 0.5

The Schneider Electric METSECT current transformer is a tropicalized device designed to operate in harsh environments and deliver reliable performance. This transformer, with a 400A input and a 400:5 turns ratio, provides high accuracy and adaptability, allowing for multiple mounting options that facilitate its installation in various configurations.

• Product Type: Solid Core IEC Current Transformer
• Rated Input Current: 400 A
• Turns Ratio: 400:5
• Accuracy Class: Class 0.5 at 6 VA and Class 1 at 8 VA
• Secondary Current: 5 A
• Rated Operating Voltage: <720 V AC 50/60 Hz
• Rated Insulation Voltage: 3 kV for 1 minute
• Protection Rating: IP20
• Operating Temperature Range: -25 to 60 °C
• Relative Humidity: 0 to 95% %
• Dimensions: 60 mm (width) x 85 mm (height) x 43 mm (depth)
• Weight: 0.348 kg

This tropicalized transformer is ideal for hardware and electronics applications where a reliable device capable of operating in extreme environmental conditions is required. Its compact design and adaptability to different conductor sizes make it a versatile solution for professional installations. Furthermore, with an accuracy class of Class 0.5 at 6 VA and Class 1 at 8 VA, it offers highly accurate performance that meets the most demanding market requirements.

The METSECT transformer complies with IEC 61557-2 for its accuracy class and is designed to operate over a wide temperature range, ensuring consistent operation even in extreme environmental conditions.
