Control remoto RCA aux. iC60 1-2P

Control remoto RCA aux. iC60 1-2P

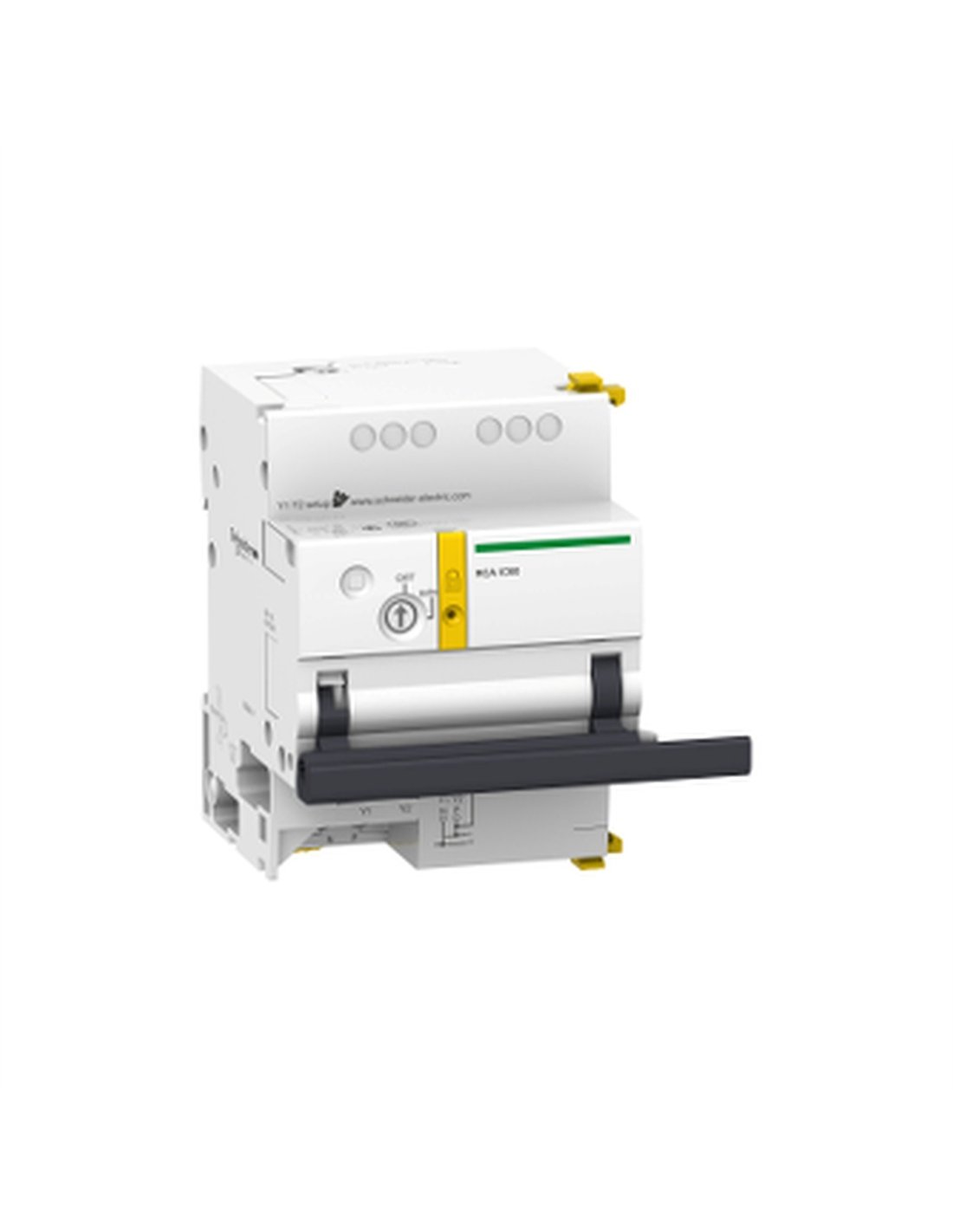

RCA iC60 remote control 230V AC 1A 400V IP20

Reference IMPO A9C70112

Available

€170.76

VAT included

RCA iC60 1-2P remote control from the Acti 9 range. Designed for auxiliary control, it operates at 230 V AC with a consumption of 1 W. Fixed mounting on DIN rail, with IP20 protection rating and electrical durability of 10,000 cycles.

In stock 10 Items

Email address

Description

The RCA iC60 1-2P aux remote control from the Acti 9 range is an auxiliary device designed to provide efficient and safe control in residential and small business applications. This remote control allows the activation and deactivation of signaling circuits without voltage, operating within a range of 24 to 230 V and with a current of up to 1 A AC. Its robust design and advanced functionality make it an ideal solution for controlling electrical systems.

Among its technical features are:

Control type: Remote control, pulse and sustained, 230 V AC 50/60 Hz.
Input current: 5 mA in both pulse and sustained modes.
Minimum pulse duration:>= 200 ms.
Response time: <500 ms.
Nominal supply voltage: 230 V AC 50/60 Hz.
Power consumption: 1 W.
Electrical durability: 10,000 cycles.
Protection rating: IP20, IP40 for modular enclosed cable type.
Operating temperature: -25 to 60 °C.
Mounting: Fixed on DIN rail.

The RCA iC60 is compatible with various circuit configurations and offers locking options for added security, making it a versatile and reliable tool for controlling electrical installations.

Product Details

EAN	3606480097942
Manufacturer	SCHNEIDER
Reference	SCHNEIDER A9C70112

In stock 10 Items

Reviews (0)

No reviews

GPSR

Fabricante	Schneider Electric España, S.A.
Dirección postal	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico	[email protected]
Teléfono	+34 930289900
Referencia	IMPO A9C70112
EAN	3606480097942
