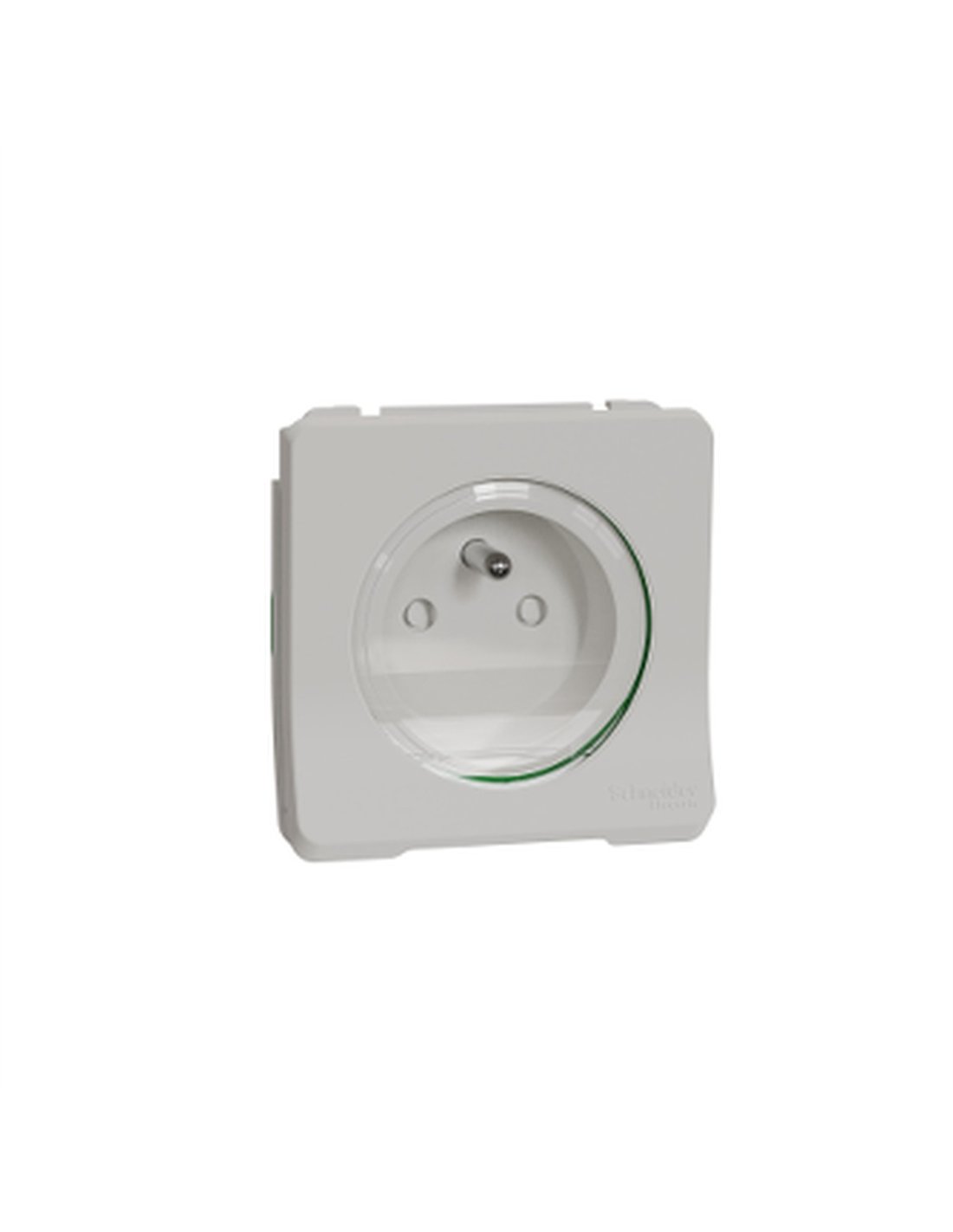

The Mureva Styl 2P+TTF quick-connect IP55 socket in white is a socket-outlet mechanism designed to offer a safe and efficient solution for both indoor and outdoor use. Its 2P+E output pole configuration with shutters ensures a reliable connection, while its earth pin and the French output standard guarantee compatibility with various electrical installations. This device, manufactured from high-quality materials such as polycarbonate and polypropylene, exhibits remarkable resistance to chemical agents and adverse environmental conditions.
- Mounting: Flush, surface
- Rated current: 16 A
- Rated operating voltage: 250 V AC
- Number of power outlets: 1
- Protection rating: IP55
- IK protection rating: IK08
- Flame resistance: Self-extinguishing at 650 °C (IEC 60695-2-1)
- Operating ambient temperature: -5…40 °C
- Capacity of Connection: 1...2.5 mm² for rigid, stranded, and flexible cables. Dimensions: 71 mm (height) x 71 mm (width) x 47 mm (depth). This device is ideal for applications requiring high strength and durability, ensuring optimal performance under various operating conditions.
