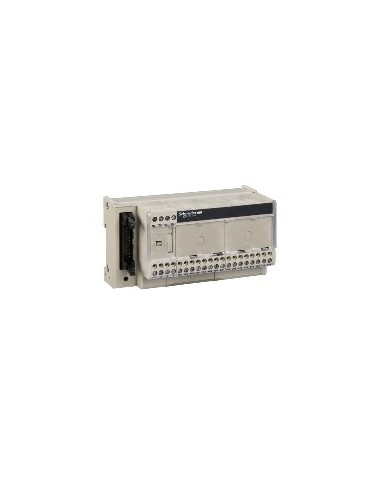

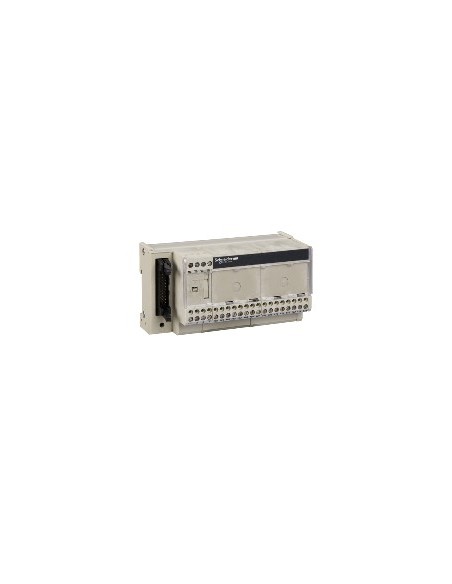

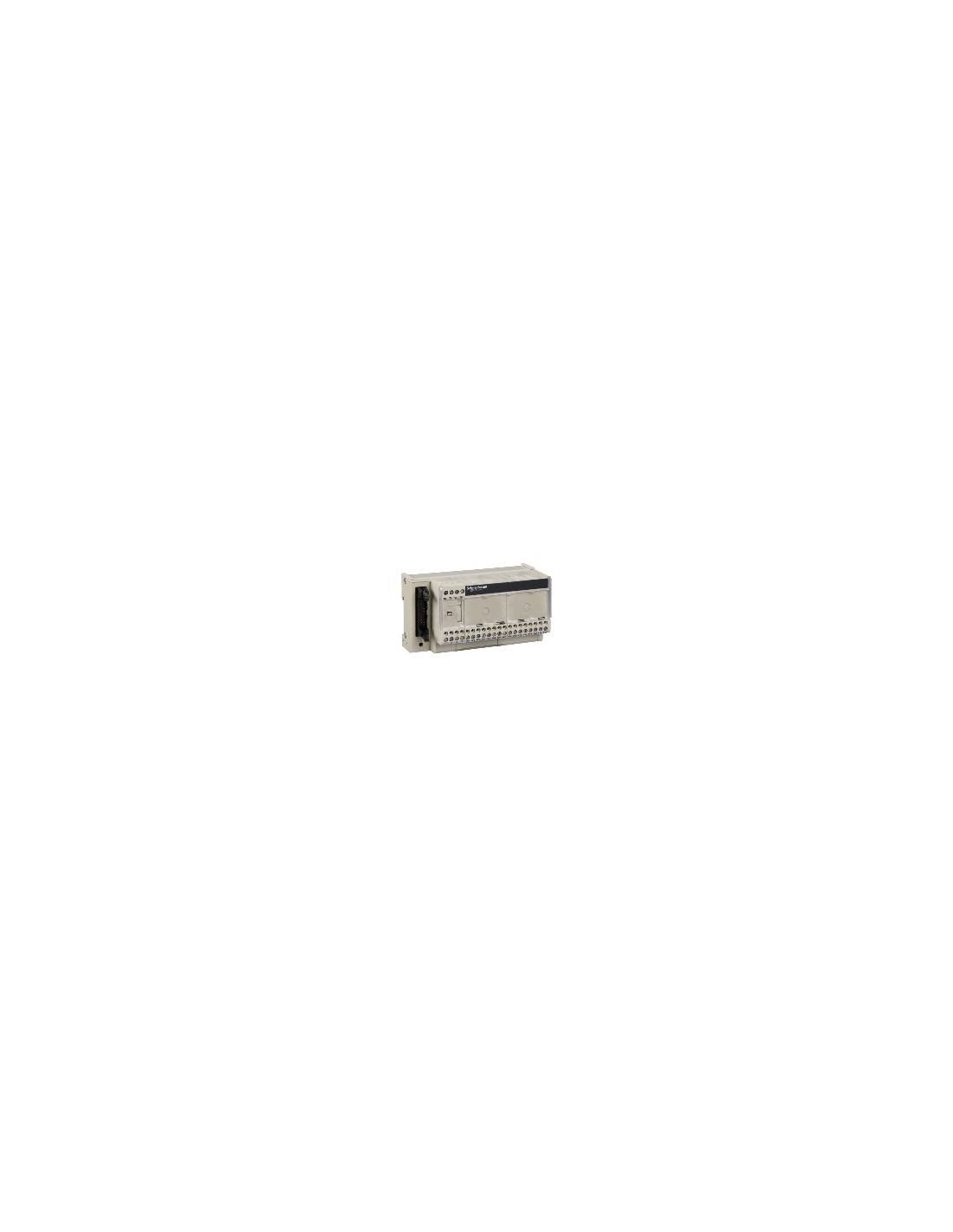

Passive I/O Base 16 Channels Modicon Atrium

Passive discrete I/O base for Modicon Atrium systems, with 16 independent channels. Designed for device connection via screw terminals, compatible with 35 mm DIN rail. DC power supply 19...30 V, internal 2 A fuse, maximum current per channel 0,5 A. IP41 protection rating, resistant to shocks, vibrations, and electrostatic discharges. Complies with IEC 61131-2, IEC 60068, and IEC 61000 standards. Manufactured with materials resistant to incandescent filaments up to 750 °C. Weight: 0,274 kg, width: 125 mm.

Technical Features

• Number of channels: 16
• Terminals per channel: 1
• Rated supply voltage: 19...30 V (in accordance with IEC 61131-2)
• Power supply type: DC
• Connections - terminals: Screw terminals, suitable for flexible and solid wires with cross-section 0,09...2,5 mm² (AWG 28...AWG 12)
• Status LED: On, state 1, green wire type
• Short-circuit protection: Internal 2 A, 5 x 20 mm, fast-blow fuse
• Connector type: HE-10
• Number of pins: 20 pins
• Mounting method: Clip-on (symmetrical 35 mm DIN rail) or screw mounting (solid hole + mounting kit)
• Maximum current: 1,8 A
• Current per channel: 0,5 A
• Fuse voltage drop: 0,3 V
• Rated insulation voltage: 2000 V
• Protection rating IP: 41 (in accordance with IEC 60529)
• Flame resistance: 750 °C (in accordance with IEC 60695-2-11)
• Shock resistance: 15 gn for 11 ms (in accordance with IEC 60068-2-27)
• Vibration resistance: 2 gn (f = 10…150 Hz) (in accordance with IEC 60068-2-6)
• Electrostatic discharge resistance: 4 kV (contact) and 8 kV (air), level 3 (in accordance with IEC 61000-4-2)
• Immunity to radiated fields: 10 V/m (26 MHz to 1 GHz) (in accordance with IEC 61000-4-3, level 3)
• Surge immunity: 2 kV, level 3 (in accordance with IEC 61000-4-4)
• Operating ambient temperature: -5…60 °C (in accordance with IEC 61131-2)
• Storage ambient temperature: -40…80 °C (in accordance with IEC 61131-2)
• Contamination degree: 2 (in accordance with IEC 60529)
• Torque: 0,6 N·m, clamping capacity: flat Ø 3,5 mm
• Width: 125 mm
• Product weight: 0,274 kg
• Certifications: LROS, CSA, UL, BV, GL, DNV generator
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Proactive compliance (outside the scope of EU RoHS regulation)
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: X
• Waste electrical and electronic equipment (WEEE): Must be disposed of according to specific EU waste collection system
