trafo nucleo abierto 600/5A 5VA cl.1
trafo nucleo abierto 600/5A 5VA cl.1

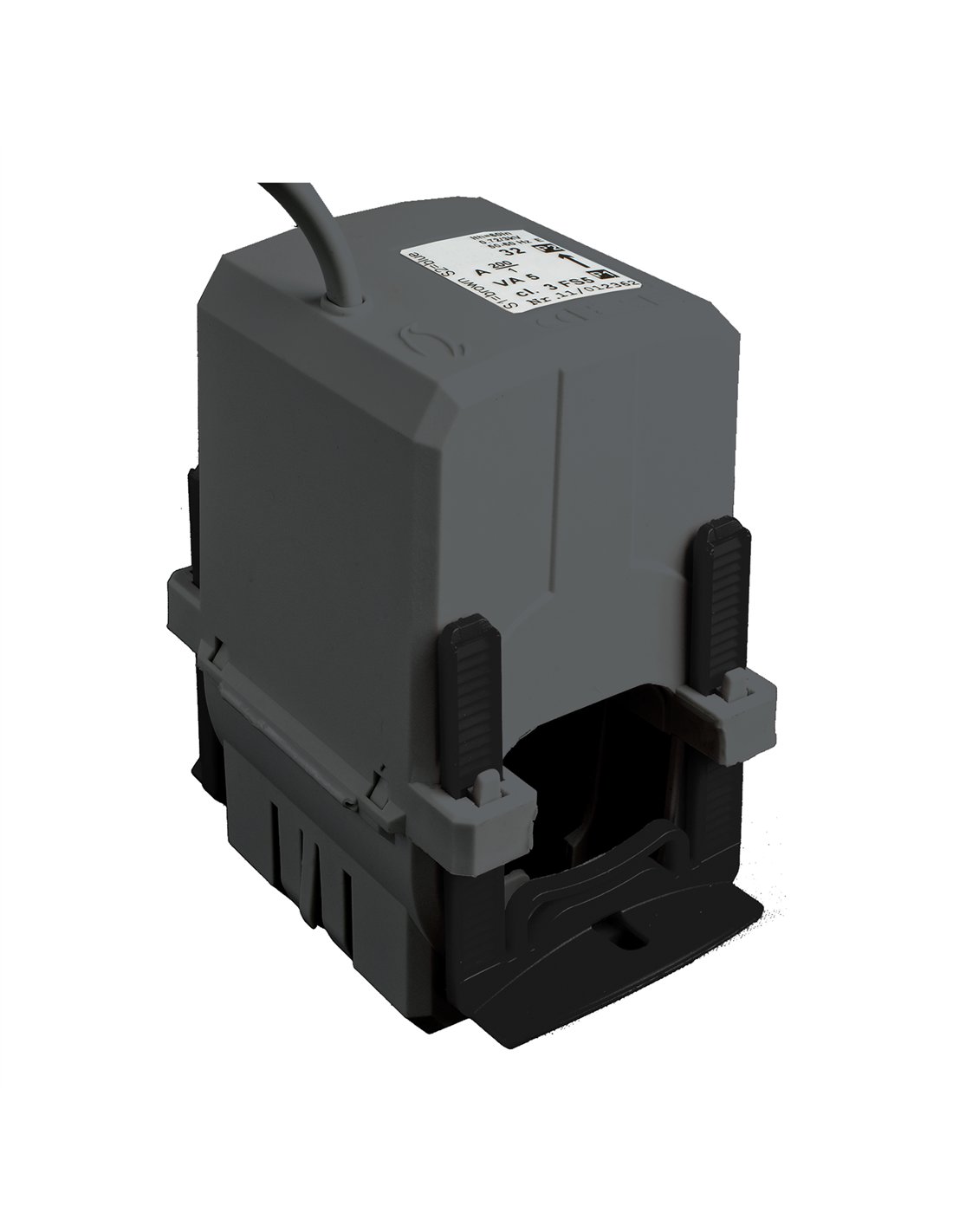

POWERLOGIC 600A/5A open core current transformer, accuracy class 1, compact

IMPO METSECT5HG060
Available
€167.78
VAT included
The PowerLogic Type HG open-core current transformer is ideal for diverse applications, offering a compact design that accommodates various conductors. Its tropicalized rating makes it suitable for harsh environments, while its high accuracy and easy installation facilitate the modernization of electrical systems.
6 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The PowerLogic Open Core Current Transformer - Type HG is a versatile and efficient solution for various electrical applications. Designed to handle rated currents up to 600 A and with a 5 A output, this transformer accommodates different conductor sizes thanks to its compact design. Its tropicalized classification makes it suitable for operation in extreme environmental conditions, guaranteeing reliable performance in challenging environments.

  • Product Type: Current Transformer
  • Rated Current: 600 A
  • Secondary Current: 5 A
  • Accuracy Class: Class 1 at 5 VA
  • Turns Ratio: 600/5
  • Operating Temperature: -5…50 °C
  • Storage Temperature: -25…70 °C
  • Rated Operating Voltage: <720 V 50 Hz
  • Rated Insulation Voltage: 3 kV 50 Hz for 1 minute
  • Mounting Method: Clip-on
  • External Dimensions: 59.2 mm (width) x 96.4 mm (height) x 89.2 mm (depth)
  • Electrical insulation class: Class E
  • Standards met: DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414

Product Details

EAN 3606489608231
Reference IMPO METSECT5HG060
Rated current (A) 600
6 Items

Reviews (0)

No reviews

GPSR

Fabricante Schneider Electric España, S.A.
Dirección postal Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico [email protected]
Teléfono +34 930289900
Referencia IMPO METSECT5HG060
EAN 3606489608231
