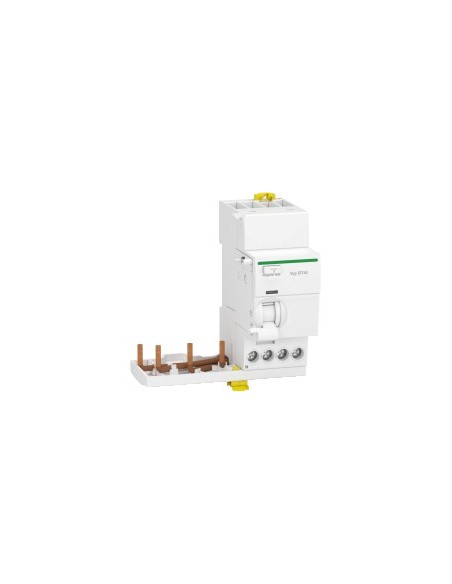

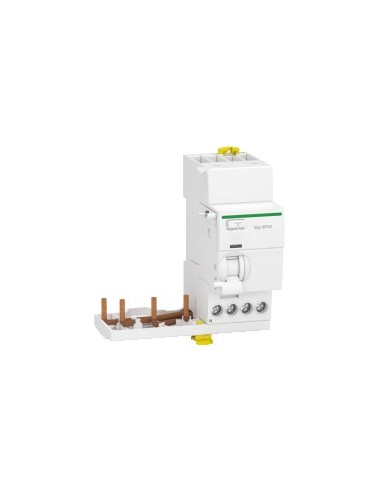

Acti9 iC40 3P+N 40A 300mA Vigi Module

Vigi module from the Acti9 range, designed for protection against current leakage in single-phase or three-phase electrical installations with neutral. Installed at the output of the system, it provides instantaneous protection against AC-type residual currents with a sensitivity of 300 mA.

Technical Features

• Number of poles: 3P + N
• Neutral position: Left
• Rated current [In]: 40 A
• Nominal operating voltage [Ue]: 400 V AC 50 Hz
• Nominal insulation voltage [Ui]: 440 V AC 50/60 Hz
• Surge voltage withstand [Uimp]: 4 kV
• Earth leakage sensitivity: 300 mA
• Protection delay: Instantaneous
• Protection class: Type AC
• Tripping technology: Voltage-independent
• Supply frequency: 50 Hz
• Protection degree IP: IP20
• Connections: Lower tunnel terminal (1…16 mm² rigid, 1…10 mm² flexible)
• Cable stripping length: 14 mm
• Tightening torque: 2 N·m
• Height: 99.5 mm
• Width: 93 mm
• Depth: 74 mm
• Color: White
• Mechanical durability: 20000 cycles
• Electrical durability: 10000 cycles
• Operating ambient temperature: -5…60 °C
• Storage ambient temperature: -40…85 °C
• Maximum operating altitude: 2000 m
• Contamination degree: 3
• Relative humidity: 95 % at 55 °C
• Standards: EN/IEC 61009-2-1
• On-site indicators: Error indication
• Mounting support: DIN rail
• Electrical connection to MCB: Screw terminals
• 9 mm steps: 4
• Certifications: CE, NF
• Sustainable offering status: Green Premium product
• EU RoHS Directive: Compliant
• REACH Regulation: No SVHC
• RoHS exemptions: Yes
• China RoHS regulation: Not applicable
• Waste electrical and electronic equipment (WEEE): Disposal according to specific system in EU
• Halogen presence: No halogens
