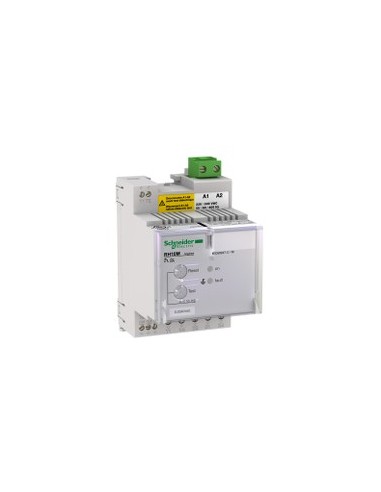

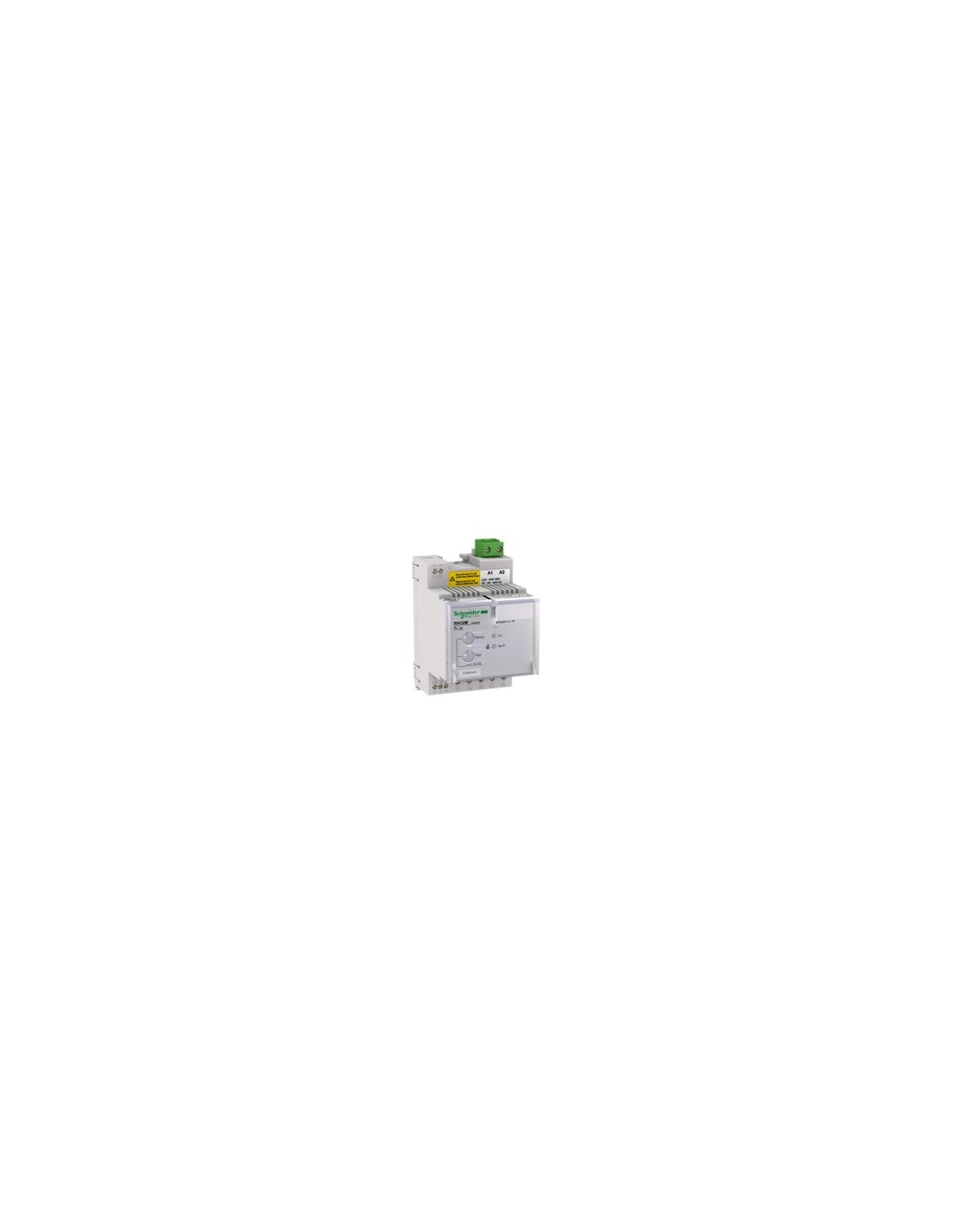

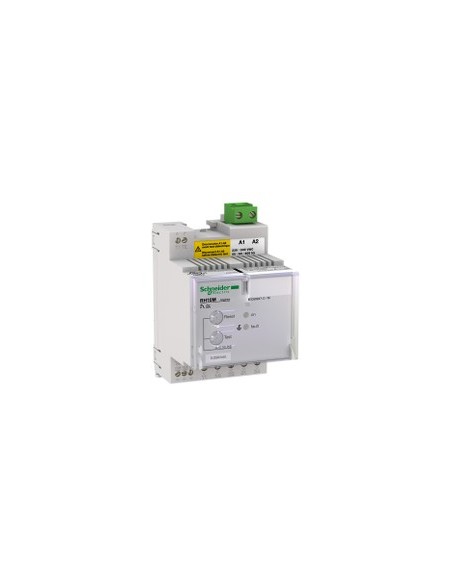

Differential relay type A 0.03 A DIN rail

Type A differential relay with a fixed sensitivity of 0.03 A, designed for protection against residual currents in electrical installations by DIN rail mounting. It acts instantaneously against current leaks, compatible with open and closed type A toroidal transformers of the Vigirex TOA, Vigirex A and Vigirex L ranges. It works with power voltage 220-240 V AC, 50/60 Hz, and supports voltage peaks up to 8 kV. Operating in temperature ranges from -35 to 70 °C, with IP40 protection degree on the front face.

Technical characteristics

• Type of ground leak protection: Type A
• Leak current: 0.03 A
• Adjustment type: On/off
• Differential shot timing type: Instant
• Power voltage assigned: 220...240 V AC 50/60 Hz 55...110 %
• Power consumption: 4 VA
• Network voltage: 1000 V AC (50/60 Hz and 400 Hz)
• Ground connection system: TN-S, IT, TT
• Voltage peak resistance: 8 kV
• Reset: Manual
• Monitoring: Electronic components - cable type: continuous
• Internal ground leakage current measurement, range: 80...100 %
• Inviolability of adjustments: Protected by sealable cover
• Degree of IP protection: IP40 (front face), IP30 (side), IP20 (terminals)
• Level of protection IK: IK07
• Overvoltage category: IV
• Electrical shock protection class: Class II
• Electromagnetic compatibility: Conducted and irradiated emissions (Class B), immunity to RF, DSU, overvoltage and vibration
• Operating ambient temperature: -35...70 °C
• Storage ambient temperature: -55...85 °C
• Relative humidity: 95 % at 55 °C
• Degree of contamination: 3
• Weight: 0.3 kg
• Dimensions: 54 mm (width) x 81 mm (height) x 74 mm (deepness)
• Mounting bracket: Rail DIN
• Number of steps: 6
• Connections: Screw terminals for flexible and rigid cables, with specific ranges per function
• Tightening torque: 0,25 N·m to 0,6 N·m according to terminal
• Peeled cable length: 5 mm to 8 mm depending on connection
• Sustainable supply status: Product Green Premium
• EU RoHS Directive: As per
• No mercury: Yes
• No PVC: Yes
