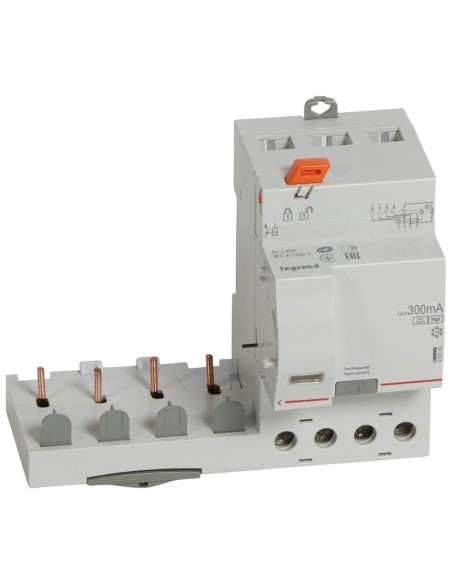

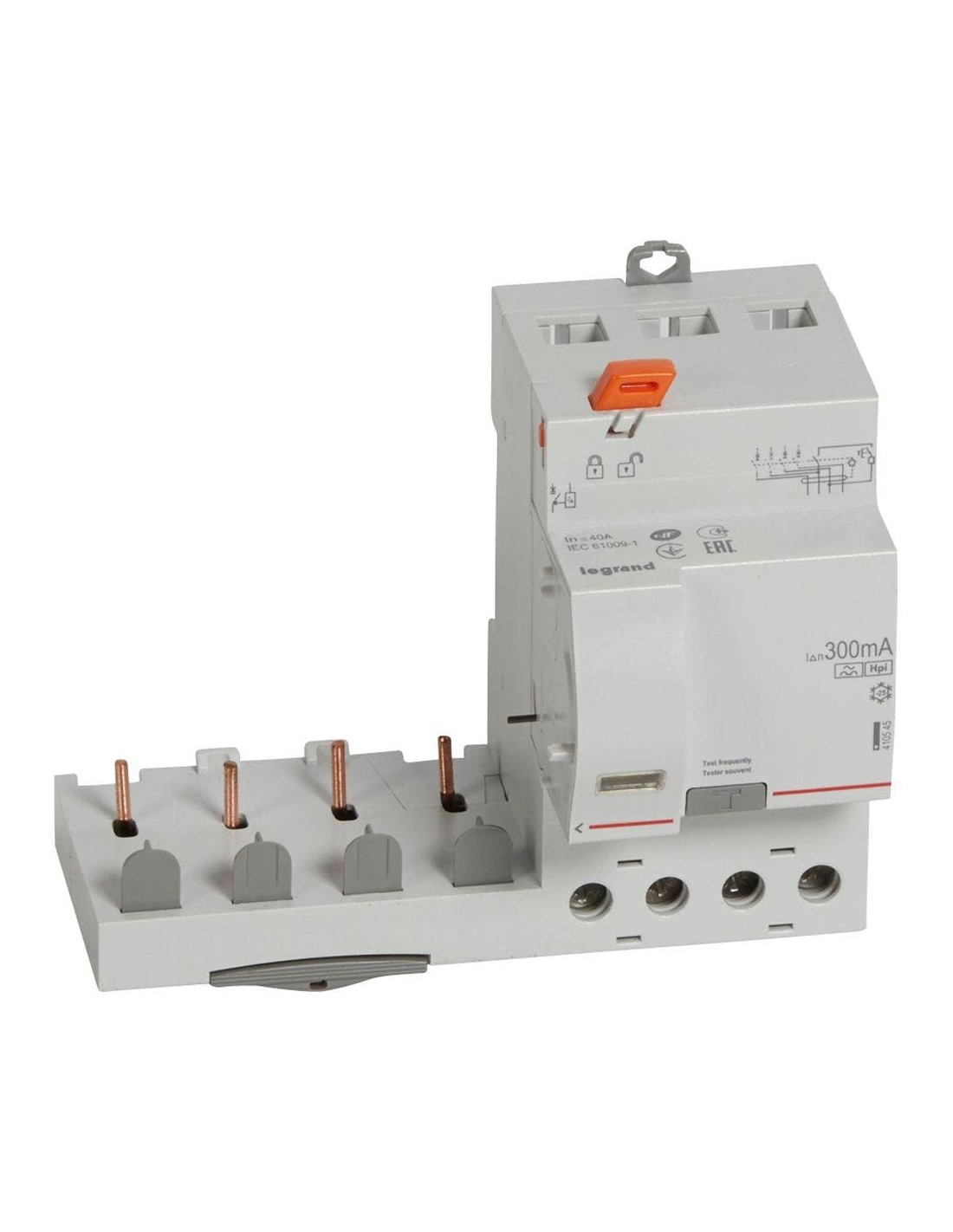

4-pole differential block 40 A 300 mA type F

4-pole differential block 40 A 300 mA type F

4-pole differential block 40 A 300 mA type F

Available In stock 3 Items

Reference LEGRAND 410545

€214.64

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

4-pole differential block rated at 40 A for a nominal voltage of 230/400 V. Detects 300 mA type F leakage currents at 50 Hz. Includes protection against nuisance tripping and a padlock locking system. Nominal insulation of 500 V and IP20 protection rating.

Description

Adaptable DX³ 4-pole differential block designed to provide protection to people against direct and indirect contact and electric shock risks. It also prevents fires caused by persistent earth fault currents in electrical installations.

Technical features

Nominal voltage: 250...440 V
Nominal current: 40 A
Nominal fault current: 0.3 A (non-adjustable)
Maximum delay time: 0 ms
Number of poles: 4
Leakage current type: F
Frequency: 50 Hz
Nominal insulation voltage Ui: 500 V
Maximum impulse voltage rating Uimp: 4 kV
Connection capacity for rigid cable: 1.5...35 mm²
Connection capacity for multiple conductors: 1.5...25 mm²
Protection against nuisance tripping: Yes
Padlock locking system: Yes
Protection rating (IP): IP20
Pollution degree: 2
Ambient temperature during operation: -25...70 °C

This device guarantees an immediate response to insulation faults, ensuring the safety of people and the integrity of the installation. Its design with a padlock locking system facilitates maintenance and safety during service operations.

Product Details

Eléctrico

Nominal voltage (V)	230/400 V
Rated current (A)	40

Protección

Protection	IP20

Otras

Frequency	50
Sensitivity	300 mA
EAN	3245064105453
Manufacturer	LEGRAND
# Elements	4
Reference	LEGRAND 410545

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 410545
EAN	3245064105453

Advertencias de seguridad

No

In stock 3 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews

12 other products in the same category:

Vigi iC60 2P 63A 300mA-S AC

Available

Differential

SCHNEIDER ACTI 9 63A 300mA-S AC 2P Vigi Block, IP20, DIN rail mounting

IMPO A9V15263

The Vigi iC60 2P 63A 300mA-S AC from the Acti 9 range is a Vigi block with 300 mA earth leakage sensitivity. Designed for AC networks, it offers selective protection and is compatible with DIN rail mounting systems.

Acti9 iDT40 Vigi 1P+N 25A 300mA AC Type

New

Available

Differential

Acti9 iDT40 Vigi 1P+N 25A 300mA AC Type

IMPO A9Y63625

AC type Vigi block, 1P+N, 25A, 300mA, nominal voltage 230V AC 50Hz, with instantaneous residual current protection, DIN rail mounting, IP20 protection rating, compatible with Acti9 iDT40 range, 4kV voltage surge resistance, designed for electrical installations in industrial and commercial environments.

Differential protection relay RH99M 54 mm 380-415 V

New

Available

Differential

Differential protection relay RH99M 54 mm 380-415 V

IMPO 56174

Differential protection relay type RH99M, designed for ground leakage current detection in AC 380–415 V systems, 50/60 Hz. It offers 9 configurable sensitivity settings between 0.03 A and 30 A, with instant timing for 0.03 A and up to 4.5 s for higher values. Compatible with toroidal transformers type A and open.

INT. DIFERENCIAL IID 4X80A 30MA SI

Available

Differential

IID 4X80A 30MA SI differential switch - SCHNEIDER: SI, 80A, 30mA, 4 poles.

IMPO A9R31480

The INT. DIFERENCIAL IID 4X80A 30MA SI is an electrical protection device designed to detect and prevent current leakage. With a capacity of 80A and a sensitivity of 30mA, it ensures safe operation in electrical installations.

Acti9 iID 2P 25A 30mA AC Residual Current Circuit Breaker

New

Available

Differential

Acti9 iID 2P 25A 30mA AC Residual Current Circuit Breaker

IMPO A9R11225

AC type residual current circuit breaker, 2 poles, 25 A, 30 mA sensitivity, designed for earth leakage protection in single-phase installations. Operates on AC networks 220-240 V, 50/60 Hz, with instantaneous tripping independent of voltage. Resistant to voltage surges up to 6 kV, with conditional short-circuit current rating of 10 kA. Mounting on DIN...

Vigi iC60 2P 63A 300mA A

Available

Differential

Vigi ACTI 9 63A 300mA 2P block with IP20 protection and DIN rail mounting

IMPO A9V24263

The Vigi iC60 2P 63A 300mA A from the Acti 9 range is a Vigi block with instantaneous earth leakage protection. Compatible with AC systems, it offers a nominal voltage of 230/400 V and an IP20 protection rating.

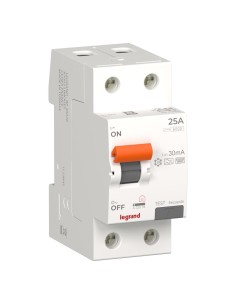

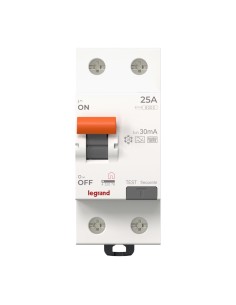

Differential switch 2P 25 A 30 mA type F
