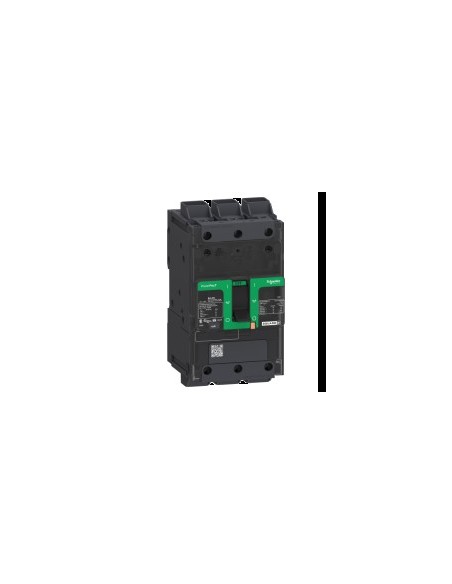

PowerPact BG 60A 3P 35kA Automatic Circuit Breaker

PowerPact BG 60A 3P 35kA automatic circuit breaker, designed to protect electrical circuits in industrial and commercial installations. Features manual operation via handle, thermal-magnetic TM-D technology, and a breaking capacity of up to 35 kA at 480 V AC. Suitable for currents above 0.1 A and certified for HACR applications.

Technical Features

• Number of poles: 3P
• Rated current: 60 A
• Pole protection description: 3t
• Control type: Handle
• Breaking capacity code: G
• Breaking capacity: 65 kA at 208/240 V AC 50/60 Hz, 35 kA at 480/600 V AC 50/60 Hz, 20 kA at 250 V DC
• Rated operating voltage: 525 V AC 50/60 Hz
• Service breaking capacity: 65 kA at 220...240 V AC 50/60 Hz, 35 kA at 380...415 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Control unit: TM-D
• Tripping technology: Thermal-magnetic TM-D
• Mechanical durability: 15000 cycles
• Electrical durability: 10000 cycles at 440 V In
• Connection pitch: 27 mm
• AWG size: AWG 6...AWG 2/0 (aluminum/copper), AWG 14...AWG 3/0 (rigid or stranded, aluminum/copper)
• Torque: 5 N·m for 2.5…16 mm², 9 N·m for 25…95 mm²
• Number of slots: 1 for auxiliary switch OF, 1 for trip coil MN/MX, 1 for Dakota alarm switch
• Stripping length: 20 mm
• Color: Gray (RAL 7016)
• Height: 137 mm
• Width: 81 mm
• Depth: 80 mm
• Weight: 1.074 kg
• Protection rating IP: IP40 (front cover, state 1)
• IK protection rating: IK07
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Maximum operating altitude: 2000 m without derating, 5000 m with restrictions
• Application: HACR rated
• Standards: EN/IEC 60947-5-1, UL 489, CSA C22.2 No 5, NMX J-266, GB 14048.2
• Certifications: UL, IEC, CCC, CSA Generator, NOM
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• PVC-free: Yes
• Halogen-free product
