INT.AUT Schneider iC60N 3P 50A D 6000A Acc

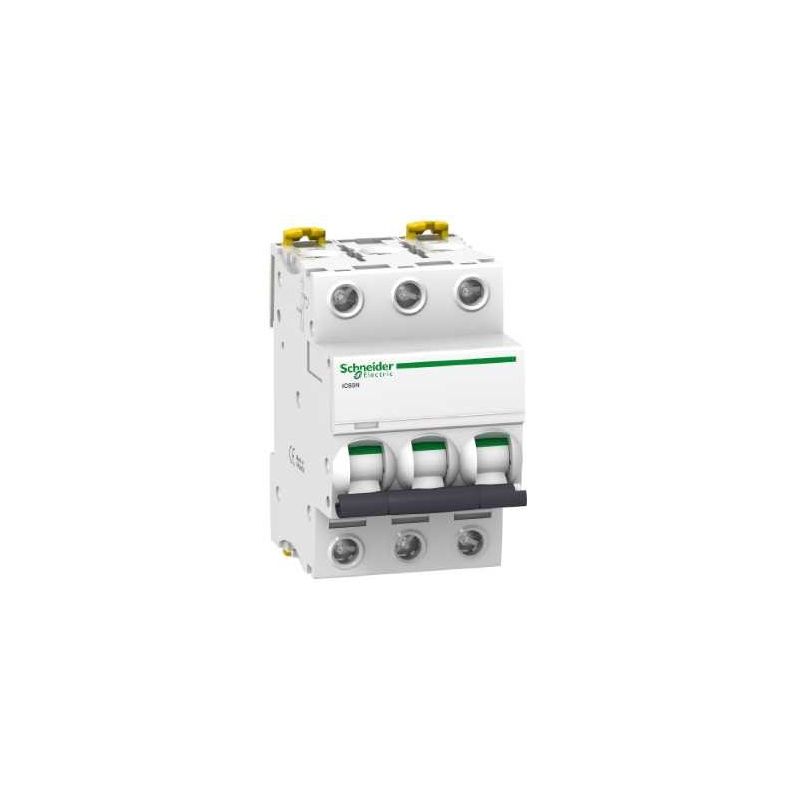

 Automatic circuit breaker iC60N 3P 50A curve-D
INT.AUT Schneider iC60N 3P 50A D 6000A Acc
 Automatic circuit breaker iC60N 3P 50A curve-D

Automatic circuit breaker iC60N 3P 50A curve-D

IMPO A9F75350
Available
€145.76
VAT included
iC60N Acti 9 thermal-magnetic circuit breaker, 3P, 50A, curve D, 50/60 Hz, IP20, Thermal-magnetic, Suitable for sectioning, Contact position indicator, Type of control: Handle, Local signaling: Trip indicator, Mode Mounting Bracket: Fixed, Mounting Bracket: DIN Rail, Earth Leakage Protection: Freestanding Block, 85x54x78.5mm, 0.375kg, White. Breaking capacity: 20 kA Icu according to EN 60947-2, 220...240 V AC 50/60 Hz, 10 kA Icu according to EN 60947-2, 125...180 V DC, 10 kA Icu of according to IEC 60947-2, 380...415 V AC 50/60 Hz, 36 kA Icu according to EN 60947-2, 12...133 V AC 50/60 Hz, 6 kA Icu according to IEC 60947 -2, 440 V AC 50/60 Hz, 6 kA Icu according to EN 60947-2, 440 V AC 50/60 Hz, 6000 A Icn according to IEC 60898-1, 400 V AC 50/60 Hz, 36 kA Icu conforming to IEC 60947-2, 12...133 V AC 50/60 Hz, 10 kA Icu conforming to IEC 60947-2, 125...180 V DC, 10 kA Icu conforming to EN 60947- 2, 380...415 V AC 50/60 Hz, 20 kA Icu conforming to IEC 60947-2, 220...240 V AC 50/60 Hz, 6000 A Icn conforming to EN 60898-1, 400 V AC 50/60 Hz, utilization category: category A according to IEC 60947-2, category A according to EN 60947-2, suitable for isolating: yes according to IEC 60898-1, yes according to EN 60947- 2, yes according to EN 60898-1, yes according to IEC 60947-2, standards: EN 60898-1, IEC 6 0898-1, IEC60947-2, EN60947-2.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Product Details

Curve D
EAN 3606480081057
Manufacturer Schneider
No. of poles 3P
Reference SCHNEIDER A9F75350
Rated current (A) 50 A
10 Items

Reviews (0)

No reviews

GPSR

Fabricante Schneider Electric España, S.A.
Dirección postal Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico [email protected]
Teléfono +34 930289900
Referencia IMPO A9F75350
EAN 3606480081057
