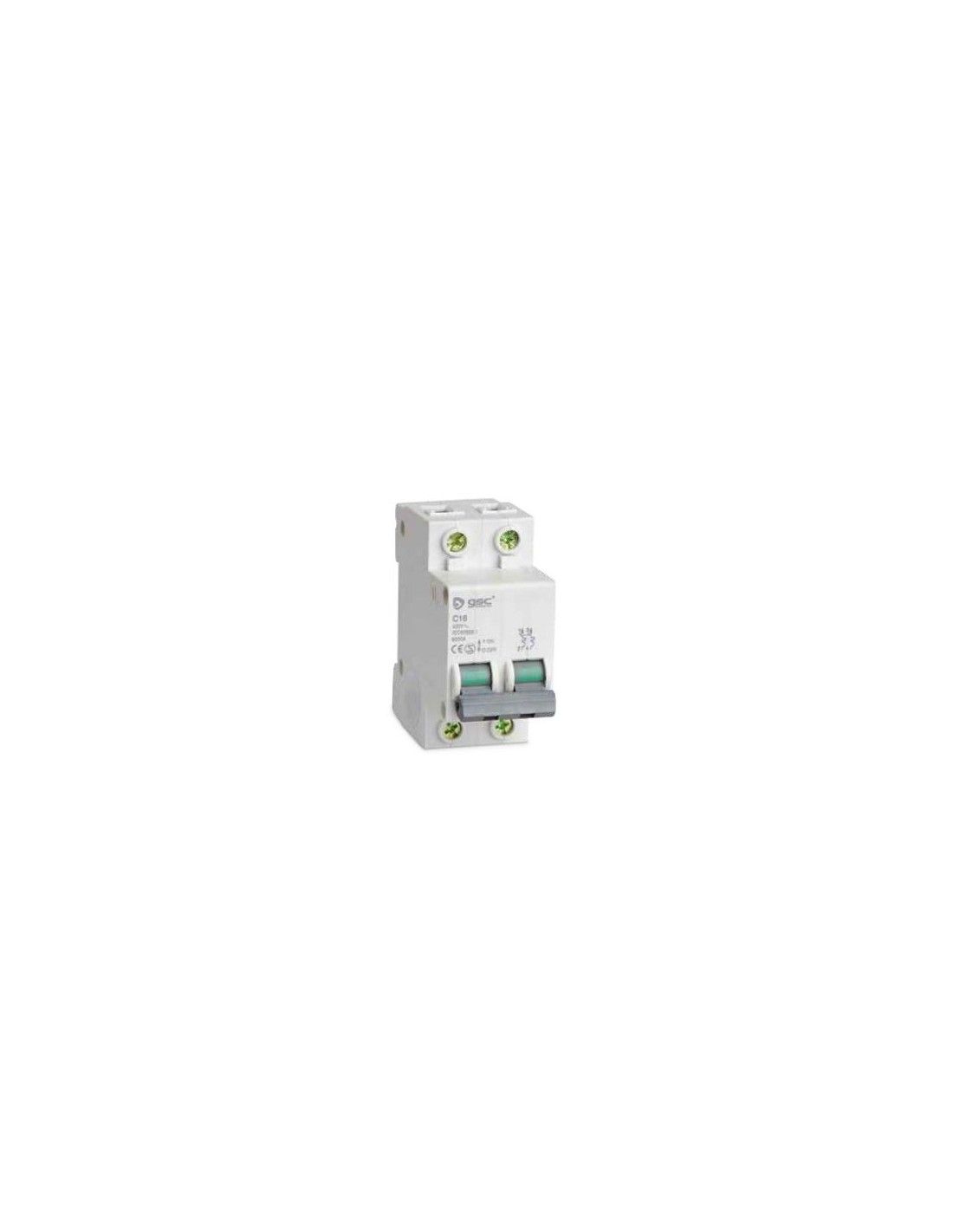

Circuit breaker 2P 25A GSC 0403659

Circuit breaker 2P 25A GSC 0403659

2P 25A GSC 0403659 circuit breaker

1 Reviews

Available In stock 232 Items

Reference GSC 000403659

€5.23

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Circuit breaker 2P

25A

Manufacturer: GSC

Description

Circuit breaker 2P 25A GSC 0403659

Voltage range (VAC): 230/400.

Isolation voltage: (VAC): 500.

Power of court to Icn (KA): 6.

Tripping curve: C.

Degree of protection: IP20, with conductors connected.

Nº of maneuvers power: 4.000.

Capacity connection cable: 0.75-25mm (flexible cable)/0.75-35mm (rigid wire).

Ideal for residential facilities and tertiary. Protects the installation against short-circuits and overloads, its use is also suitable to control and maneuver.

Product Details

Dimensiones

Weight (kg)	0,178

Eléctrico

Rated current (A)	25

Otras

Curve	C
EAN	8433373036598
Manufacturer	GSC
Range	Residencial
No. of poles	2P
Reference	GSC 000403659

Información legal

Fabricante	GSC
Dirección	Calle Corts Valencianes, 10, 12549 Betxí (Castellón), 12549 Betxí, ES
Email	[email protected]
Teléfono	+34 964623022
Referencia	GSC 000403659
EAN	8433373036598

In stock 232 Items

Downloads

Product sheet Store PDF Download

Reviews (1)

1 Reviews

Instalación sencilla

Encaja bien y funciona correctamente en la instalación.

By Alicia Jiménez on 2026-08-07
