NSX 25A 4P 50kA ELINK automatic switch - SCHNEIDER: SCHNEIDER, IP40, 440V AC

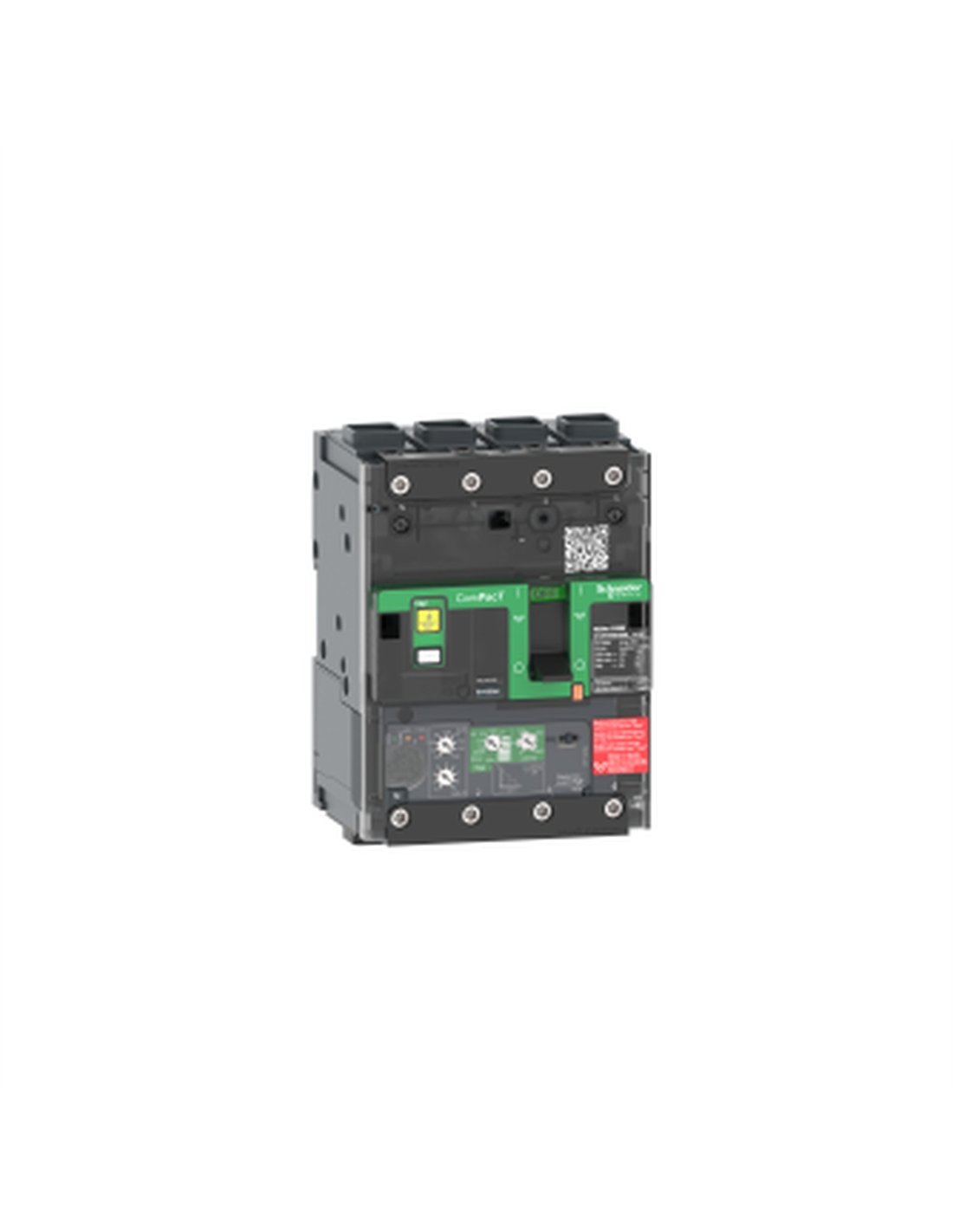

The NSXm100N 50kA AC 4P 25A 4.1 ELINK earth leakage circuit breaker from the new generation ComPacT range is an advanced solution for electrical protection in applications with currents above 0.1 A. Designed to deliver exceptional performance, this device is part of the Compact NS KIT range and is characterized by its robustness and reliability.

With a rated current of 25 A at 40 °C and a rated operating voltage of up to 440 V AC, the NSXm100N features four poles (4P) and a breaking capacity of up to 90 kA Icu under specified conditions. Its electronic trip unit technology and Micrologic 4.2 control unit ensure a fast and accurate response to overload or short-circuit situations.

This circuit breaker is designed for fixed mounting and can be installed horizontally or vertically.

• Rated current: 25 A at 40 °C
• Rated operating voltage: 440 V AC 50/60 Hz
• Breaking capacity: 90 kA Icu at 220...240 V AC
• Earth leakage protection: Class A and AC
• Mechanical durability: 20,000 cycles
• Operating temperature: -25…70 °C
• Protection rating: IP40
• Weight: 1.63 kg
• Dimensions: 108 mm x 144 mm x 80 mm
• Connections: Terminals from 2.5…70 mm²
