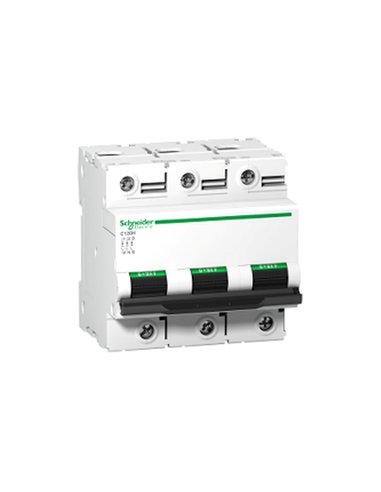

Automatic switch C120 H SCHNEIDER 3P 100A curve D, 15000A cut-off, IP20

The Dardo Plus INT. THERMOMAGNETIC C120H 3X100A D-CURVE miniature circuit breaker, part of the Acti 9 series, is designed for applications with currents above 0.1 A. This model has three poles, offering a nominal current of 100 A at 30 °C, and is ideal for alternating current (AC) networks.

The thermal-magnetic tripping technology ensures effective protection, with a breaking capacity of up to 15,000 A Icn in a range of 230 to 400 V AC and 50/60 Hz, complying with EN/IEC 60898-1.

Technical features include:

• Main frequency: 50/60 Hz
• Nominal operating voltage: up to 375 V DC and 440 V AC
• Breaking capacity in service: 7,500 A at 50%
• Limitation class: 3
• Mechanical durability: 20,000 cycles
• Electrical durability: 5,000 cycles
• Protection rating: IP20
• Operating temperature: -30 at 60 °C
• Mounting: 35 mm symmetrical DIN rail
• Weight: 0.615 kg

This switch is a robust and efficient solution for the protection of electrical circuits, ensuring safe operation under various environmental conditions.
