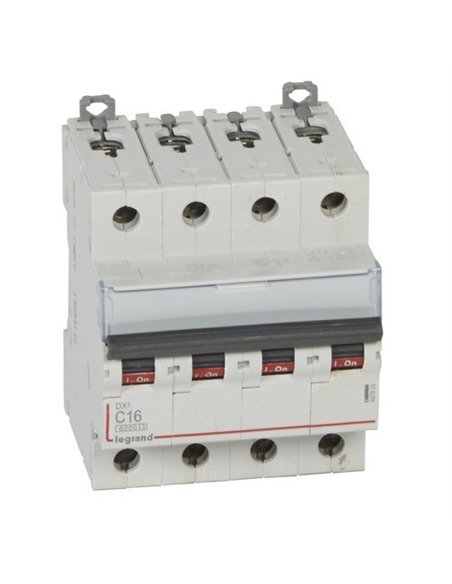

INT.AUT Legrand DX3 4P 16A C 6000A Acc

INT.AUT Legrand DX3 4P 16A C 6000A Acc

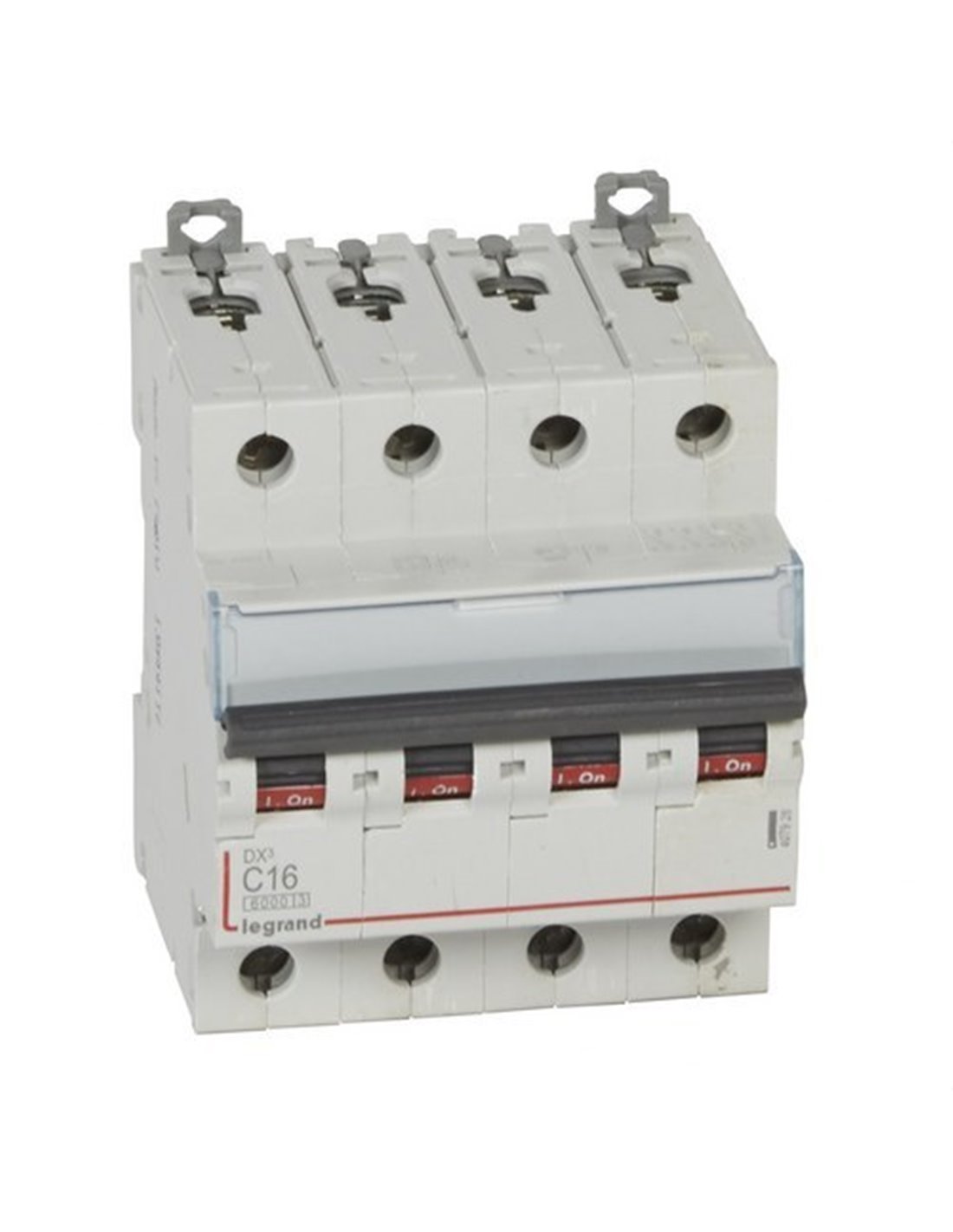

Circuit breaker DX3 6/10kA-C 4P 16A

Protection IP20

Reference LEGRAND 407928

Available

€57.10

VAT included

DX3 6/10KA-C 4-pole 16A circuit breaker. Four-pole 400 V~ - Curve C - Nominal current: 16A - Number of modules: 4. MCB DX³ 6000 - 10 kA - circuit breakers from 1A to 63A - curves C, B and D - Allow connection with single-pole and multi-pole combs Breaking capacity: - 6000 - IEC 60898-1 - 400 V~ - 10 kA - IEC 60947-2 - 400 V~ - Products with N mark (except 1P+N 2 modules and curve B) - They can be equipped with differential blocks , motorized controls and auxiliary control and signaling DX³ - Built-in label holder.

In stock 25 Items

Email address

Product Details

Curve	C
EAN	3245064079280
Manufacturer	LEGRAND
Intensity	16
# Elements	4
No. of poles	4P
Reference	LEGRAND 407928
Protection	IP20
Nominal voltage (V)	380V
High	77,8
Width	70,8
Weight (kg)	0

In stock 25 Items

Reviews (0)

No reviews

GPSR

Fabricante	LEGRAND GROUP ESPAÑA, S.L.
Dirección postal	C
Contacto electrónico	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 407928
EAN	3245064079280
